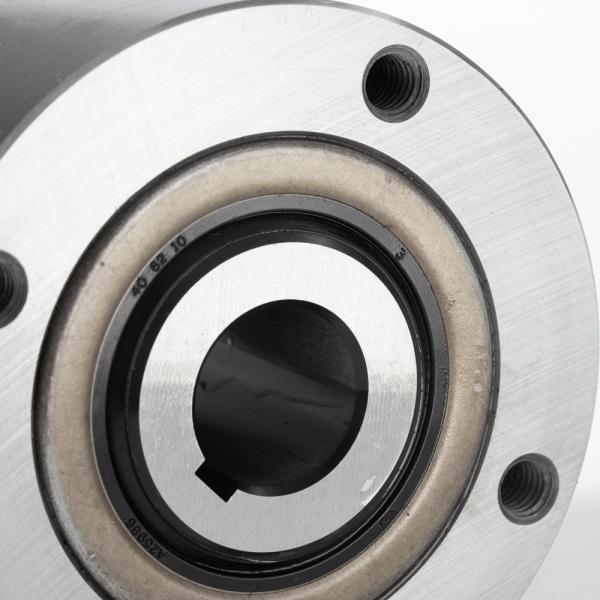

MZ15 MZ17 MZ20 MZ60-50 MZ60-55 Cam Backstop Clutch One Way
MZ15 MZ17 MZ20 MZ60-50 MZ60-55 Cam Backstop Clutch One Way
MZ15 MZ17 MZ20 MZ60-50 MZ60-55 Cam Backstop Clutch One Way
MZ15 MZ17 MZ20 MZ60-50 MZ60-55 Cam Backstop Clutch One Way
MZ15 MZ17 MZ20 MZ60-50 MZ60-55 Cam Backstop Clutch One Way
MZ15 MZ17 MZ20 MZ60-50 MZ60-55 Cam Backstop Clutch One Way
Specifications
Brand Name :
Tianniu
Model Number :
MZ series
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
10000 per month
Delivery Time :
5-10working days
Packaging Details :
Cartons by sea shipping by airplane
Certification :
ISO-9001
Name :
MZ Press Freewheel Cam Clutch Bearing
Material :
GCR 15 Bearing Steel
Type :
One way bearings
Thichness (mm) :
64-180
Torque (Nm） :
0.2-1.27
Weight (Kg) :
1.4-13.2
Bore Size(mm) :
15-70
Description

MZ Cam Clutch Bearing MZ60-50 Backstop One Way Bearing

Production introduction

The shearer is the main equipment of the fully mechanized mining equipment. The shearer is developed from the shearer. The shearer is a large and complex system integrating machinery, electricity and hydraulics. Bad working conditions. If it fails, it will lead to the interruption of the entire coal mining operation, resulting in huge economic losses.

In the long-wall coal mining face, the shearer uses the working mechanism to break the coal body from the coal body (coal crushing) and load it into the working face conveyor (coal loading). The shearer travels (pulls) at a set hauling speed, so that the coal crushing and charging process is carried out continuously. An important part of the shearer is the bearing. The quality of bearings is directly related to production efficiency, so everyone must choose bearings with guaranteed quality

Type MZ is a sealed, sprag type freewheel, bearing supported using two 60..ZZ series grease lubrucated bearings. Units are delivered grease lubricated ready for installation. MZ units are intended as multipurpose, to be used in various applicatoins. A typical mounting arrangement is shown on the following page. The inner race is keyed to the shaft. The inside diameter of the outer race should be used as the mounting register for the connected parts( sprocket, pulley, gear, torque arm...). The mounting spigot should be to g6 tolerance

Item MZ60-50
Material GCr15
Bore dia. 50 mm
Outer dia. 155 mm
Width 102 mm
Torque capacity 2110 N.m
Drag torque 0.98 N.m
Weight 10.2 kg
Package Carton box, wooden box or as your requirements


Products Parameters

Model Capacity
Torque
(Nm)		 Torque
Drag
(Nm)

Over

running
(r/min)

Max.
Inner

Race

Over

running
(r/min)

Max.
Outer

Race

indexing
Max.
(cycle

/min)

Bore Size
Dia

(H7)

Key

way

 A B C PCDD

(M6)

E

 F G

H-M No.

of Tapped x
HolesSize×

Pitch

 S Wt
(kg)
MZ15 186 0.20 2,200 900 150 15 5*2.3 62 68 60 58 47 25 5.5 6*M5*P0.8 10 1.4
MZ17 215 0.20 2,000 800 150 17 5*2.3 66 75 64 64 52 28 6.3 6*M5*P0.8 10 1.8
MZ20 323 0.29 1,900 700 150 20 6*2.8 67 80 65 68 55 30 7.6 6*M6*P1.0 12 2.0
MZ30-22 735 0.39 1,800 500 150 22 6*2.8 82 100 80 88 75 45 8.9 6*M8*P1.25 16 3.7
MZ30-25 735 0.39 1,800 500 150 25 8*3.3 82 100 80 88 75 45 8.9 6*M8*P1.25 16 3.7
MZ30 735 0.39 1,800 500 150 30 10*3.3 82 100 80 88 75 45 8.9 6*M8*P1.25 16 3.7
MZ35 1,080 0.49 1,700 300 150 35 10*3.3 87 110 85 95 80 50 8.7 6*M8*P1.25 16 4.8
MZ45-40 1,620 0.69 1,700 300 150 40 12*3.3 92 125 90 110 95 60 8.4 8*M8*P1.25 16 6.2
MZ45 1,620 0.69 1,700 300 150 45 14*3.8 92 125 90 110 95 60 8.4 8*M8*P1.25 16 6.2
MZ60-50 2,110 0.98 1,600 250 150 50 14*3.8 102 155 100 140 125 80 9.1 8*M8*P1.25 16 10.2
MZ60-55 2,110 0.98 1,600 250 150 55 16*4.3 102 155 100 140 125 80 9.1 8*M8*P1.25 16 10.2
MZ60 2,110 0.98 1,600 250 150 60 18*4.4 102 155 100 140 125 80 9.1 8*M8*P1.25 16 10.2
MZ70-65 3,040 1.27 1,300 250 150 65 18*4.4 105 175 103 162 145 95 8.6 8*M8*P1.25 16 13.2
MZ70 3,040 1.27 1,300 250 150 70 20*4.9 105 175 103 162 145 95 8.6 8*M8*P1.25 16 13.2
