Customized Cemented Carbide Ejector Pins Injection Molding
Customized Cemented Carbide Ejector Pins Injection Molding
Specifications
Brand Name :
PM
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
10 working days
Product material :
tungsten carbide,100% Original Carbide
Product :
Mold Parts
Grade :
MD40A
Application :
For Upper and Lower dies,Stamping and Cutting
Type :
Any Type
Advantage :
Electrochemical corrosion resistance;Hip sintered, high hardness, high wear resistance;Tunable residual stress;
Surface treatment :
Polishing
Usage :
For mould, Stamping Work, Cemented carbide dies,
Description

Stacking Ejector Pins TYPE A-2

Advanced ejector pins machines and technology talented persons guarantee the high output, high quality and high speed production .

High performance cemented carbides for molding；Standard Specification For Square Material and Standard Specifications Of The Rings. Also we can produce the your drawing of ring.

  • 100% raw material;
  • Hip sintered, high hardness, high wear resistance;
  • Tunable residual stress
  • Electrochemical corrosion resistance

Polarization curve (corrosion current reduced, corrosion rate decreased significantly, corrosion resistance improved significantly)

Grade Co% WC Grain size Hardness Density Flexural Strength Fracture Toughness Elastic Modulus Coefficient of Thermal Expansion
HRA HV30 g/cm3 MPa N/mm2 GPa 10-6/℃
MD40B 12 Fine 89.5 1380 14.2 3800 17 470 5.7
MD40C 12 Fine 89.7 1400 14.1 3800 16 470 5.7
MD40A 12 Medium 88.9 1310 14.2 3700 27 470 5.7
MD45A 15 Medium 87.9 1200 13.9 3600 - 430 6.3

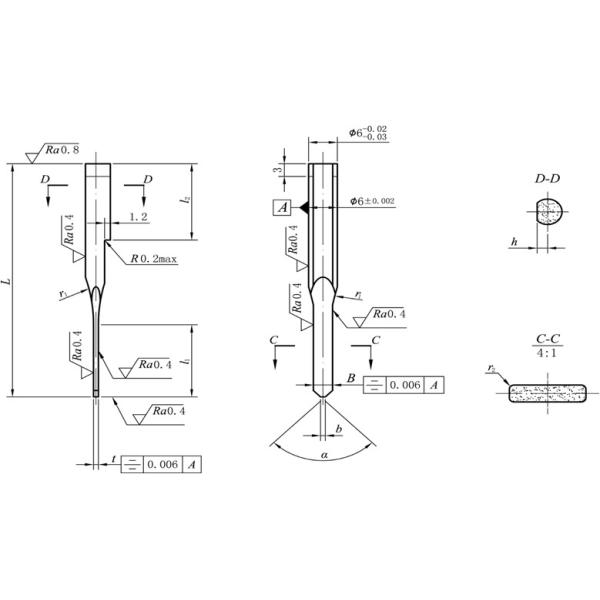

TYPE D
d ±0.002 D±0.002 D1±0.05 L+0.5 +0.3 l1 l2 ±0.02
1.0 5.5 3.5 55,60 18,20 18,20
1.2 5.5 3.5 55,60 18,20 18,20
1.5 5.5 3.5 55,60 18,20 18,20
1.8 6.0 4.0 55,60 18,20 18,20
2.0 6.0 4.0 55,60 18,20 18,20
