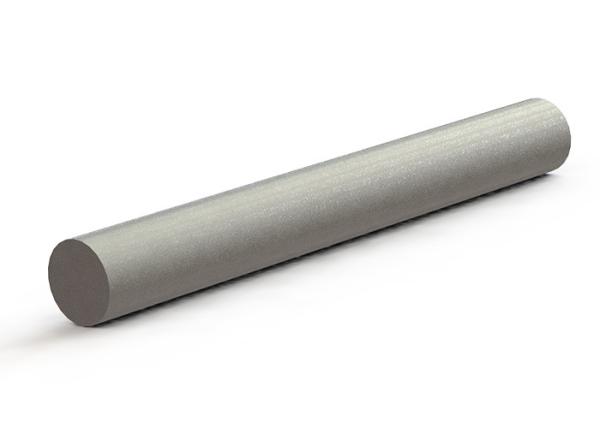

Ungrind Tungsten Carbide Rod Fixed Length For Rough Milling Tools
Ungrind Tungsten Carbide Rod Fixed Length For Rough Milling Tools
Specifications
Brand Name :
PM
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1000000pcs/month
Delivery Time :
1-25 work days
Diameter :
2-42mm
length :
Fixed Length
Co% :
12%
HRV :
92.2
Hardness HV30 :
1700
Density :
14.1
Material :
Tungsten Carbide
Description

Tungsten Carbide Ungrind Fixed Length Rods for Rough-milling tools

Our rods have different grade and right to use on different application; Specially we are produce the Nano Grain carbide (Grain＜0.2µm); Our rods are with high hardness and wear/corrosion resistance, all products with stable quality;

  • 100% raw material;
  • Hip sintered, high hardness, high wear resistance;

l Dimension: diameter from 3-42mm, length 310/330mm;

l Use for Finish milling


Grade Information

Grade Co% Grain Size of WC Hardness

Hardness

 　Density Flexural Strength Fracture
Toughness		 Elastic Mod- ulus Coefficient
of Thermal
Expansion
　 　 　 HRA HV30 　g/cm³ MPa GPa MNm-3/2 0-6/℃
ST25EF 12 Ultra-fine 92.2 1700 14.1 4800 10 470 5.7

Diameter 　 Length 　
D(mm) Tolerance L(mm) Tolerance
3.0 +0.2～+0.4 40 +0.5～+1.0
3.0 +0.2～+0.4 50 +0.5～+1.0
3.0 +0.2～+0.4 75 +0.5～+1.0
3.0 +0.2～+0.4 100 +0.5～+1.0
4.0 +0.2～+0.4 50 +0.5～+1.0
4.0 +0.2～+0.4 60 +0.5～+1.0
4.0 +0.2～+0.4 75 +0.5～+1.0
4.0 +0.2～+0.4 100 +0.5～+1.0
5.0 +0.2～+0.4 50 +0.5～+1.0
5.0 +0.2～+0.4 60 +0.5～+1.0
5.0 +0.2～+0.4 75 +0.5～+1.0
5.0 +0.2～+0.4 100 +0.5～+1.0
6.0 +0.2～+0.4 50 +0.5～+1.0
6.0 +0.2～+0.4 60 +0.5～+1.0
6.0 +0.2～+0.4 75 +0.5～+1.0
6.0 +0.2～+0.4 80 +0.5～+1.0
6.0 +0.2～+0.4 100 +0.5～+1.0
6.0 +0.2～+0.4 150 +0.5～+1.0
8.0 +0.3～+0.55 60 +0.5～+1.0
8.0 +0.3～+0.55 75 +0.5～+1.0
8.0 +0.3～+0.55 80 +0.5～+1.0
8.0 +0.3～+0.55 100 +0.5～+1.0
8.0 +0.3～+0.55 150 +0.5～+1.0
10.0 +0.3～+0.55 75 +0.5～+1.0
10.0 +0.3～+0.55 100 +0.5～+1.0
10.0 +0.3～+0.55 150 +0.5～+1.0
12.0 +0.3～+0.55 75 +0.5～+1.0
12.0 +0.3～+0.55 100 +0.5～+1.0
12.0 +0.3～+0.55 150 +0.5～+1.0
14.0 +0.3～+0.65 100 +0.5～+1.0
14.0 +0.3～+0.65 150 +0.5～+1.0
16.0 +0.3～+0.65 92 +0.5～+1.0
16.0 +0.3～+0.65 100 +0.5～+1.0
16.0 +0.3～+0.65 150 +0.5～+1.0
18.0 +0.4～+0.8 100 +0.5～+1.0
18.0 +0.4～+0.8 150 +0.5～+1.0
20.0 +0.4～+0.8 100 +0.5～+1.0
20.0 +0.4～+0.8 150 +0.5～+1.0
