Specifications
Brand Name :
HAOZHIYUE
Model Number :
HZY-A
Certification :
CCS/BV/LR/IRS
Place of Origin :
CHINA
MOQ :
1 PC
Price :
Negotiable
Delivery Time :
5~8 Days
Packaging Details :
Container /Pallet /Wooden box
Product name :
Marine Airbag, Ship launching marine air bag, Ship Launching airbag, Inflatable Marine Rubber Airbag for Ship Launching Made in China, Marine Rubber Airbags for Launching and Docking Ships
Material :
Natural rubber/Cord fabric
Working Pressure :
0.05Mpa~0.22Mpa or customize according to request
Certificate :
CCS/BV/LR/IRS
Warranty :
2 years
Layer :
4~13 layers
Standard :
ISO14409:2011(E)ISO14409, CB/T-3837;ISO14409, CB/T-3795,
Diameter :
0.5m~3.4m or customize
Length :
3m~35m or customize
Packing :
Standard Package, Pallet, Folded into pallet
Application :
salvage, heavy lifting, ship launching, floating, landing
Description

Marine Rubber Air Balloon Ship Launching Airbags for Boat Vessel Barge>>>

Barge Vessel Marine Rubber Airbag 0.05Mpa Boat Salvage Heavy LiftingBarge Vessel Marine Rubber Airbag 0.05Mpa Boat Salvage Heavy Lifting

Specification&Capacity of regular size-6layers:

Diameter Safety Working Pressure Working Height Capacity
KN/m Ton/m
Layer-6 D0.8m 0.24MPa 0.5m 122.4 12.9
D1.0m 0.22Mpa 0.6m 131.95 13.46
D1.2m 0.18MPa 0.7m 141.37 14.43
D1.5m 0.14MPa 0.9m 131.95 13.46
D1.8m 0.12MPa 1.1m 131.95 13.46
D2.0m 0.10MPa 1.1m 155.51 15.87
D2.5m 0.10MPa 1.3m 162.34 16.41

Pls noted:The specification of other layers pls confirm with suppliers

Barge Vessel Marine Rubber Airbag 0.05Mpa Boat Salvage Heavy LiftingBarge Vessel Marine Rubber Airbag 0.05Mpa Boat Salvage Heavy LiftingBarge Vessel Marine Rubber Airbag 0.05Mpa Boat Salvage Heavy Lifting

Type 1:

Type 2:

Our advantages

Why choose HAOZHIYUE ?

1.Learder since 1992, with more than 20 years produce experience;

2.Best quality with 3 years guarantee period;

3.Comply with ISO14409:2011;

4.Certificates BV,CCS,ABS,GL etc available;

5.Customized different dimention according to requirements;

6.Long lifespan;

7.Different dimension stocks, the delivery time can be within 3 days;

8.Long time after-sale service;

9.Professional engineer recommend suitable dimension and quantity rubber airbag for your projects.

10.Professional engineer teach you how to repair and how to use the rubber airbag in site.

Description

1.Drawing

2.Material

3.Accessories

Barge Vessel Marine Rubber Airbag 0.05Mpa Boat Salvage Heavy Lifting

Production process Natural Rubber Ship Launching Airbags Inflatable For Huge Structure

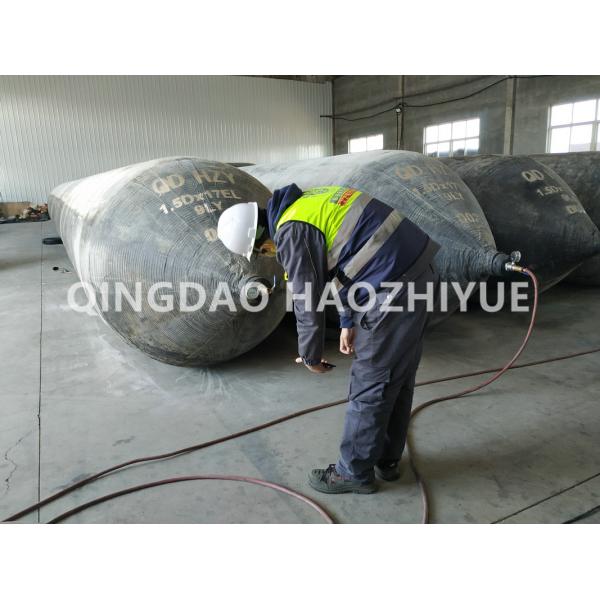

Leaking & pressure test

Our customer do the inspection of leaking(spray soap-suds) and pressure in site<<<<<<

Barge Vessel Marine Rubber Airbag 0.05Mpa Boat Salvage Heavy Lifting

Our equipment

Packing & Loading

Certificates

Certificate of CCS,ABS,GL.BV,DNV etc is available<<<<

FAQ

Q1:What's the material of your products?

A:Our raw material is natural rubber, and rubber-dipped nylon cord fabric

Q2:Are you factory or trading company?

A:We are the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.

Q3:Can you do OEM?

A:Yes,we can do.As long as receive your request,we could produce accordingly.

Q4:What's your delivery time and payment terms?

A:Delivery time is according to customers' size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.

Q5:How can I get samples from you?

A:We are honored to provide you samples for check quality.Customers just confirm freight collect and then we could send out the sample by FedEx,DHL,UPS,TNT and so on.

Q6:What's certificates can your company provide?

A:We can provide CCS,ABS,DNV,LR,BV certificates.

Q7:What about your warranty time?

A:Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers' improper operating,we could provide free guidance and repair materials.
