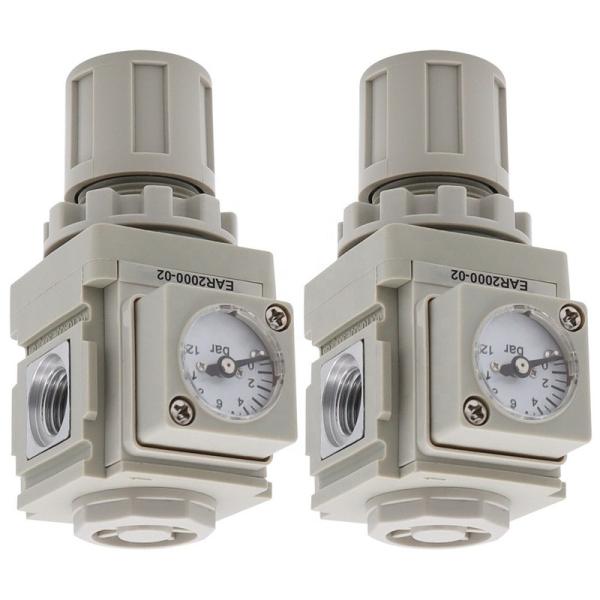

Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Specifications
Place of Origin :
Guangdong, China
Brand Name :
NNT
Packaging Details :
carton box
Supply Ability :
10000 Piece/Pieces per Month
Price :
negotiate
MOQ :
negotiate
Payment Terms :
T/T
Delivery Time :
negotiate
Condition :
New
Warranty :
2 years, 2 years
Applicable Industries :
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, air filter regulator in Pneumat
Weight (KG) :
1.2
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Type :
Source Treatment Unit
Material :
carton box, Aluminum Alloy
Product name :
Air Regulator
Operating Temperature :
5~60 ℃
Fluid :
Air
Set pressure range :
0.05 to 0.85 MPa
Max. operating pressure :
1 MPa
Proof pressure :
1.5 MPa
Port size :
1/8" 1/4"
Valve type :
Relieving type
Port :
Shenzhen
Description
Pressure Compressed Air Regulator Pneumatic Accessories Air Regulator Pressure Reducing Valve

Features:

1.Stepless control of air pressure proportional to an electricalsignal.
2.Compact/Lightweight (Integrated communication parts)
3.Sensitivity:0.2% F.S. or less, Hystersis:0.5% F.S. or less.
4.Cable connections in 2 directions, Grease-free specification.

* When the product is in an “as-shipped” condition, the output pressure when a 0% input signal is applied is 0 kPa. However, there are some cases in which there is a residual pressure of 0.005 MPa or less. If the pressure needs to be reduced to 0 kPa, install a 3-port valve on the output side to exhaust the residual pressure.
* The adjustment of a numerical value such as zero or span adjustment is set based on the minimum unit of the output pressure display. (Example: 0.001 to 0.500 MPa) Note that this unit cannot be changed.
* The above characteristics are confined to the static state. When air is consumed on the output side, the pressure may fluctuate.

Product Description
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Specification
Condition
New
Local Service Location
None
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Type
Source Treatment Unit
Place of Origin
China
Brand Name
NNT
Product name
air regulator
Material
Aluminum Alloy
Operating Temperature
5~60 ℃
Fluid
Air
Set pressure range
0.05 to 0.85 MPa
Max. operating pressure
1 MPa
Proof pressure
1.5 MPa
Port size
1/8" 1/4"
Warranty
2 years
Company Profile
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Guangdong Nuonengtai Automation Technology Co., Ltd. is committed to providing high-quality industrial pneumatic control components to customers at home and abroad. We have been adhering to the business philosophy of "honest management, customer first", and can fully meet the customer's customized needs, so we have a great advantage in providing customized products.
Certifications
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
Packing & Delivery
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve
carton box
Contact Us
Stepless Control Electric Pneumatic Regulator Pressure Compressed Air Regulator Reducing Valve

FAQ

Q1:What is your quality assurance?
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.

Q2:What is your terms of payment?
A: TT ,We'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Bank transfer
