Specifications
Place of Origin :
Ningbo
Model Number :

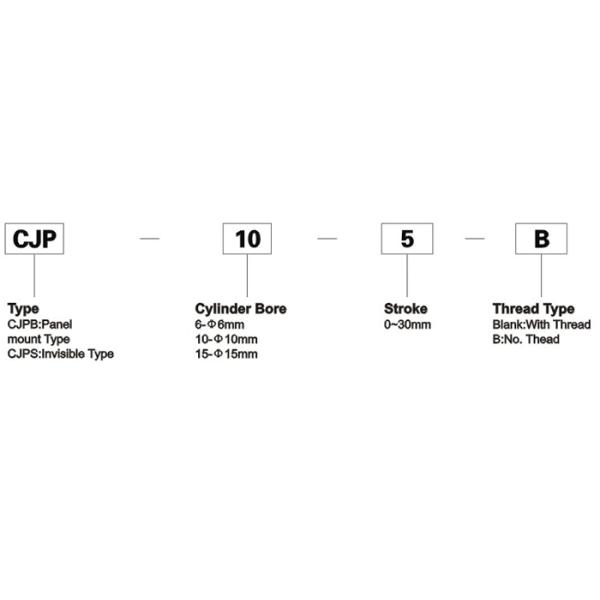

Pneumatic Needle Cylinder CJPΦ6mm,10mm,15mm
Certification :
CE, ISO9001
MOQ :
1 piece
Price :
USD1.6-4.5
Packaging Details :
carton,pallet or according to customers' requirement
Delivery Time :
5 working days after receiving the customers' payment
Payment Terms :
T/T,Western Union,L/C
Supply Ability :
15000 pcs per month
Description

Needle Cylinder CJP type with bore 6mm, 10mm, 15mm

Pneumatic Needle Cylinder CJP type with bore 6mm, 10mm, 15mm

Bore(mm) 6 10 15
Working Medium Air
Motion Pattern Double action / Single Action(Drawing-in Type)
Ensured Pressure Resistance 10.5kgf/cm2(1.05Mpa)
Max.pressure 7kgf/cm2(0.7Mpa)
Min.pressure 2kgf/cm2(0.2Mpa) 1.5kgf/cm2(0.15Mpa)
Operating Temperature Range 5~+60℃
Buffering NO
Margin of Stroke Error(mm) 1
0
Port size M5×0.8(Panel mount Type )

Pneumatic Needle Cylinder CJP type with bore 6mm, 10mm, 15mm

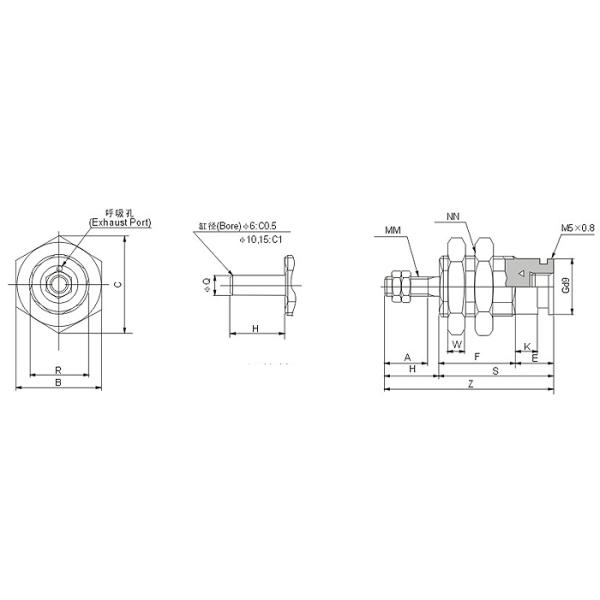

Bore(mm) A B C E F φG H K MM NN R S W Z Q
5st 10st 15st 5st 10st 15st 5st 10st 15st
6 7 12 13.9 6 12.5 19.5 26.5 8.5 9 3.5 M3×0.5 M10×1.0 9 18.5 22.5 32.5 3 27.5 34.5 41.5 3
10 10 19 22 6 14.5 21 28 12 12 3.5 M4×0.7 M15×1.5 13 20.5 27 34 4 32.5 39 46 5
15 12 27 31 7 16.5 22.5 29 19 14 4.2 M5×0.8 M22×1.5 20 23.5 29.5 36 5 37.5 43.5 50 6
