SMC Air Preparation Units AC4010-04 Filter Combination G1/2 Metal cover
SMC Air Preparation Units AC4010-04 Filter Combination G1/2 Metal cover
SMC Air Preparation Units AC4010-04 Filter Combination G1/2 Metal cover
SMC Air Preparation Units AC4010-04 Filter Combination G1/2 Metal cover
SMC Air Preparation Units AC4010-04 Filter Combination G1/2 Metal cover
SMC Air Preparation Units AC4010-04 Filter Combination G1/2 Metal cover
SMC Air Preparation Units AC4010-04 Filter Combination G1/2 Metal cover
SMC Air Preparation Units AC4010-04 Filter Combination G1/2 Metal cover
SMC Air Preparation Units AC4010-04 Filter Combination G1/2 Metal cover
SMC Air Preparation Units AC4010-04 Filter Combination G1/2 Metal cover
Specifications
Place of Origin :
Ningbo
Brand Name :
Airwolf or OEM
Certification :
CE,ISO9001
Model Number :
AC4010-04
MOQ :
1 piece
Price :
Negotiation
Packaging Details :
carton,pallet or according to customers' requirement
Delivery Time :
7 working days after receiving the customers' payment
Payment Terms :
TT, Western Union,L/C
Supply Ability :
150000 PCS per month
Model :
AC4010-04
Port size :
1/2"
Combination :
Two unit
Packing :
Foam carton
Guaranteed pressure resistance :
1.5MPa
Max. working pressure :
1.0MPa
Working temperature :
5~60℃
Filter precision :
25 μm(5 μm is optional )
Description

SMC Air Preparation Units AC4010-04 Filter Combination G1/2" Metal cover

Specifications
Guaranteed pressure resistance 1.5MPa
Max. working pressure 1.0MPa
Working temperature 5~60℃
Filter precision 25 μm(5 μm is optional )
Recommended oil Turbine No1 Oil lsovG32
Bowl material Polycarbonate
Bowl guard AC1010~2010(None)AC3010~5010(Available)
Pressure adjusting range AC1010:0.05~0.7MPaAC2010~5010:0.05~0.85MPa
Valve type With overflow

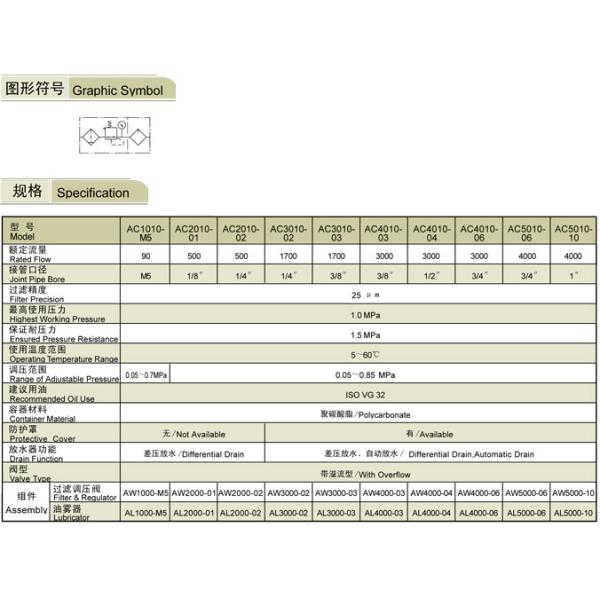

Model AC1010 -M5 AC2010 -01 AC2010 -02 AC3010 -02 AC3010 -03 AC4010 -03 AC4010 -04 AC4010 -06 AC5010 -06 AC5010 - 10
Rated Flow 90 500 500 1700 1700 3000 3000 3000 4000 4000
Joint Pipe Bore M5 G1/8" G1/4" G1/4" G3/8" G3/8" G1/2" G3/4" G3/4" G1"
Filter Precision 25µm
Highest Working Pressure 1.0MPa
Ensured Pressure Resistance 1.5MPa
Operating Temperature Range 5- 60℃
Range of Adjustable Pressure 0.05-0.7MPa 0.05- 0.85MPa
Recommended Oil Use ISO VG 32
Container Material Polycarbonate
Protective Cover Not Available Available
Drain Function Differential Drain Diffefential Drain,Automatic Drain
Valve Type With Overflow
Composing Elements Lubricatof AW1000-M5 AW2000-01 AW2000-02 AW3000-02 AW3000-03 AW4000-03 AW4000-04 AW4000-06 AW5000-06 AW5000-10
AL1000-M5 AL20000-01 AL2000-02 AL3000-02 AL3000-03 AL4000-03 AL4000-04 AL4000-06 AL5000-06 AL5000-10

SMC Air Preparation Units AC4010-04 Filter Combination G1/2

SMC Air Preparation Units AC4010-04 Filter Combination G1/2SMC Air Preparation Units AC4010-04 Filter Combination G1/2

SMC Air Preparation Units AC4010-04 Filter Combination G1/2SMC Air Preparation Units AC4010-04 Filter Combination G1/2

Picture details:

Competitive Advantage:

Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging, 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment

5) Loading inspection, and send loading photos before shipment.

Quality Standards :

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections

Ningbo Fly Automation Co., Ltd with its headquarter located in Ningbo and established in 2010, is a wellknown supplier manufacture of pneumatic equipments in the world market.
Fly Automation is specialized in producing pneumatic cylinders, pneumatic valves,air preparation units, pulse jet valves, pneumatic fittings, etc.
which are widely used in the lighting and textile, automotive, machinery manufacturing, metallurgy, electronics,environmental protection ceramics, medical equipments,food and packaging automatic industrial fields.
