Item Basic model

Direct piping, F, FE type manifolds

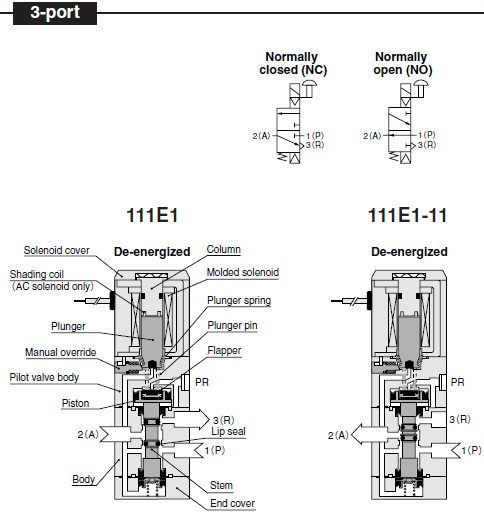

111E1 (110E)

110-4E1 110-4E2

110-4KE2

113-4E2

113-4KE2

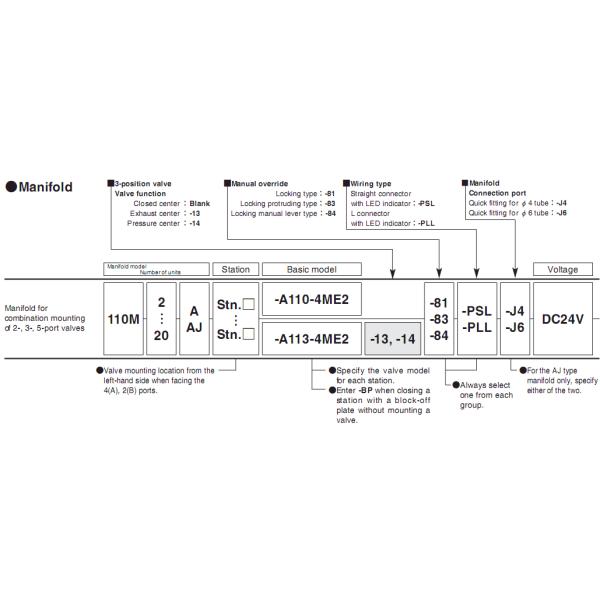

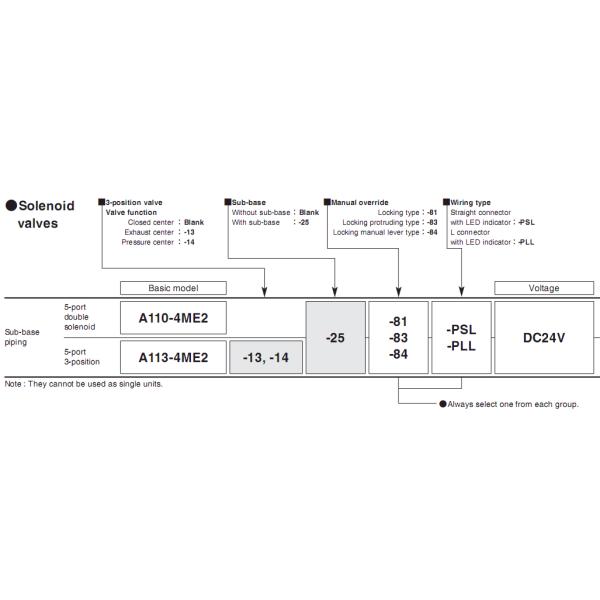

Sub-base piping, A, AJ type manifolds

A111E1 (A110E1)

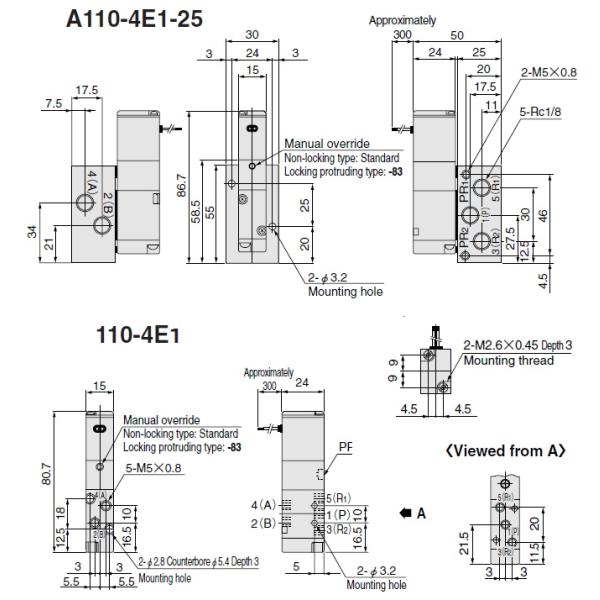

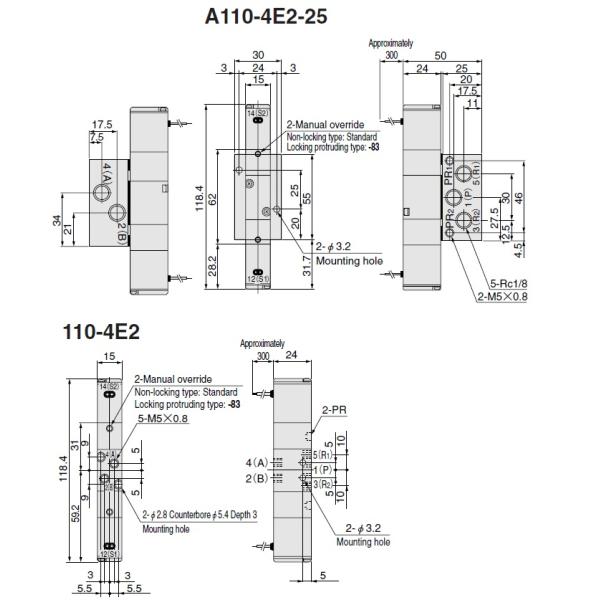

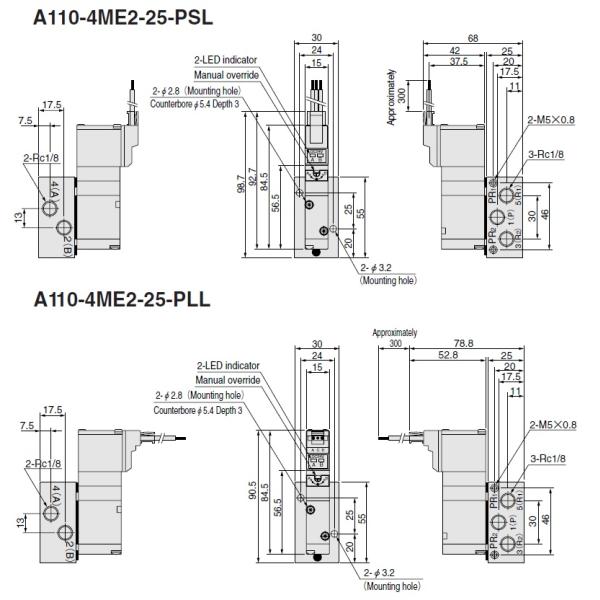

A110-4E1 A110-4E2 A110-4ME2

Al10-4KE2

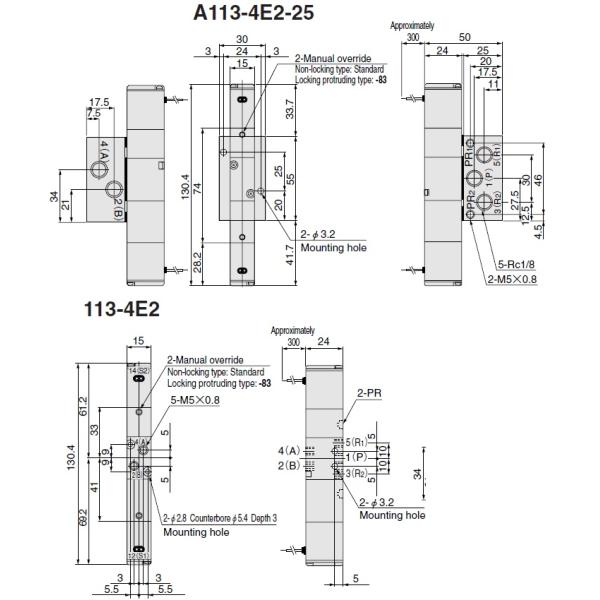

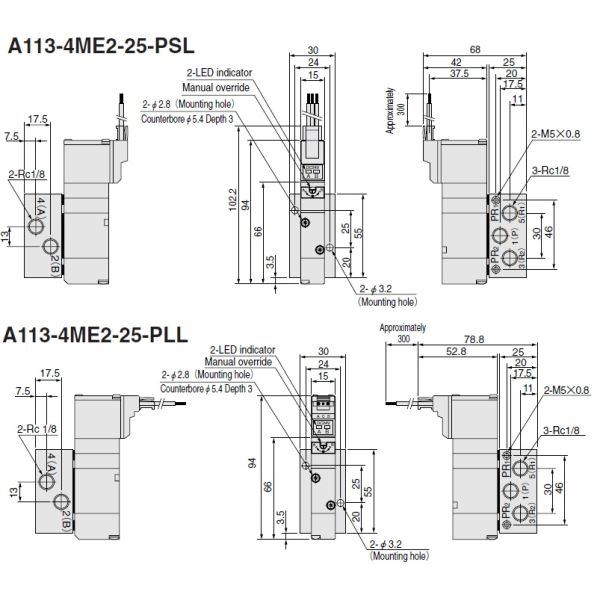

A113-4E2 A113-4ME2

A113-4KE2

Number of positions

2 positions

3 positions

Number of ports

2, 3 ports

5 ports

Valve function

Normally closed (NC, standard) or

Normally open (NO, optional)

Single solenoid, Double solenoid or Tandem solenoid

Twin solenoid

Closed center (standard), Exhaust center (optional), Pressure center (optional) or Tandem solenoid

Closed center (standard), Exhaust center (optional), Pressure center (optional) or Twin solenoid

Media

Air

Operation type

Internal pilot type

Effective area (Cv) mm2

4.2(0.23)

3.8(0.21)

3.6 (0.2)

Port size

M5X0.8

Lubrication

Not required

Operating pressure range MPa {kgf/cm2} [psi]

0.15-0.7{1.5-7.1} [22-102]

Proof pressure MPa {kgf/cm2} [psi]

1.05{10.7} [152]

Response time ON/OFF ms

DC12V, DC24V

15/25 or below

15/25 (20) or below

15 or below

15/30 or below

AC100V, AC200V

15/15 or below

15/15 (15) or below

—

15/20 or below

Maximum operating frequency Hz

5

Minimum time to energize

for self holding ms

—

50(D110-4E2)

50

—

Operatirg temperalire range (atoptere and media) °C [°F]

5-50 [41-122]

Shock resistance m/s2 {G}

1373.0 (140.0} (Axial direction 294.2 {30.0})

294.2 {30.0}

Parts

Materials

Valve

Body

Aluminum alloy (anodized)

O-ring

Synthetic rubber

Flapper

Diaphragm

Synthetic rubber (urethane)

Plunger

Magnetic stainless steel

Column

Spring

Stainless steel

Mounting base

Mild steel (zinc plated)

Manifold

Body

Aluminum alloy (anodized)

Block-off plate

Mild steel (zinc plated)

Seal

Synthetic rubber
