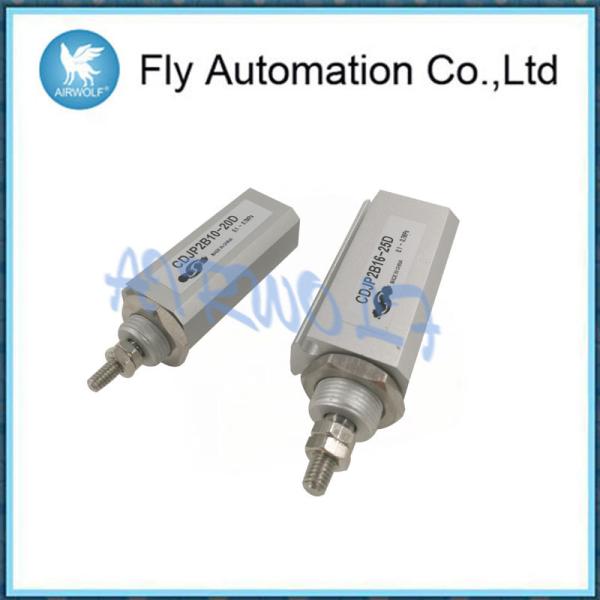

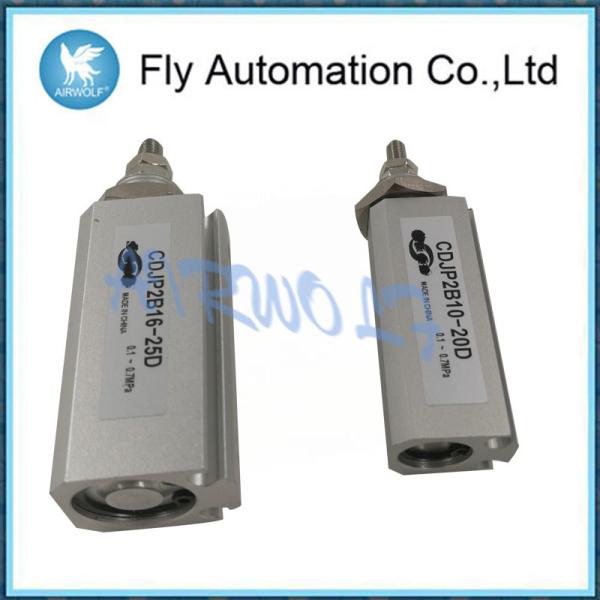

SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder
SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder
SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder
SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder
SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder
SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder
SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder
SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder
SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder
SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder
Specifications
Brand Name :
SMC
Model Number :
CDJP2B16-25D CDJP2B10-20D
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000 pcs /day
Delivery Time :
within 1-10 working days after payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Name :
Air Cylinder
Model :
CDJP2B16-25D CDJP2B10-20D
Material :
metal
color :
silver
Description

SMC CDJP2 Series silver Metal CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder

Caution

1.To remove and install the snap ring for the knuckle pin or the clevis pin, use an appropriate pair of pliers (tool for installinga C type hole snap ring). ln particular, usea pair of ultra-mini pliers, such as theSuper Tool CSM-07A, for removing andinstaling the snap rings on the 6mm cylinder.

2.To replace seals or to grease the cylinder during maintenance, use an appropriatepair of pliers (tool for installing a C typehole snap ring). After re-installing the cylinder, make sure that the snap ring isplaced securely in the groove beforesupplying air.

Specifications

Max. operating pressure 0.7MPa
Min. operating Ф4 0.15MPa
Ф6 0.12MPa
Ф10, Ф16 0.06MPa
Proof pressure 1 MPa
Ambient and fluid temperature -10℃ ~ 70℃, Non-magnetic switch
-10℃ ~60℃,automatic shift
Lubrication Not required
Stroke tolerance ±1.0
0
Rod end thread With thread/Without thread
Operating piston speed 10 ~ 500mm/s
Cushion Rubber bumper at both ends
Mounting Basic, Flange, Foot, Clevis, Trunnion

Basic

Bore size(mm) Stroke(mm)
Ф4 5,10,15,20
Ф6 5,10,15,20,25
Ф10 5,10,15,20,25,30,35,40
Ф16 5,10,15,20,25,30,35,40

SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder

SMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinderSMC CDJP2 Series silver Metal 6mm 10mm CDJP2B16-25D CDJP2B10-20D Double acting needle cylinder

Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
