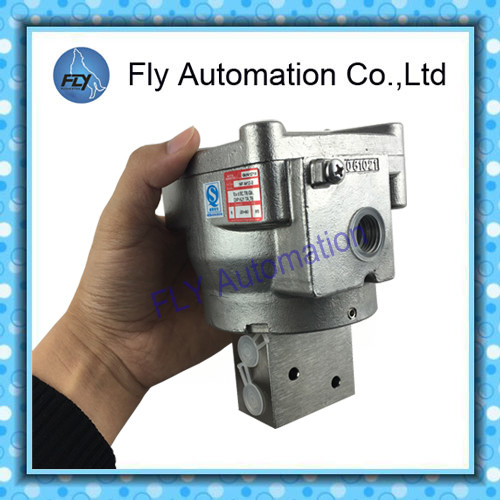

NF8327B102 WSNF8327B102 SS 316L Explosionproof operators NF or WSNF type Solenoid valve

FEATURES
1. Solenoid valves with explosionproof operators NF or WSNF type for use in potentially explosive atmospheres according to ATEX Directive 2014/34/EU
EU type examination certificate no.: LCIE 00 ATEX 6008 X
IECEx Certificate of Conformity no.: IECEx LCI 07.0015X
2. Compliance with the Essential Health and Safety Requirements has been assured by compliance with the International and European Standards EN-IEC 60079-0, EN-IEC 60079-1 and EN-IEC 60079-31
3. The solenoid valves are recommended for pilot applications with high flow, wide pressure ranges and no minimum operating pressure
4. Special execution for low ambient and fluid temperatures
5. Manual Operators are optional including an under pressure removable type
6. The valves are certified according to IEC 61508 Functional Safety data and have SIL-3 capability (TüV & Exida certification)

MATERIALS IN CONTACT WITH FLUID
Ensure that the compatibility of the fluids in contact with the materials is verified
Body: Brass or stainless steel AISI 316L
Stem, core tube: Stainless steel
Core and plugnut: Stainless steel
Springs: Stainless steel
Seals & poppets: ? 5,7 mm: FPM or VMQ or (F)VMQ
? 12 mm: NBR or FPM or (F)VMQ
Rider ring PTFE
OTHER MATERIALS
Solenoid enclosure NF: Chromated aluminium, epoxy coated
WSNF: Stainless steel (AISI 316L)
Bonnet, cover screws NF: Steel (zinc plated)
WSNF: Stainless steel
Core tube: Stainless steel
Core and plugnut: Stainless steel

ELECTRICAL CHARACTERISTICS SAFETY CODE
Coil insulation class: H (5,7 mm), F (12 mm) IECEx / q II 2 G Ex d IIC T6..T4
Coil connection: Screw terminals IECEx / q II 2 D Ex t IIIC Db IP67 T85°C..T135°C
Electrical safety: IEC 335
Standard voltages: DC (=) : 24V - 48V
(Other voltages and 60 Hz on request) AC (~) : 24V - 48V - 115V - 230V / 50 Hz

OPTIONS
1. Waterproof enclosure with embedded screw terminal coil according to protection class IP67, CEE-10
2. Explosionproof enclosures for use in zones 1/21-2/22, categories 2-3 to ATEX Directive 2014/34/EU (see “Explosionproof solenoids” section)
3. Electrical enclosures according to “NEMA” standards are available
4. Compliance with “UL”, “CSA” and other local approvals available on request
5. 3/8” pipe thread executions are available on request
6. Stainless steel exhaust protector for valves certified to IEC 61508 Functional Safety, catalogue number: 34600419 (G1/4) or 34600479 (G1/2)
7. Other pipe connections are available on request
8. refer to the nameplate for identification of the maximum cable temperature

INSTALLATION
1. The solenoid valves can be mounted in any position without affecting operation
2. Solenoid valves have 2 or 3 mounting holes in body
3. Pipe connection identifier is 8 = NPT (ANSI 1.20.3)
4. Installation/maintenance instructions are included with each valve
