Specifications
Model Number :
MVSC-300-4E1
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
1000 pcs
Delivery Time :
within 1-30 working days after payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Model: :
MVSC-300-4E1
Body material :
Aluminium alloy
Diaphragm material :
NBR
Protection class :
IP65 with cable plug
Description

Mindman MVSC-300 Series MVSC-300-4E1 MVSC-300-4E2 Pneumatic units Solenoid valve

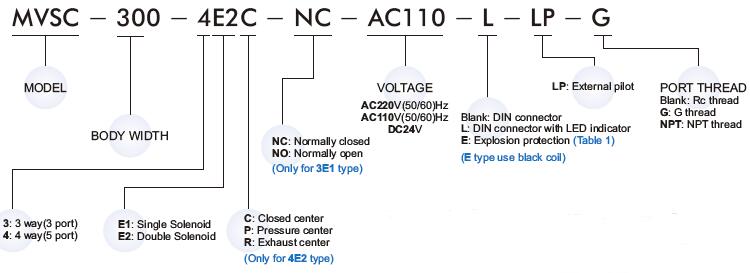

Order Coder

Mindman MVSC-300 Series MVSC-300-4E1 MVSC-300-4E2 Pneumatic Solenoid Valves

Specification

Model 3E1 3E2 4E1 4E2 4E2C.P.R
Bore No. 10A
Port size Rc3/8
No. of port 3 5
No. of position 2 3
Medium Air
Operating pressure range 0.2~0.8 Mpa 0.3~0.8 Mpa
Operating pressure (LP) 0~0.8 Mpa
External pilot pressure (LP) 0.2~0.8 Mpa 0.3~0.8 Mpa
Proof pressure 1 Mpa
Effective orifice 30 mm2 35 mm2 25mm2
Response time 50 ms
Ambient temperature -5~+50 ℃
Voltage AC110V, 220V (50/60) Hz, 24VDC
Power consumption AC=4.8.4,4VA, 6/4.9VA, DC=2W
Available voltage range ± 10%
Insulation class F class
Weight 350 g 439 g 293 g 387 g 565 g

CONSTRUCTION
Body: Aluminium

Quick Mount clamps: Steel
Bolts: Steel
Core tube Stainless: steel
Coil insulation: class F
Core spring: Stainless steel

Coil insulation: class F
Sealings & disc: NBR (nitrile)
Shading coil: Copper

Connector: Spade plug (cable ? 6 - 8 mm), 3 x DIN 46244
Electrical safety: IEC 335

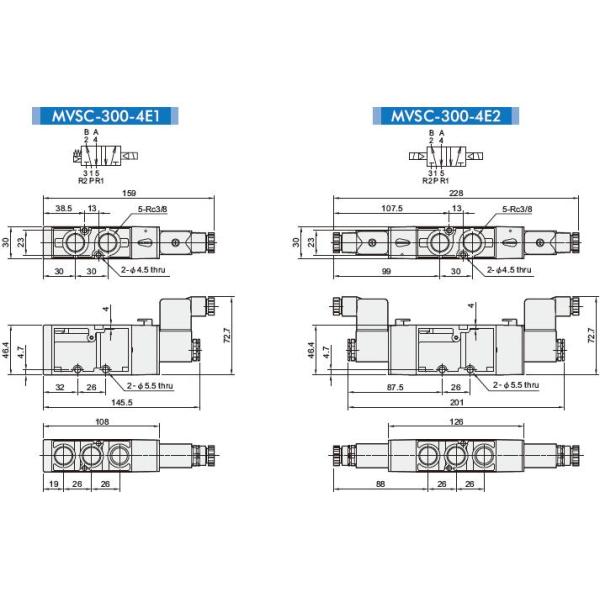

Dimension

Mindman MVSC-300 Series MVSC-300-4E1 MVSC-300-4E2 Pneumatic Solenoid Valves

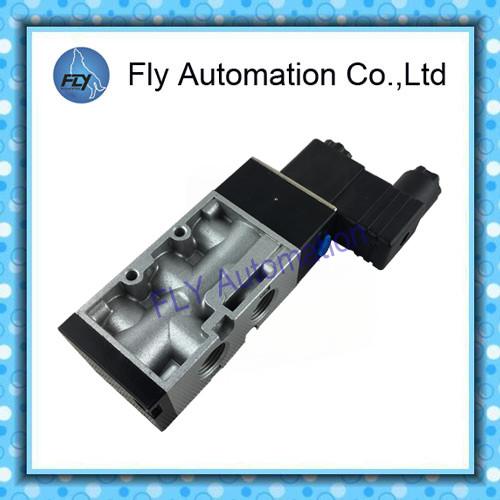

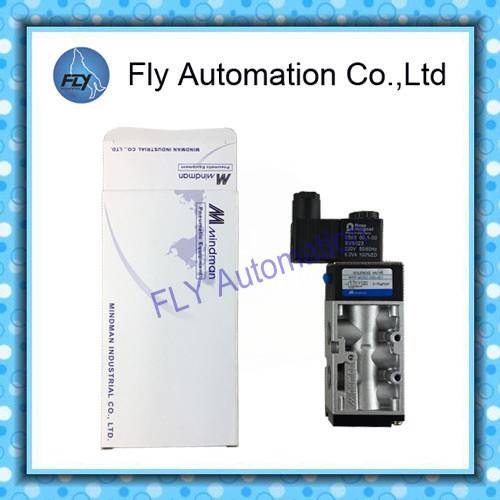

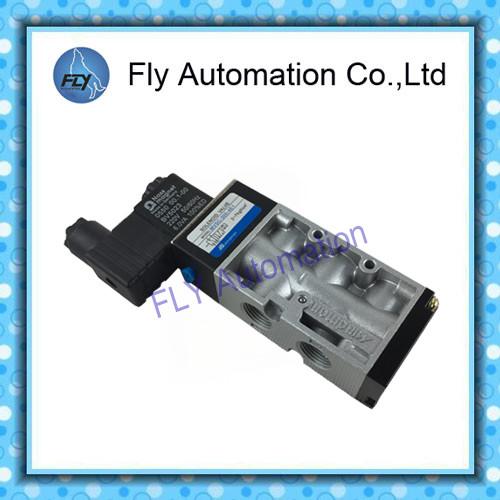

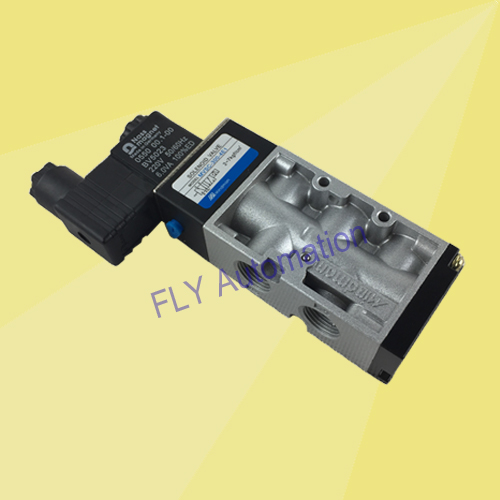

Product show

Mindman MVSC-300 Series MVSC-300-4E1 MVSC-300-4E2 Pneumatic Solenoid Valves
