Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20
Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20
Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20
Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20
Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20
Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20
Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20
Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20
Specifications
Brand Name :
SMC
Model Number :
CU20NiI-20S
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
1000 pcs
Delivery Time :
within 1-7 working days after payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Material :
Aluminium
Working pressure :
0.1~0.8MPa
Working temperature :
-10 °C to +80 °C
Proof pressure :
1.05MPa
Cushion :
Rubber bumper
Bore :
20mm
Stroke :
20mm
Description

Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20

Ordering Code: CU20NiI-20S, Any other types please contact freely.

Order code
Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20
Specifications

Bore size (mm)61016202532
FluidAir
Proof pressure1.05 Mpa
Maximum operating pressure0.7 Mpa
Minimum operating pressure0.12 Mpa0.06 Mpa0.05 Mpa
Ambient and fluid temperatureWithout auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
LubricationNon-lube
Piston speed50 to 500 mm/s
CushionRubber bumper
Rod end threadMale thread
Stroke length tolerance0~+1.0 mm


Standard stroke

Bore size (mm)Standard stroke (mm)
6, 10, 165, 10, 15, 20, 25, 30
20, 25, 325, 10, 15, 20, 25, 30, 40, 50


Structures
1. Φ6, Φ10
Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20
2. Φ15~Φ32
Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20

Bore size
(mm)		AA'BCDEGAGBHJKLRT
7-1322371510131017-76 depth 4.8
1010-1524471710161118-96 depth 5
16111320326717121614255127.6 depth 6.5
20121426408919131916306169.3 depth 8
2516183250101022132320388209.3 depth 9
322022406212112313272448102411 depth 11.5

Bore size
(mm)		Without
auto switch		With
auto switch		MMNNPQQA
SZSZ
633463346M3 x 0.5M3 x 0.5 depth 53.2——
1036523652M4 x 0.7M3 x 0.5 depth 53.2——
1630464056M5 x 0.8M4 x 0.7 depth 64.542
2036554665M6 x 1.0M5 x 0.8 depth 85.594.5
2540635073M8 x 1.25M5 x 0.8 depth 85.594.5
3242695279M10 x 1.25M6 x 1.0 depth 96.6144.5

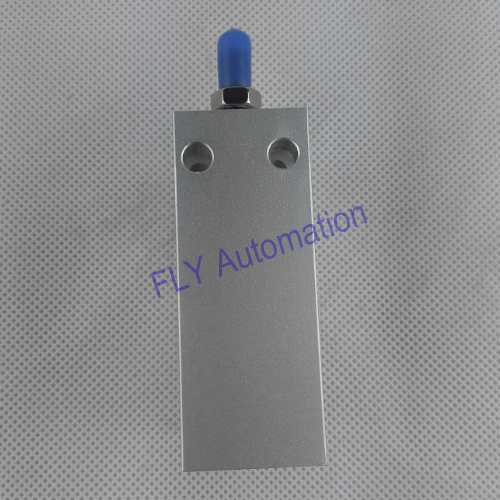

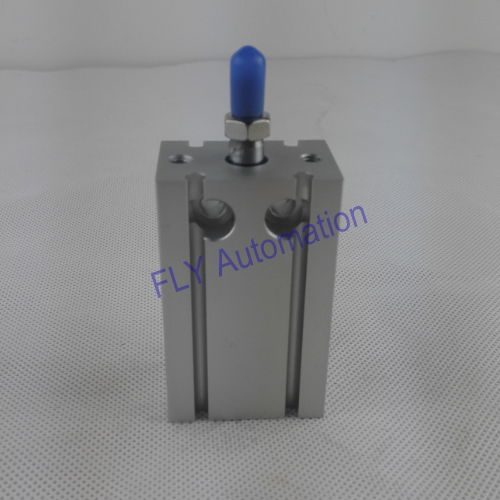

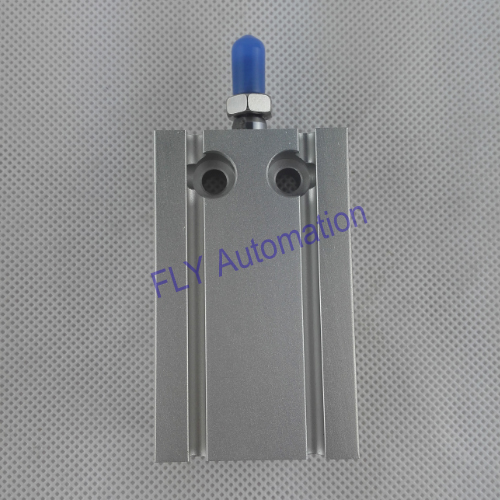

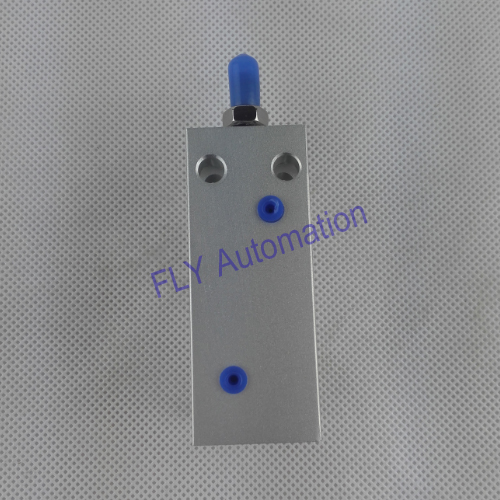

Product show
Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20Free Mount cylinder CU20NiI - 20S Air Pneumatic Cylinder Single Rod CU 20*20
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. Also we can send by your delivery acount if you want.
3. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.

Competitive Advantage

Our product features:Our Services Guarantee:
1) Competitive price1) Prompt respond (Reply with 24 hours)
2) Good quality2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging,3) Registration support.
4) Produce according to Customers’ instruction4) Photos/videos are available during production.
5) None delay shipment

5) Loading inspection, and send loading photos before shipment.
