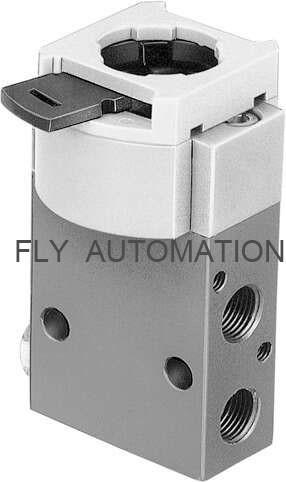

FESTO Front Pneumatic Solenoid Valves SVOS-3-1/8 10191 GTIN4052568111687
FESTO Front Pneumatic Solenoid Valves SVOS-3-1/8 10191 GTIN4052568111687
FESTO Front Pneumatic Solenoid Valves SVOS-3-1/8 10191 GTIN4052568111687
FESTO Front Pneumatic Solenoid Valves SVOS-3-1/8 10191 GTIN4052568111687
Specifications
Brand Name :
FESTO
Model Number :
SVOS-3-1/8
Place of Origin :
China
MOQ :
1pc
Price :
EXW USD60-80
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
200 pcs per month
Delivery Time :
5-7 working days
Packaging Details :
Plastic bag, Carton
Model :
SVOS-3-1/8
Order no :
10191
Brand :
FESTO
Valve function :
3/2 open, single solenoid
Type of actuation :
Mechanical
Design :
Piston seat
Description

FESTO Front panel valve SVOS-3-1/8 10191 GTIN4052568111687 Pneumatic Solenoid Valves

About product

1.Switches have several switching positions that can be alternated between as required.

2.Pushbuttons return to their initial switching position after they are actuated.

3.For actuator attachments such as pushbutton actuators, mushroom pushbuttons, selector switches, toggle switches, key actuators.

4.Reliable coupling system for quick mounting and dismounting.

5.Key actuators can only be actuated using the key. The key can be removed in any switching position.

Technical Data

Valve function 3/2 open, single solenoid
Type of actuation Mechanical
Standard nominal flow rate 120 l/min
pneumatic working port G1/8
Design Piston seat
Type of reset Mechanical spring
Sealing principle Soft
Mounting position optional
Type of piloting Direct
Flow direction Non-reversible

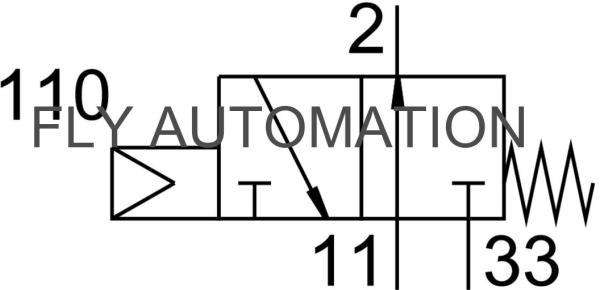

Symbol 00991107
lap Positive overlap
Operating medium Compressed air to ISO 8573-1:2010 [-:-:-]
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -10°C-60°C
Actuating force 8 N
Type of mounting With through-hole
Pneumatic connection, port 1 G1/8
Pneumatic connection, port 2 G1/8
Pneumatic connection, port 3 G1/8
Material cover POM
Material seals NBR TPE-U(PU)
Material housing Aluminium

Another size as below

Type Order no Price
SV-3-M5 6817 USD60-80
SVS-3-1/8 10190 USD60-80
SVOS-3-1/8 10191 USD60-80
SV-5-M5-B 11914 USD60-80
SV/O-3-PK-3X2 184135 USD60-80

Date

PFESTO Front Pneumatic Solenoid Valves SVOS-3-1/8 10191 GTIN4052568111687

There are so many products, welcome to enquire!
