19789 5/2 Double Solenoid Pneumatic Solenoid Valves FESTO JMFH-5-1/4-B
19789 5/2 Double Solenoid Pneumatic Solenoid Valves FESTO JMFH-5-1/4-B
19789 5/2 Double Solenoid Pneumatic Solenoid Valves FESTO JMFH-5-1/4-B
19789 5/2 Double Solenoid Pneumatic Solenoid Valves FESTO JMFH-5-1/4-B
Specifications
Brand Name :
FESTO
Model Number :
JMFH-5-1/4-B
Place of Origin :
China
MOQ :
1pc
Price :
EXW USD100-120
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100 pcs per month
Delivery Time :
7-10 working days
Packaging Details :
Plastic bag, Carton
Order no :
19789
Model :
JMFH-5-1/4-B
Brand :
FESTO
pneumatic working port :
G1/4
Valve function :
5/2 double solenoid
Weight :
460 g
Description

FESTO Solenoid valve JMFH-5-1/4-B 19789 GTIN4052568009489 Pneumatic Solenoid Valves

About product

1.Principle with armature tube.

2.Sturdy and reliable.

3.Wide range of voltages .

4.Pneumatic or electrical actuation with F solenoid coil.

Technical Data

Valve function 5/2 double solenoid
Type of actuation Electric
Construction width 32 mm
Standard nominal flow rate 1600 l/min
pneumatic working port G1/4
Design Piston gate valve
Nominal size 10 mm
Grid dimension 33 mm
Exhaust-air function With flow control option
Sealing principle Soft
Mounting position optional
Manual override Non-detenting
Type of piloting Pilot actuated
Pilot air supply Internal
Flow direction Non-reversible
Symbol 00991013
lap Positive overlap
b value 0.38
C value 6.35 l/sbar
Max. switching frequency 3 Hz
Switching time reversal 14 ms
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Storage temperature -40°C-60°C
Media temperature -10°C-60°C
Ambient temperature -5°C-40°C
Product weight 460 g
Electrical connection Via F coil, to be ordered separately
Type of mounting Either: On PR rail With through-hole
Pilot exhaust port 82 M5
Pilot exhaust port 84 M5
Pneumatic connection, port 1 G1/4
Pneumatic connection, port 2 G1/4
Pneumatic connection, port 3 G1/4
Pneumatic connection, port 4 G1/4
Pneumatic connection, port 5 G1/4
Note on materials RoHS-compliant
Material seals NBR
Material housing Die-cast aluminium

Other size as follow

Type Order no Price
JMFH-5-1/8-B 30486 USD100-120
JMFH-5-1/8-B-EX 535930 USD100-120
MFH-5-1/4-B 19789 USD100-120
MFH-5-1/4-B-EX 535931 USD100-120
MFH-5-3/8-B 19700 USD100-120
JMFH-5-3/8-B-EX 535932 USD100-120
JMFH-5-1/8-S-B 30487 USD100-120
JMFH-5-1/8-S-B-EX 535933 USD100-120
JMFH-5-1/4-S-B 19790 USD100-120
JMFH-5-1/4-S-B-EX 535934 USD100-120
JMFH-5-3/8-S-B 19702 USD100-120
JMFH-5-3/8-S-B-EX 535935 USD100-120

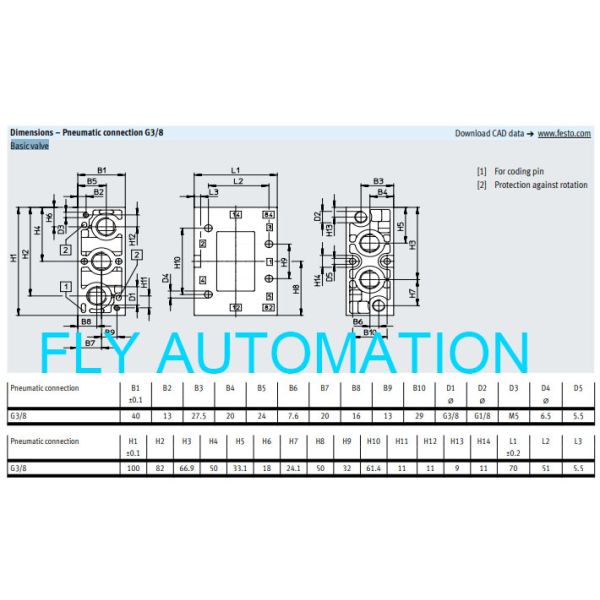

Basic valve

19789 5/2 Double Solenoid Pneumatic Solenoid Valves FESTO JMFH-5-1/4-B

There are so many products, welcome to enquire!
