Specifications
Brand Name :
FESTO
Model Number :
DSBC-80-300-PPVA-N3
Place of Origin :
China
MOQ :
1pc
Price :
EXW USD140-150
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
50 pcs per month
Delivery Time :
10-15 working days
Packaging Details :
plastic bag, carton，OPP bag
Type :
DSBC-80-300-PPVA-N3
Part no :
2126600
Brand :
FESTO
GTIN :
4052568252076
Piston rod thread :
M20x1.5
Piston diameter :
80mm
Description

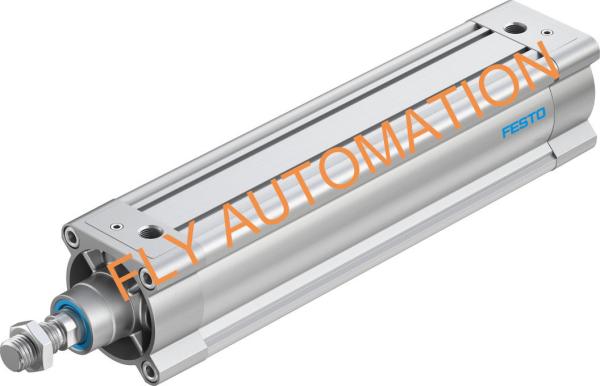

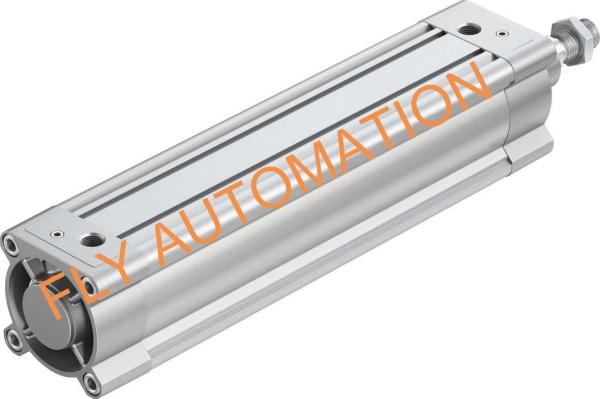

FESTO ISO cylinder DSBC-80-300-PPVA-N3 2126600 GTIN4052568252076 Pneumatic Air Cylinders

Advantage

1.With protection against rotation.

2.Low friction.

3.Constant, slow movement.

4.Low friction for balancer applications.

Technical Data

Stroke 300mm
Piston diameter 80mm
Piston rod thread M20x1.5
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Position detection Via proximity switch
Symbol 00991235
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Cushioning length 31mm
Basic weight for 0 mm stroke 2660 g
Additional weight per 10 mm stroke 92 g
Type of mounting Via female thread With accessories Either:
Pneumatic connection G3/8
Note on materials RoHS-compliant
Material cover Die-cast aluminium, coated
Material piston seal TPE-U(PU)
Material piston Wrought aluminium alloy
Material piston rod High-alloy steel
Material piston rod wiper TPE-U(PU)
Buffer seal material TPE-U(PU)
Cushioning piston material POM
Material cylinder barrel Smooth-anodised wrought aluminium alloy
Material nut Galvanised steel
Material bearing POM
Material collar screws Galvanised steel


Other size as below

Type Order no Weight(g) Price
DSBC-80-20-PPVA-N3 2126594 2844 USD140-150
DSBC-80-25-PPVA-N3 1383333 2890 USD140-150
DSBC-80-30-PPVA-N3 2126595 2936 USD140-150
DSBC-80-40-PPVA-N3 1383334 3028 USD140-150
DSBC-80-50-PPVA-N3 1383335 3120 USD140-150
DSBC-80-60-PPVA-N3 2126597 3212 USD140-150
DSBC-80-70-PPVA-N3 2126598 3304 USD140-150
DSBC-80-80-PPVA-N3 1383336 3396 USD140-150
DSBC-80-100-PPVA-N3 1383337 3580 USD140-150
DSBC-80-125-PPVA-N3 1383338 3810 USD140-150
DSBC-80-150-PPVA-N3 2126599 4040 USD140-150
DSBC-80-160-PPVA-N3 1383339 4132 USD140-150
DSBC-80-200-PPVA-N3 1383340 4500 USD140-150
DSBC-80-250-PPVA-N3 1383341 4960 USD140-150
DSBC-80-300-PPVA-N3 2126600 5420 USD140-150
DSBC-80-320-PPVA-N3 1383342 5604 USD140-150
DSBC-80-400-PPVA-N3 1383343 6340 USD140-150
DSBC-80-500-PPVA-N3 1383344 7260 USD140-150

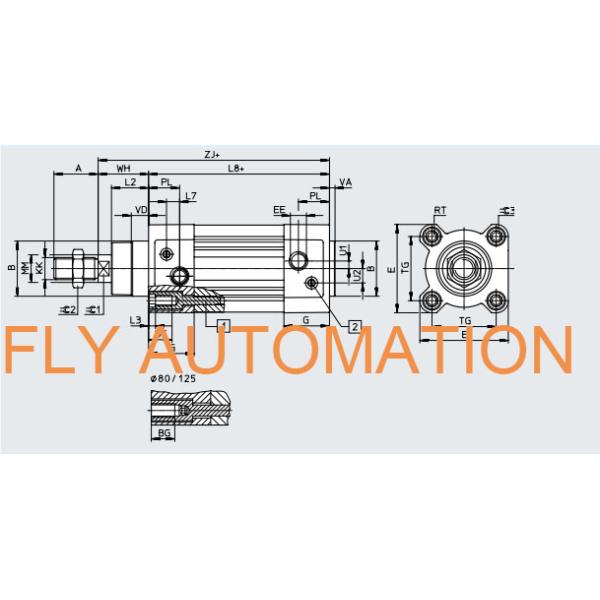

Dimensions

ISO Pneumatic Air Cylinders DSBC-80-300-PPVA-N3 2126600 GTIN4052568252076

There are so many kinds. Hurry to call me!
