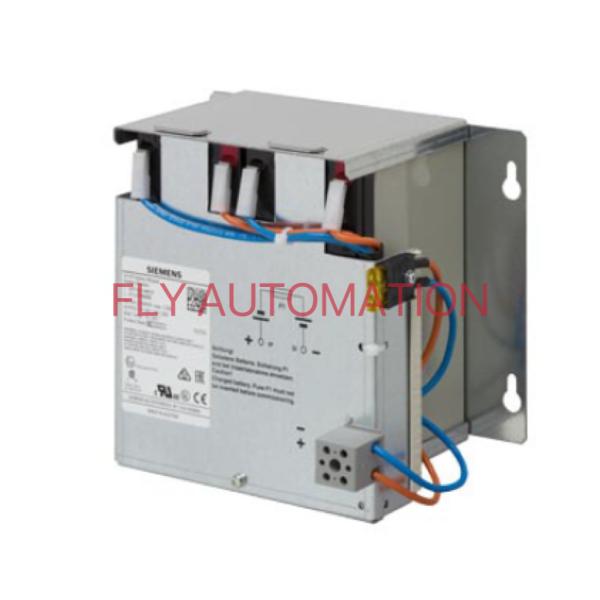

DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21
DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21
DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21
DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21
DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21
DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21
DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21
DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21
Specifications
Brand Name :
SIEMENS
Model Number :
6EP1935-6ME21
Place of Origin :
CHINA
MOQ :
1PC
Price :
EXW USD414-553
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100PCS Every month
Delivery Time :
8-15 work days
Packaging Details :
carton
Brand :
SIEMENS
Used in :
KBA 318
GWS Part ID :
166885427
Net Weight (kg) :
5.546 Kg
Packaging Dimension :
21x 23x 18CM
Output :
DC24V / 20A
Description

SIEMENS LEAD BATTERY PACK 6EP1935-6ME21

DC24V / 20A Siemens Lead Acid Battery Pack 6EP1935-6ME21

describe
SITOP BATTERY MODULE/24V/7AH
SITOP battery module 24 V/7 Ah with maintenance free sealed lead
batteries for SITOP DC UPS module 6 A, 15 A and 40 A *Ex approval no
longer available*
Charging current charging voltage
end-of-charge voltage at DC
● at -10 °C recommended 29 V
● at 0 °C recommended 28.4 V
● at 10 °C recommended 27.8 V
● at 20 °C recommended 27.3 V
● at 30 °C recommended 26.8 V
● at 40 °C recommended 26.6 V
● at 50 °C recommended 26.3 V
Output
charging current maximum 1.75 A
output voltage at DC rated value 24 V
Safety
design of short-circuit protection Battery fuse 20 A/32 V (solid-state circuitry blade-type fuse + support)
design of the overload protection Valve control
Safety
operating resource protection class Class III
protection class IP IP00
Approvals
certificate of suitability
● CE marking Yes
● UL approval Yes
● as approval for USA cURus-Recognized (UL 1778, CSA C22.2 No. 107.1), File E219627
● cCSAus, Class 1, Division 2 No
● ATEX No
certificate of suitability
● EAC approval Yes
● shipbuilding approval Yes
shipbuilding approval ABS, DNV GL
Marine classification association
● American Bureau of Shipping Europe Ltd. (ABS) Yes
● DNV GL Yes
environmental conditions
Operating data note For storage, mounting and operation of lead-acid batteries, the relevant
DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part
2/EN 50272-2) must be observed. You must ensure that the battery site
is sufficiently ventilated. Possible sources of ignition must be at least 50
cm away.
ambient temperature
● during operation -15 ... +50 °C
● during transport -20 ... +50 °C
● during storage -20 ... +50 °C
relative temporary capacity loss at 20 °C in a month
typical		 3%
Service life
service life of energy storage
● typical capacity falls to 80 % of original capacity (according to EUROBAT)
● at 20 °C typical 4 a
● at 30 °C typical 2 a
● at 40 °C typical 1 a
● at 50 °C typical 0.5 a
ambient temperature during storage Along with the storage and operating temperature, other factors such as
the duration of the storage period and the charge status during storage
have a decisive influence on the possible useful life. Batteries should
therefore be stored as briefly as possible, always fully charged, and
within the temperature range 0 to +20 °C.
Mechanics
type of electrical connection spring-loaded terminals
● for power supply unit 1 screw terminal each for 0.08 ... 4 mm² for + BAT and - BAT
product component included Accessories pack with solid-state circuitry fuse 20 A and 30 A
width of the enclosure 186 mm
height of the enclosure 168 mm
depth of the enclosure 121 mm
installation width 206 mm
mounting height 188 mm
fastening method
● wall mounting Yes
● standard rail mounting NO
● S7 rail mounting No
fastening method can be screwed onto flat surface (keyhole mounting for hooking in to M4
screws)
net weight 6 kg
number of cells 12
battery capacity 7 A·h
