FESTO ISO Cylinder DSBC-63-125-PPVA-N3 1383583 Pneumatic Air Cylinders
FESTO ISO Cylinder DSBC-63-125-PPVA-N3 1383583 Pneumatic Air Cylinders
FESTO ISO Cylinder DSBC-63-125-PPVA-N3 1383583 Pneumatic Air Cylinders
FESTO ISO Cylinder DSBC-63-125-PPVA-N3 1383583 Pneumatic Air Cylinders
Specifications
Brand Name :
FESTO
Model Number :
DSBC-63-125-PPVA-N3
Place of Origin :
China
MOQ :
1pc
Price :
EXW USD100-120
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500 pcs per month
Delivery Time :
7-12 working days
Packaging Details :
plastic bag, carton，OPP bag
Type :
DSBC-63-125-PPVA-N3
Part no :
1383583
Brand :
FESTO
Mode of operation :
Double-acting
Piston rod thread :
M16x1.5
Piston diameter :
63 mm
Description

FESTO ISO cylinder DSBC-63-125-PPVA-N3 1383583 Pneumatic Air Cylinders

About product

Stroke:125 mm
Piston diameter:63 mm
Piston rod thread:M16x1.5
Conforms to standard:ISO 15552
Piston-rod end:Male thread

Technical Data

Stroke 125 mm
Piston diameter 63 mm
Piston rod thread M16x1.5
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Position detection Via proximity switch
Symbol 00991235
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
Ambient temperature -20°C-80°C
Cushioning length 22 mm
Basic weight for 0 mm stroke 1740 g
Additional weight per 10 mm stroke 62 g
Type of mounting Either: Via female thread With accessories
Pneumatic connection G3/8
Note on materials RoHS-compliant
Material cover Die-cast aluminium, coated
Material piston seal TPE-U(PU)
Material piston Wrought aluminium alloy
Material piston rod High-alloy steel
Material piston rod wiper TPE-U(PU)
Buffer seal material TPE-U(PU)
Cushioning piston material POM
Material cylinder barrel Smooth-anodised wrought aluminium alloy
Material nut Galvanised steel
Material bearing POM
Material collar screws Galvanised steel

There are so many models ,please contact with me.

With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.

The Core Range off ers you the best value for your automation tasks.

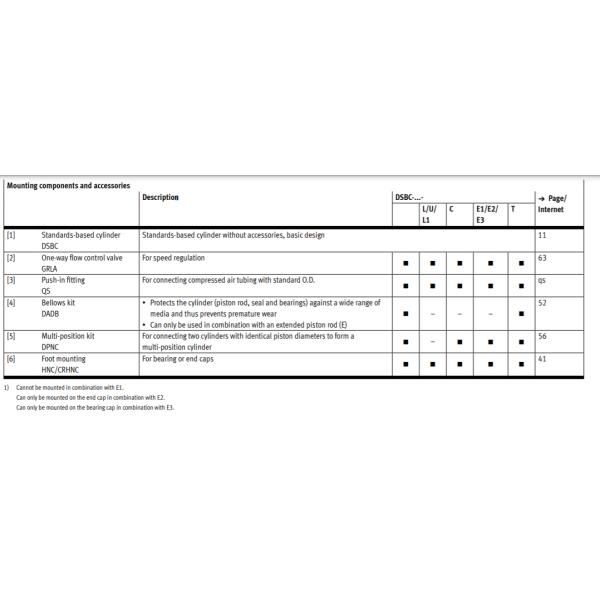

Mounting components and accessories

FESTO ISO Cylinder DSBC-63-125-PPVA-N3 1383583 Pneumatic Air Cylinders

Competitive Advantage
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging, 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment
5) Loading inspection, and send loading photos before shipment.
