CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve
CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve
CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve
CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve
CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve
CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve
CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve
CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve
CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve
CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve
Specifications
Brand Name :
FLY/AIRWOLF or others
Model Number :
CA62T
Certification :
ISO 9001,CE
Place of Origin :
China
MOQ :
1 piece
Price :
price negotiable
Payment Terms :
T/T in advance,Western Union,Paypal,Credit card
Supply Ability :
2000 pcs/month
Delivery Time :
5 working days
Packaging Details :
carton
Power :
Pneumatic
Valve body material :
Aluminium (diecast)
Pressure :
30-860KPA
Temperature :
Normal Temperature
Voltage :
AC220V AC110V DC12V DC24V
Description

CA62T G2 1/2Inch Right angle dust collector cyclone AC220v air pulse valve

Description

High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.
Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Construction
Body: Aluminium (diecast)
Ferrule: 304 SS
Armature: 430FR SS
Seals: Nitrile or fluororubber (reinforced)
Spring: 304 SS
Screws: 302 SS
Diaphragm Seat: PA-6 (standard), fluororubber coated mild steel or High Density PE Refer to Q Series Solenoid product data sheet for solenoid construction details.
Maintenance
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.
Installation
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.

Weights:
Size Integral Pilot (CA) Kg (lbs) Remote Pilot (RCA) Kg (lbs)
62 3.31 (7.30) 3.09(6.82)

Maintenance Kits:

Model Nitrile fluororubber Low Temperature -60°C (-76°F) Min. Includes
CA/RCA50/62T K5004 K5000 NA Diaphragm kits include main and secondary diaphragms (where required) and all springs.These kits are for discontinued valves. o-ring, armature assembly, armature spring, ferrule
Pilot repair kit K0380 K0384 NA
Pressure Range: 30(5)-860(125) kPA(Psi)
Temperature Range: Nitrite Seals: -40°C (-40°F) to 82°C(179.6°F) fluororubber Seals: -29°C (-20.2°F) to 232°C (449.6°F)

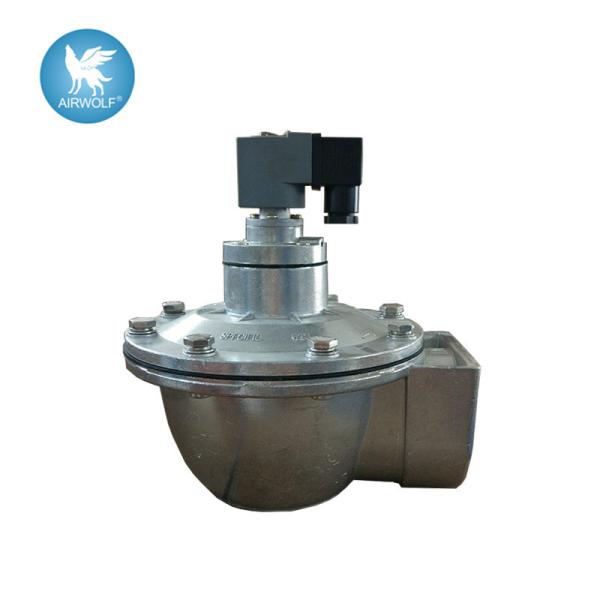

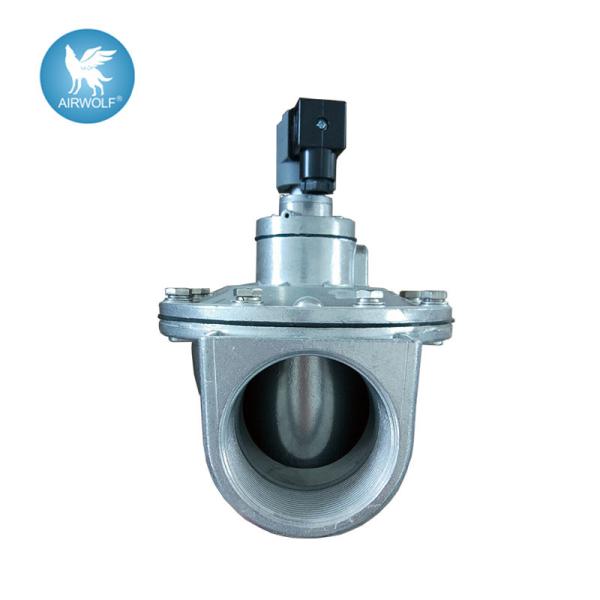

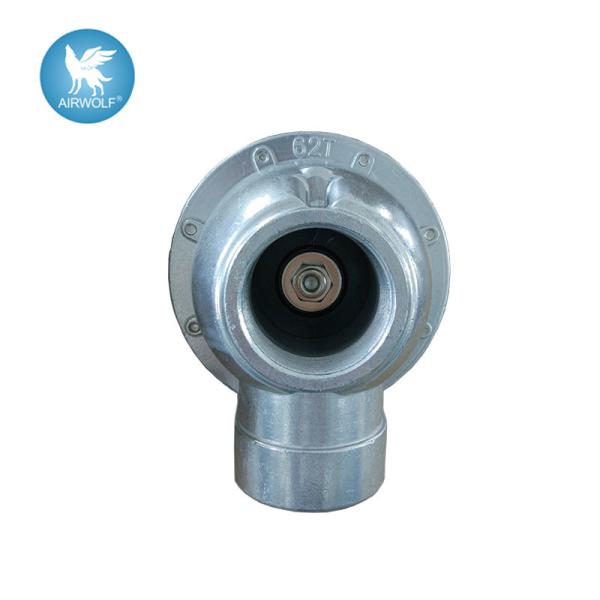

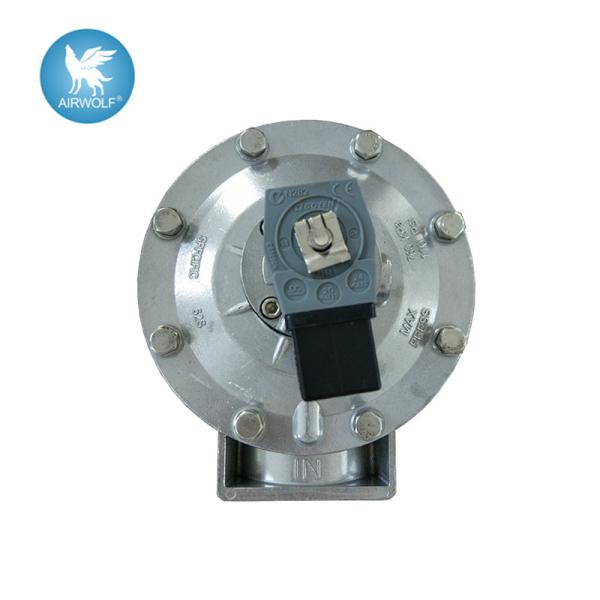

Product pictures:

CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve

CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve

Dimension(mm and inch):

CA62T G2 1/2 Inch Right Angle 860KPA Air Pulse Valve

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
