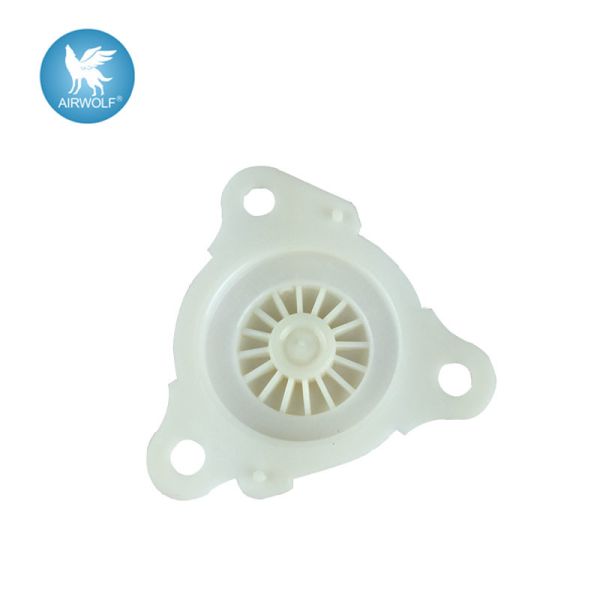

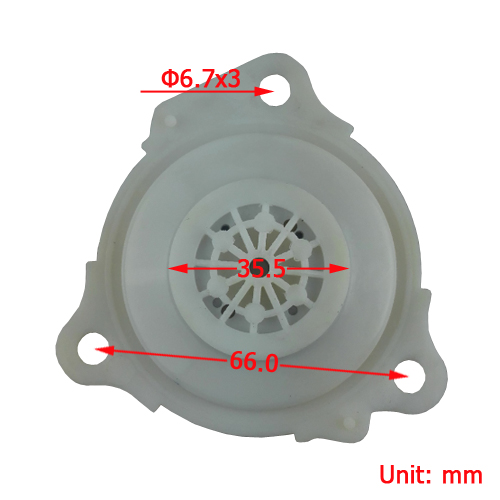

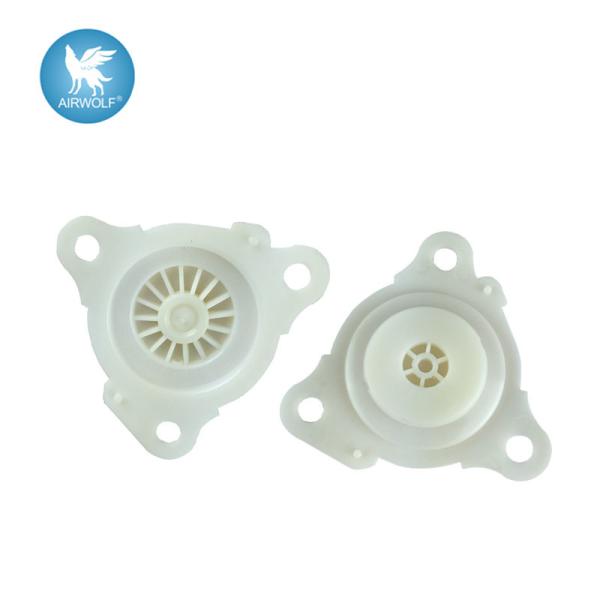

1261253 TPE diaphragm repair kit Norgren 8296300 Solenoid Valve Membrane

Ordering Code: 1261253

Series 82960
1. 2/2-way valves DN 20 to DN 65
2. For air
3. Indirectly solenoid actuated
4. Diaphragm valves
5. Internal thread G 3/4 to G 2 1/2 or 3/4" NPT to 2 1/2" NPT
6. Operating pressure: 0.4 to 8 bar

Description (standard valve)
Switching function: normally closed
Flow direction: determined
Fluid temperature: -40 °C up to max. +85 °C
Ambient temperature: -20 °C up to max. +85 °C
Mounting position: as required, preferably with solenoid vertical on top

Material
Body: Aluminium
Seat seal: TPE
Internal parts: TPU

Features
1. High flow rate
2. All internal components captive
3. Functional compact design
4. Solenoid interchangeable without tools
5. Integrated silencer
6. One-piece diaphragm for longer life

The heart of the filter valve is the TPE diaphragm
The TPE diaphragm is the key component in any filter valve de- signed to provide short pressure decay times and high kv-values.
Service life is 4-5 times longer than that of comparable, conven- tional fabric diaphragms. Our product filter systems eliminate the
danger that rubber particles could enter the product. The TPE material used has FDA approval (Food and Drug Administration,USA)
Temperature range - fluid temperature
Standard diaphragm: –40 °C to 85 °C
For higher temperatures: –10 °C to 140 °C

Drawing legend

Service kits

1 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping

2 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions

3 . Integral pilot operated valves satisfy all relevant EC directives

4 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.

5 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications

Handling
The solenoid system with unique bayonet connection is easily mounted - just push down and turn. Its internal components are
captive. The high specification plastic enca- sed solenoid can be inserted in 3 different positions 120° apart. Standard IP 65.
Sound of silence
The silencer reduces noise emission and prevents foreign matter getting into the valve.
Connection
BSP or NPT female thread to interational standards. Compression Fitting.
Response
The volume over the diaphragm is mini- mised for extremely fast opening with ideal peak pressures. In conjunction with the high flow rate this achieves very effective cleaning. The similary optimised closing time ensures low air consumption.
Reliability
All of the dynamically loaded valve elements are designed to last. The solenoid design of the pilot offers maximum security against icing.
