Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8 Size
Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8 Size
Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8 Size
Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8 Size
Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8 Size
Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8 Size
Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8 Size
Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8 Size
Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8 Size
Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8 Size
Specifications
Brand Name :
TURBO
Model Number :
SRM024DC/SRM11050/SRM22050
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
1000 pcs
Delivery Time :
within 1-30 working days after payment
Packaging Details :
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Model :
SRM024DC/SRM11050/SRM22050
Material :
Aluminium alloy
Size :
1/8"
Color :
Silvery
Material of Oil Seal :
NBR/fluororubber
Description

1. Product name: SRM024DC SRM11050 SRM22050 Turbo Diaphragm Valves 1/8” Aluminium Pulse Jet Valve

2. Remote pilot valve

Designes for panel mounting or Turbo boxes. Two models are available:

· Series SR/TSRM, max. lenght of pilot tubes 3m

· Series LD, max. lenght of pilot tubes 10m

Two ways normally closed. Tibes 6 or 8 mm. diameter should be used for pneumatic connections to the pulse valves.

3. Characteristics

Fluid Filtered and oilfree compressed air
Operating pressure min 0.5 bar - max 7.5 bar
Temperature range -20℃ ~ +80℃
Body Brass
Core tube Stainless steel
Plunger Stainless steel
Coil insulation Class H
Connector PG9/IP65
Standard voltages 230·110·24V/50·60VHz(19VA)
24VDC(15W)·24VDC(5W)

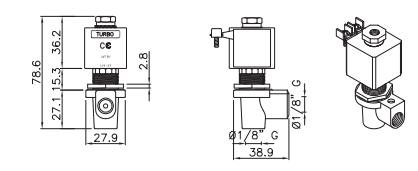

4. Drawing

Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8

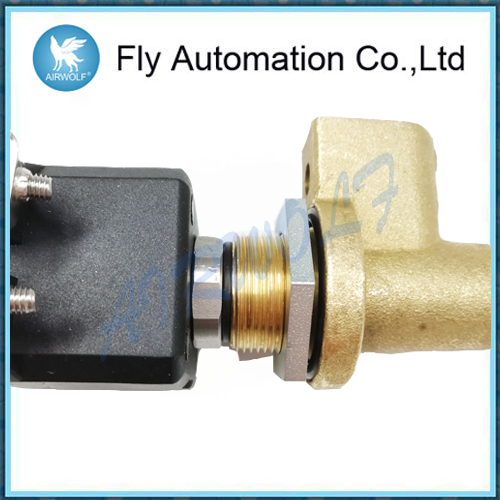

5. Product show

Lightweight Precision Electromagnetic Pulse Valve For Pneumatic Connections 1/8

6. Products shopping guide

For example: you want to purchase a ​batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.

7. Competitive Advantage

Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.

8. Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

9. Order code

Example Voltage
SRC: Pilot valve with connector 24V/50~60Hz 2450
SRM: Pilot valve screws terminal 115V/50~60Hz 11050
TSRM: Pilot valve with faston connection 230V/50~60Hz 22050
LDC: Pilot valve with connector 24VDC 024DC
LDM: Pilot valve screws terminal

10. Description

Body PCRP
Lock nut Oring TGHIERA 18x1 GOR 3081
Pole assembly GPC10/R
Coil BH10

11. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.

12. Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
