5-NBR 222594 Wiper Seal Pneumatic Air Cylinders FESTO WIFC6-32X42X11
5-NBR 222594 Wiper Seal Pneumatic Air Cylinders FESTO WIFC6-32X42X11
5-NBR 222594 Wiper Seal Pneumatic Air Cylinders FESTO WIFC6-32X42X11
5-NBR 222594 Wiper Seal Pneumatic Air Cylinders FESTO WIFC6-32X42X11
Specifications
Brand Name :
FESTO
Model Number :
WIFC6-32X42X11,5-NBR,222594
Place of Origin :
China
MOQ :
1pc
Price :
EXW USD30-40
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8000 pcs per month
Delivery Time :
5-7 working days
Packaging Details :
carton，OPP bag
material :
W5035 grey plastic+N3580 brown nitrile rubber
Specifications :
WIFC6-32X42X11,5-NBR
Order no :
222594
Color :
Brown+grey
Brand :
FESTO
Size :
32X42X11,5
Working pressure :
≤16Bar
Working temperature :
-20-+80℃
Description

FESTO,WIFC6-32X42X11,5-NBR,222594,Wiper seal,Pneumatic Air Cylinders

Material:W5035 grey plastic+N3580 brown nitrile rubber

Specifications:WIFC6-32X42X11,5-NBR

Order no:222594

Color: brown+grey

Brand:FESTO

Size:32X42X11,5

Working pressure:≤16Bar

Working temperature:-20-+80℃

Surface velocity:≤1m/s

Medium: oil lubricated air, dry air and oil-free air (after initial lubrication of assembly).

The product is in a split structure, with the grey ring as the dust scraper ring and the brown ring as the seal ring. They have their own independent models: the gray circle model is EA32 * 42 * 6.45, and the brown circle model is EB32 * 42 * 7.65, but they are not sold separately.

This product is also applicable to FESTO DNG-125-PPV-A

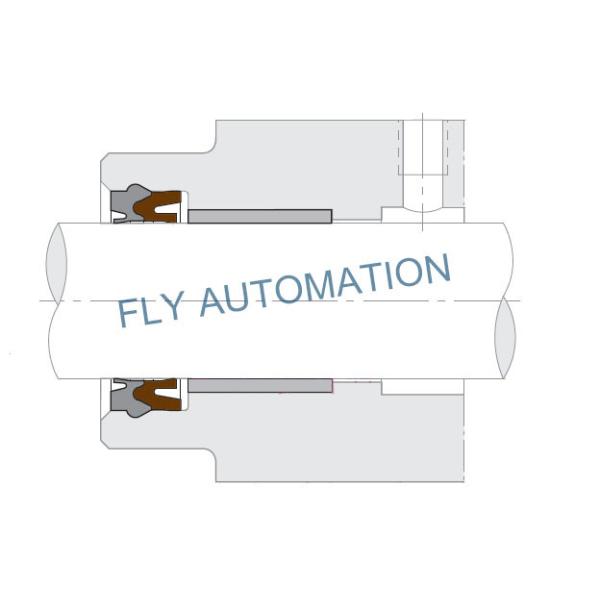

Pay attention to the positive and negative directions during installation:

5-NBR 222594 Wiper Seal Pneumatic Air Cylinders FESTO WIFC6-32X42X11

Dimension drawing of seals and grooves:

5-NBR 222594 Wiper Seal Pneumatic Air Cylinders FESTO WIFC6-32X42X11

Another size as follow:

Specifications Order no Size Coler EXW price Delivery date
FESTO,WIFC6-32X42X11,5-NBR 222594 32X42X11,5 brown/grey USD30-40 5-7 working days
FESTO,WIFC6-40X50X11,5-NBR 224143 40X50X11,5 brown/grey USD30-40 5-7 working days
FESTO,WIFC6-45X55X12,5-NBR 222595 45X55X12,5 brown/grey USD30-40 5-7 working days

Quality Standards

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
