FESTO Compact cylinder ADN-32-30-I-P-A 536283 GTIN4052568005511 Pneumatic Air Cylinders
FESTO Compact cylinder ADN-32-30-I-P-A 536283 GTIN4052568005511 Pneumatic Air Cylinders
FESTO Compact cylinder ADN-32-30-I-P-A 536283 GTIN4052568005511 Pneumatic Air Cylinders
FESTO Compact cylinder ADN-32-30-I-P-A 536283 GTIN4052568005511 Pneumatic Air Cylinders
Specifications
Brand Name :
FESTO
Model Number :
ADN-32-30-I-P-A
Place of Origin :
China
MOQ :
1pc
Price :
EXW USD40-50
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100 pcs per month
Delivery Time :
7-10 working days
Packaging Details :
plastic bag, carton，OPP bag
Part no :
536283
Brand :
FESTO
Type :
ADN-32-30-I-P-A
GTIN :
4052568005511
Stroke :
30 mm
Piston diameter :
32 mm
Description

FESTO Compact cylinder ADN-32-30-I-P-A 536283 GTIN4052568005511 Pneumatic Air Cylinders

About product
1.The compact cylinder is a cylinder with a very compact installation length relative to the working stroke, which is used in the case of extremely limited space and low transverse load requirements.
2.It belongs to the directly installed cylinder group and can be installed without any specific installation accessories.
3.Compact cylinders require up to 50% less space than standard cylinders.

Technical Data

Stroke 30 mm
Piston diameter 32 mm
Piston rod thread M8
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Conforms to standard ISO 21287
Piston-rod end Female thread
Position detection Via proximity switch
Symbol 00991217
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 265g
Additional weight per 10 mm stroke 30g
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Aluminium Anodised
Material seals TPE-U(PUR)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy Smooth anodised


Another stroke as below

Type Order no GTIN Price
ADN-32-5-I-P-A 536278 4052568087791 USD40-50
ADN-32-10-I-P-A 536279 4052568005481 USD40-50
ADN-32-15-I-P-A 536280 4052568005498 USD40-50
ADN-32-20-I-P-A 536281 4052568005504 USD40-50
ADN-32-25-I-P-A 536282 4052568087807 USD40-50
ADN-32-30-I-P-A 536283 4052568005511 USD40-50
ADN-32-40-I-P-A 536284 4052568087814 USD40-50
ADN-32-50-I-P-A 536285 4052568087821 USD40-50
ADN-32-60-I-P-A 536286 4052568170950 USD40-50
ADN-32-80-I-P-A 536287 4052568170967 USD40-50

Optimised manufacturing methods,patented technology and more than 40 years of experience in the field of cylinders make Festo and ADN/AEN a great team

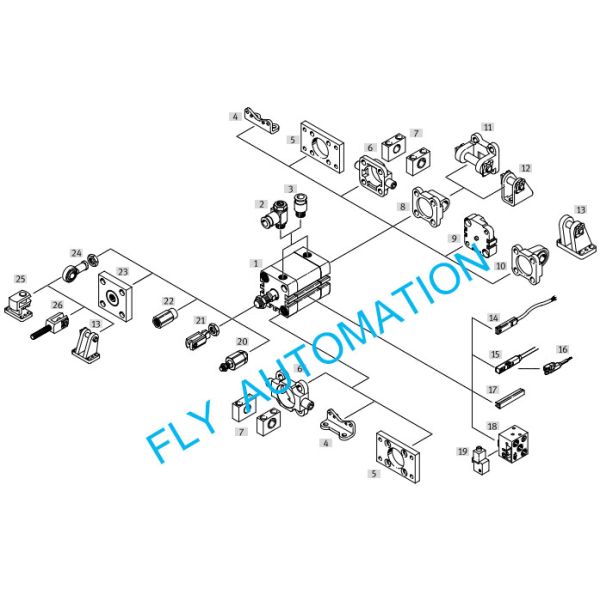

Peripherals overview
FESTO Compact cylinder ADN-32-30-I-P-A 536283 GTIN4052568005511 Pneumatic Air Cylinders



There are so many kinds. Hurry to call me!
