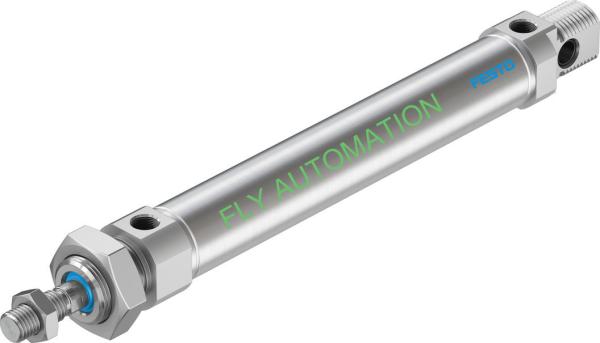

25 mm Pneumatic Air Cylinders DSNU-25-125-P-A 19224 GTIN4052568009441
25 mm Pneumatic Air Cylinders DSNU-25-125-P-A 19224 GTIN4052568009441
25 mm Pneumatic Air Cylinders DSNU-25-125-P-A 19224 GTIN4052568009441
25 mm Pneumatic Air Cylinders DSNU-25-125-P-A 19224 GTIN4052568009441
25 mm Pneumatic Air Cylinders DSNU-25-125-P-A 19224 GTIN4052568009441
25 mm Pneumatic Air Cylinders DSNU-25-125-P-A 19224 GTIN4052568009441
Specifications
Brand Name :
FESTO
Model Number :
DSNU-25-125-P-A
Place of Origin :
China
MOQ :
1pc
Price :
EXW USD40-50
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
100 pcs per month
Delivery Time :
7-10 working days
Packaging Details :
plastic bag, carton，OPP bag
Type :
DSNU-25-125-P-A
Brand :
FESTO
Part no :
19224
GTIN :
4052568009441
Piston diameter :
25 mm
Stroke :
125 mm
Description

FESTO ISO cylinder DSNU-25-125-P-A 19224 GTIN4052568009441 Pneumatic Air Cylinders

About product

1.Compact machine design saves space.

2.Extremely durable due to low wear materials.

3.Easy to identify and re order with FESTO accessories.

4.The materials used and the precise manufacturing process make the DSNU derivative durable.

5.Simple, fast, space saving.

Technical Data

Stroke 125 mm
Piston diameter 25 mm
Piston rod thread M10x1.25
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Conforms to standard CETOP RP 52 P ISO 6432
Piston-rod end Male thread
Design Piston Piston rod Cylinder barrel
Position detection Via proximity switch
Symbol 00991217
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 238 g
Additional weight per 10 mm stroke 11 g
Type of mounting With accessories
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Colourless anodised
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel

Other stroke as Below

Type Order no GTIN Price
DSNU-25-10-P-A 19218 4052568067052 USD40-50
DSNU-25-15-P-A 1908305 4052568108854 USD40-50
DSNU-25-20-P-A 1908306 4052568108861 USD40-50
DSNU-25-25-P-A 19219 4052568003234 USD40-50
DSNU-25-30-P-A 1908307 4052568108878 USD40-50
DSNU-25-35-P-A 1908308 4052568108885 USD40-50
DSNU-25-40-P-A 19220 4052568003241 USD40-50
DSNU-25-50-P-A 19221 4052568003258 USD40-50
DSNU-25-60-P-A 1908309 4052568108892 USD40-50
DSNU-25-70-P-A 1908310 4052568108908 USD40-50
DSNU-25-80-P-A 19222 4052568003265 USD40-50
DSNU-25-100-P-A 19223 4052568003272 USD40-50
DSNU-25-125-P-A 19224 4052568009441 USD40-50
DSNU-25-150-P-A 1908311 4052568108915 USD40-50
DSNU-25-160-P-A 19225 4052568067069 USD40-50
DSNU-25-200-P-A 19226 4052568003289 USD40-50
DSNU-25-250-P-A 19227 4052568067076 USD40-50
DSNU-25-300-P-A 19228 4052568067083 USD40-50
DSNU-25-320-P-A 34719 4052568115548 USD40-50


With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.

The Core Range offers you the best value for your automation tasks.

There are so many type ,please call me immediately!
