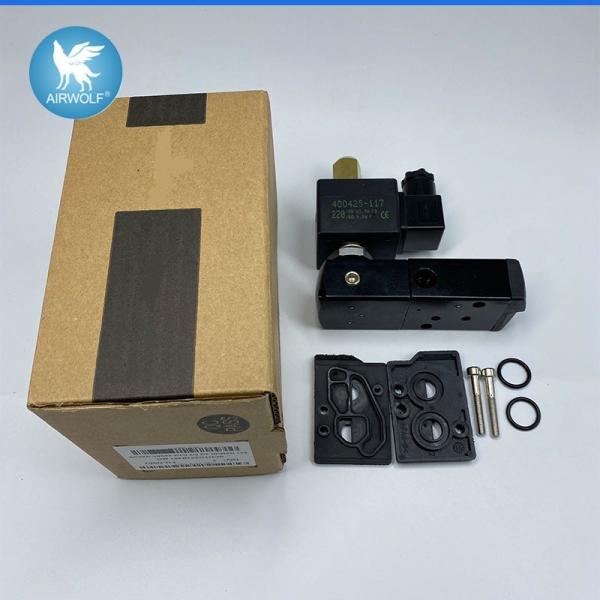

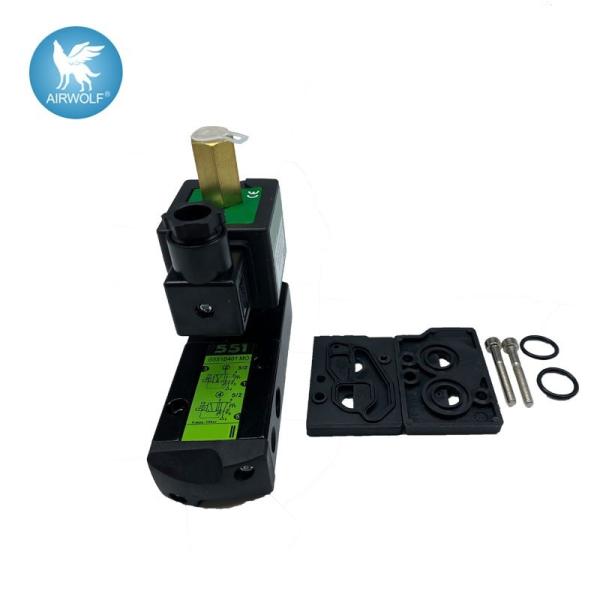

Solenoid valve 3/2 NC-5/2 air pilot operated single Solenoid valve SCHTG551B401MO

FEATURES
• The monostable spool valves in conformity with IEC 61508 Standard (2010
route 2 H version) have TÜV (551 series) and EXIDA (551-553 series) certified
with integrity levels: SIL 2 for HFT = 0 / SIL 3 for HFT = 1
• The solenoid operated spool valves have threaded port connections and
"NAMUR" interface
• The same spool valve can be adapted for 3/2 NC or 5/2 functions for controlling
double-acting and single-acting actuators
• All the exhaust ports of the spool valve are connectable, providing better environmental
protection. Particularly recommended for sensitive areas, such as clean rooms, and
applications in the pharmaceutical and food processing sectors
• The valves offer environmental protection against the ingress of liquids, dusts or
other foreign matter (environmentally-protected construction)
• Can be externally piloted (external air pilot supply) to convert valve to zero
minimum operation by flipping a gasket
• The solenoid valves satisfy all relevant EU Directives

GENERAL
Differential pressure 2 - 10,4 bar [1 bar =100 kPa]
Flow (Qv at 6 bar) 1/4 = 700 l/min (ANR)
1/2 = 3000 l/min

MATERIALS IN CONTACT WITH FLUID
(  ) Ensure that the compatibility of the fluids in contact with the materials is verified
Body, end cover Aluminium, black anodized
End cover (spring return) Glass fibre filled PA
Interface plates Glass fibre filled PA
Spool valve internal parts Zamak, stainless steel, POM, aluminium
Pilot internal parts Refer to specific solenoid catalogue pages
Pilot end covers Aluminium
Core tube Stainless steel
Core and plugnut Stainless steel
Core spring Stainless steel
Seals NBR
Top disc PA
Disc holder POM
Cartridge (low power) Welded, stainless steel or aluminium
Seat Brass
Seat insert POM
Shading coil Copper
Rider rings (low power) PTFE (NF/WSNF solenoids only)
