SY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMC
SY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMC
SY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMC
SY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMC
SY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMC
SY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMC
SY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMC
SY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMC
Specifications
Brand Name :
SMC
Model Number :
SY3340R-5LOU-Q
Certification :
ISO Standand
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram Paypal
Supply Ability :
500 PCS Per Week
Delivery Time :
7-10 working Days
Packaging Details :
Plastic bags, boxes, cartons, Pallets or As customer's requirement
Series :
SY3000
Rated Voltage :
24 VDC
Thread Type :
Rc
Made To Order :
Standard
Coil Specifications :
Standard
Electrical Entry :
With Light/Surge Voltage Suppressor(Non-polar Type)
Description

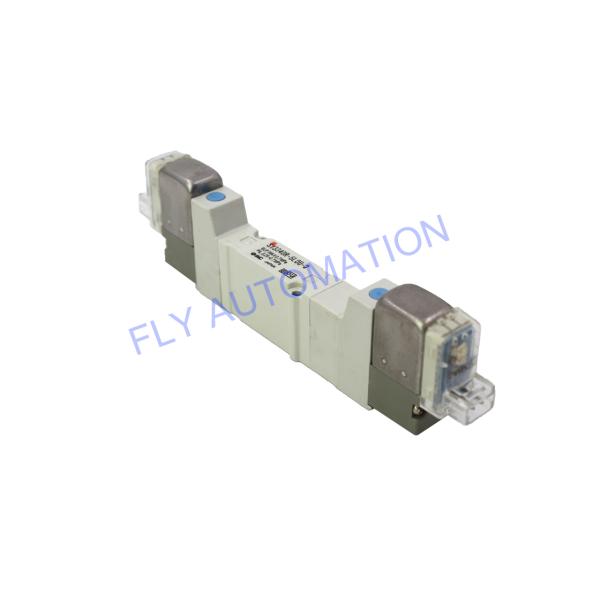

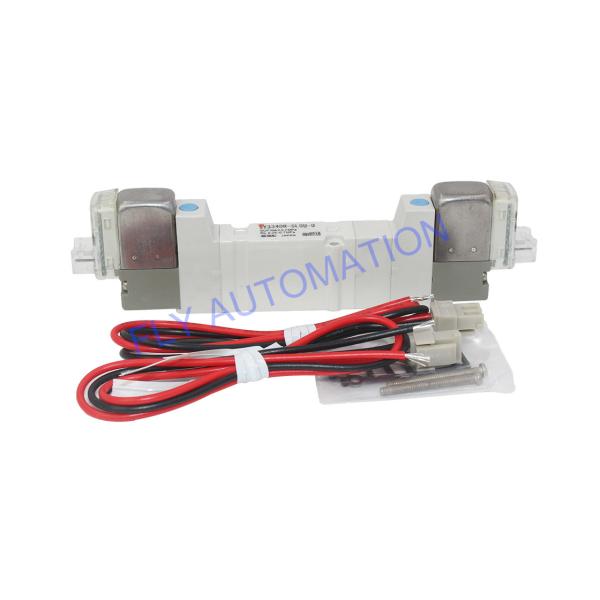

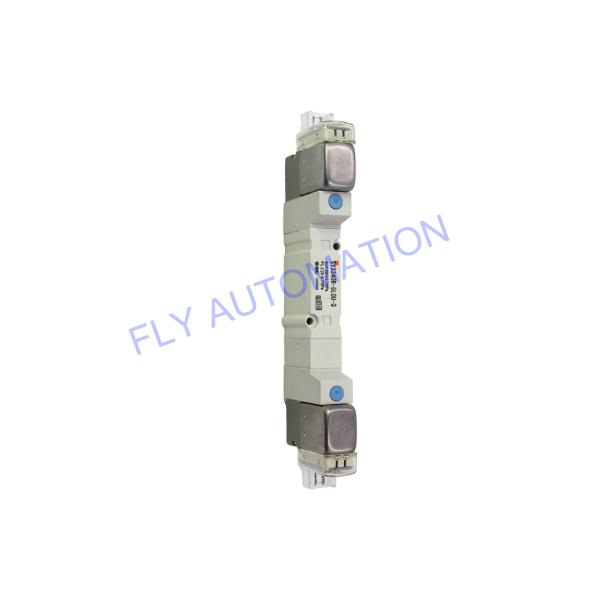

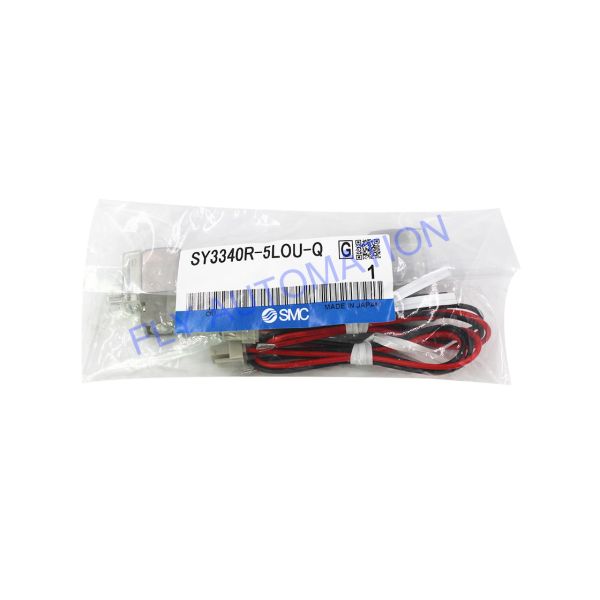

SMC SY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve

Specifications: SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Base Mounted/Single Unit
1. Combined mounting of 3 port valve and 5 port valve is possible
2. Power consumption: 0.1 W (with power saving circuit)
3. A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
4. Manifold type No.: SS5Y3,SS5Y5,SS5Y7,SS5Y9


Due to the flow increase, the valve size can be reduced!
1. IP67 enclosure for standardspecifications
2. The M12 waterproof connectortype ensures easy attaching/detaching and wiring.
3. Applicable to the side, top, andbottom-ported types (4A and 2Bports)

Field Value Value Details
Series 3 SY3000
Type Of Actuation 1 2 Position Single
Pilot Type R External Pilot
Coil Specifications - Standard
Rated Voltage 5 24 VDC
Electrical Entry LO L-type Plug Connector Without Connector
Light/Surge Voltage Suppressor U With Light/Surge Voltage Suppressor(Non-polar Type)
Manual Override - Push-turn Locking Type
Port Size - Without Sub-plate
Thread Type - Rc
Made To Order - Standard
CE-compliant Q CE-compliant

SY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMCSY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMCSY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMCSY3340R-5LOU-Q 5 Port Pneumatic Solenoid Valve SMC

FAQ
Q: Where is your factory ? Can we visit your factory?
A: Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We

sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is

according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before

shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
Q. What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with

UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the

most favorable price among so many suppliers in China. We will send you the tracking number once we got

it.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder

in China, we will find the most cost-effective one for you.
If you have any other question, welcome contact us as below:
Whatsapp/Botim: 0086-15257858856 Skype: lovelyzlf@hotmail.com Email:airwolf@flyautomatic.com
Phone/Wechat: 0086-18957877902

Quality Standards

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
For more information, please feel free to contact me via the email mentioned in the pictures.
