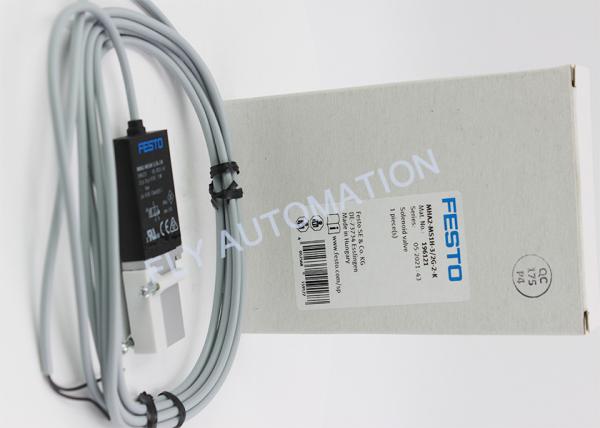

MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
MHA2-MS1H-3/2g-2-K 196121 Festo Solenoid Valve 3/2 Way Fast Switching
Specifications
Brand Name :
FESTO
Model Number :
MHA2-MS1H-3/2G-2-K
Certification :
ISO Standand
Place of Origin :
EU
MOQ :
1 PC
Price :
USD112.5 Per Each
Payment Terms :
T/T, Western Union, MoneyGram Paypal
Supply Ability :
50 PCS Per Week
Delivery Time :
7 working Days
Packaging Details :
Box, Carton 12.5*6*2 CM
Valve function :
3/2-way, closed, monostable
Nominal size :
2 mm
Type of actuation :
Electric
Grid dimension :
14 mm
Reverse polarity protection :
Bipolar
Switching time off :
2 ms
Switching time on :
1.7 ms
Tolerance switching time off :
+10%/-30%
Tolerance switching time on :
+10%/-30%
Switching time dispersion from 1 Hz :
0.2 ms
Description

FESTO Solenoid valve MHA2-MS1H-3/2G-2-K 196121 3/2 Way Fast Switching Valve

1. Directly actuated poppet valve
2. Fast-Switching Valve: switching times down to 2 ms
3. Direct mounting, individual sub-base, manifold assembly
4. Manifold block for 2 ... 10 valves

Feature Value
Valve function 3/2-way, closed, monostable
Type of actuation Electric
Construction width 10 mm
Standard nominal flow rate 100 l/min
pneumatic working port Sub-base
Operating voltage 24V DC
Operating pressure -0.09 MPa ... 0.8 MPa
Operating pressure -0.9 bar ... 8 bar
Design Pressure-relieved poppet valve
Type of reset Mechanical spring
Degree of protection IP55
Approval RCM trademark
c UL us - Recognized (OL)
KC mark KC-EMV
CE mark (see declaration of conformity) To EU EMC Directive
Nominal size 2 mm
Grid dimension 14 mm
Note on grid dimension Minimum distance between the valves is 4 mm
Exhaust-air function With flow control option
Sealing principle Soft
Mounting position optional
Manual override Non-detenting
Type of piloting Direct
Flow direction Reversible with restrictions
Symbol 991308
lap Underlap
Reverse polarity protection Bipolar
Additional functions Spark arresting
Holding current reduction
Protective circuit
Operating pressure, reversible -0.09 MPa ... 0.1 MPa
Operating pressure, reversible -0.9 bar ... 1 bar
Operating pressure, reversible -13.05 psi ... 14.5 psi
Max. switching frequency 330 Hz
Switching time off 2 ms
Switching time on 1.7 ms
Feature Value
Tolerance switching time off -0.333333333
Tolerance switching time on -0.333333333
Switching time dispersion from 1 Hz 0.2 ms
Duty cycle 100%
Characteristic coil data 24 V DC: low-current phase 1.25 W, high-current phase 5.0 W
Permissible voltage fluctuations +/- 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN
60068-2-6
Restrictions for environmental and media temperature As a function of switching frequency (see graph)
Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC 2 - Moderate corrosion stress
Media temperature -5 °C ... 40 °C
Ambient temperature -5 °C ... 40 °C
Product weight 60 g
Electrical connection Cable
Cable length 2.5 m
Type of mounting On sub-base
Pneumatic connection, port 1 Sub-base
Pneumatic connection, port 2 Sub-base
Pneumatic connection, port 3 Sub-base
Note on materials Copper/PTFE-free
RoHS-compliant
Material seals HNBR NBR
Material housing Die-cast zinc
Coated
Material cable sheath PUR
Material screws Steel
Galvanised

Part no. Type
196139 MHA2-MS1H-3/2O-2
196119 MHA2-MS1H-3/2G-2
196138 MHA2-M1H-3/2O-2
196118 MHA2-M1H-3/2G-2
196141 MHA2-MS1H-3/2O-2-K
196121 MHA2-MS1H-3/2G-2-K
196140 MHA2-M1H-3/2O-2-K
196120 MHA2-M1H-3/2G-2-K
197438 MHA2-AS-3-M5
197447 MHA2-PR2-3-M5
197448 MHA2-PR4-3-M5
197449 MHA2-PR6-3-M5
197450 MHA2-PR8-3-M5
197451 MHA2-PR10-3-M5
197470 MHAP2-BP-3
8047671 NEBV-Z4WA2L-P-E-2.5-N-LE2-S1
8047672 NEBV-Z4WA2L-P-E-5-N-LE2-S1
8047670 NEBV-Z4WA2L-P-E-10-N-LE2-S1
193690 KMYZ-4-24-0.5-B
193691 KMYZ-4-24-2.5-B
8047673 NEBV-Z4WA2L-P-E-0.5-N-M8G3-S1
8047674 NEBV-Z4WA2L-P-E-2.5-N-M8G3-S1
