Specifications
Brand Name :
AIRWOLF
Model Number :
CDJP2B
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, Paypal, Credit card
Supply Ability :
1000 pieces per 10 working days
Delivery Time :
1-7 work days
Packaging Details :
Plastic bags, boxes, cartons, Pallets or As customer's requirement
Action :
Double acting,Single rod
MAX operating pressure :
0.7MPa
Proof pressure :
1MPa
Temperature Without auto switch :
-10 to 70°C
Temperature With auto switch :
-10 to 60°C(No freezing)
Lubrication :
Not required(Non lube)
Piston speed :
10 to 500 mm/s
Cushion :
Rubber bumper
Mounting :
Basic,flange,foot,clevis,Trunnion
Body :
Aluminium alloy
Description

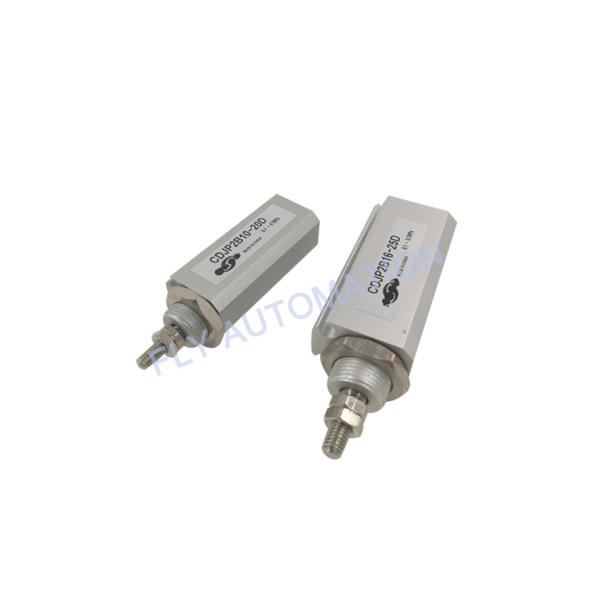

SMC Pneumatic Cylinder CDJP2B Series Double Acting Single Rod Pin Cylinder

Action Double acting,Single rod
Maximum operating pressure 0.7MPa
Minimum operating pressure ∅4 0.15MPa
∅6 0.12MPa
∅10,∅16 0.06MPa
Proof pressure 1MPa
Ambient and fluid temperature

Without auto switch:-10 to 70°C

With auto switch:-10 to 60°C(No freezing)

Lubrication Not required(Non lube)
Stroke length tolerance

+1.0

0

Rod end type With thread/Without thread
Piston speed 10 to 500 mm/s
Cushion Rubber bumper
Mounting Basic,flange,foot,clevis,Trunnion

Basic

Bore size(mm) Stroke(mm)
4 5,10,15,20
6 5,10,15,20,25
10 5,10,15,20,25,30,35,40
16 5,10,15,20,25,30,35,40

Double Acting Single Rod Pin Smc Pneumatic Cylinder CDJP2B Series

Mass(g)

Stroke(mm)
Mounting style
Bore size (mm)
4 6 10 16
Basic mass 5 11 16 27 42
10 13 18 29 46
15 15 21 32 50
20 17 23 35 54
25 - 25 37 58
30 - - 40 63
35 - - 43 67
40 - - 45 71
Bracket mass Flange - 5 6 16
Foot - 7 9 24
Clevis - 2 5 8
Trunnion (with pin) - 15 25 70
Additional mass for buil-in magnet 2 3 5 7

Double Acting Single Rod Pin Smc Pneumatic Cylinder CDJP2B Series

Double Acting Single Rod Pin Smc Pneumatic Cylinder CDJP2B Series

Delivery
1. If the products we have in stock, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

Serves time
0:00 - 23:59
From Monday to Sunday

After-sale Service
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods, buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those damages coursed by shipping or Man-made damaged ). A 15% restocking fee is assessed for any products returned in "used" condition. And then we will send a new product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we will resend a new product in buyer next order; if buyer don't plan to make a new order in the near term, buyer can pay the resend shipping cost and ask to resend a new product. If there is an issue with the products, please contact us– we will solve it as soon as we get your email.
