CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
Specifications
Brand Name :
FLY
Model Number :
CY1L40H-150
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, Paypal, Credit card
Supply Ability :
1000 pieces per 10 working days
Delivery Time :
1-7 work days
Packaging Details :
Plastic bags, boxes, cartons, Pallets or As customer's requirement
Fluid :
Air
Proof pressure :
1.05MPa
Maximum operating pressure :
0.7MPa
Minimum operating pressure :
0.18MPa
Ambient and fluid temperature :
–10 to 60°C
Piston speed (1) :
50 to 1000mm/s
Lubrication :
Non-lube
Bearing style :
Ball bushing
Description

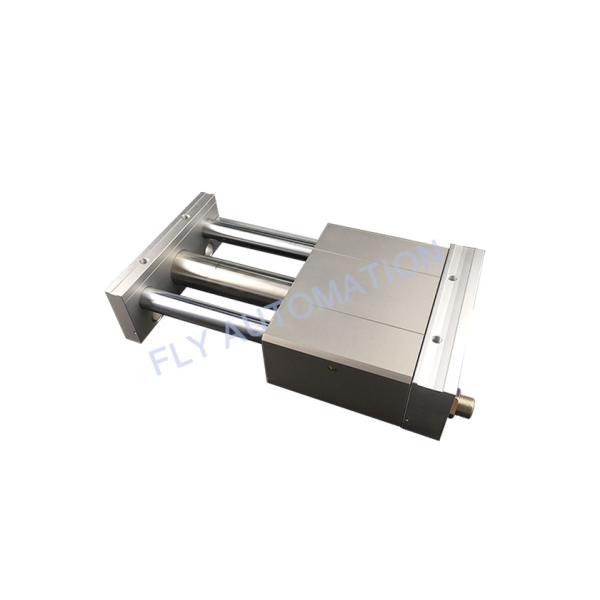

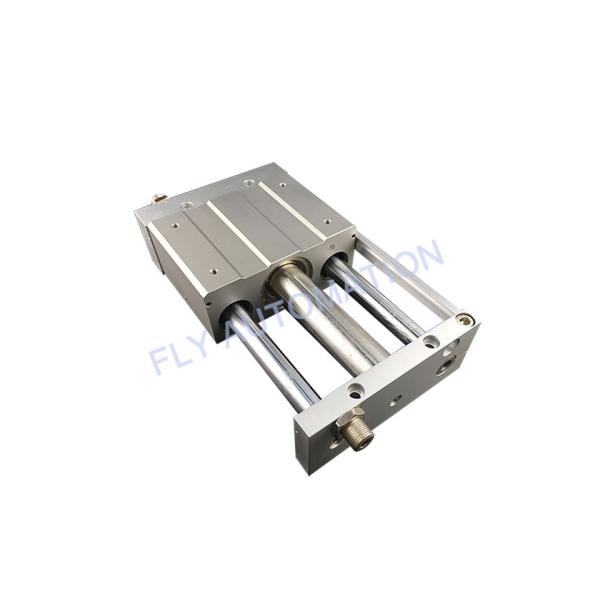

CY1L40H-150 Magnetically Coupled Rodless Cylinder Bushing Bearing SMC Air Cylinder

Long life design

Ball bushings having excellent trafficability are used in the guides. Ball bushing bearing: With grease cup

Easy piping and wiring

Hollow shafts are used, and centralization of ports on one side makes piping easy. Auto switches can be mounted through the use of special switch rails.

Shock absorbers and adjustment bolt are standard equipment

Impacts at stroke end due to high speed use can be absorbed, and fine adjustment of the stroke is possible.

CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC

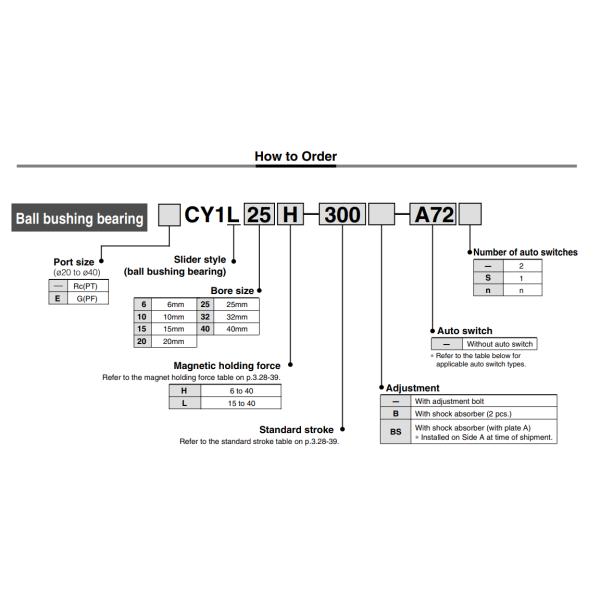

Models
Style Bearing style Model Bore size (mm) With auto switch Adjustment style
Slider style Ball bushing CY1L 6, 10, 15, 20,
25, 32, 40		 D-A7/A8
D-F7/J7		 Adjustment bolt
Shock absorber

Specifications
Fluid Air
Proof pressure 1.05MPa
Maximum operating pressure 0.7MPa
Minimum operating pressure 0.18MPa
Ambient and fluid temperature –10 to 60°C
Piston speed (1) 50 to 1000mm/s
Cushion Shock absorber/Rubber bumper
Lubrication Non-lube
Stroke length tolerance Unrestricted
Standard equipment Auto switch mounting rail

Standard Stroke
Bore size
(mm)		 Standard stroke (mm) Maximum availablestroke
(mm)
6 50, 100, 150, 200 300
10 50, 100, 150, 200, 250, 300 500
15 50, 100, 150, 200, 250, 300, 350
400, 450, 500		 750
20 100, 150, 200, 250, 300, 350
400, 450, 500, 600, 700, 800		 1000
25 1500
32
40 100, 150, 200, 250, 300, 350
400, 450, 500, 600, 700, 800
900, 1000		 1500

Delivery

1. If the products we have in stock, we will send it out ASAP after payment.

2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.

3. Also we can send by your delivery acount if you want.

4. We have variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

Serves time

0:00 - 23:59

From Monday to Sunday

CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMCCY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
