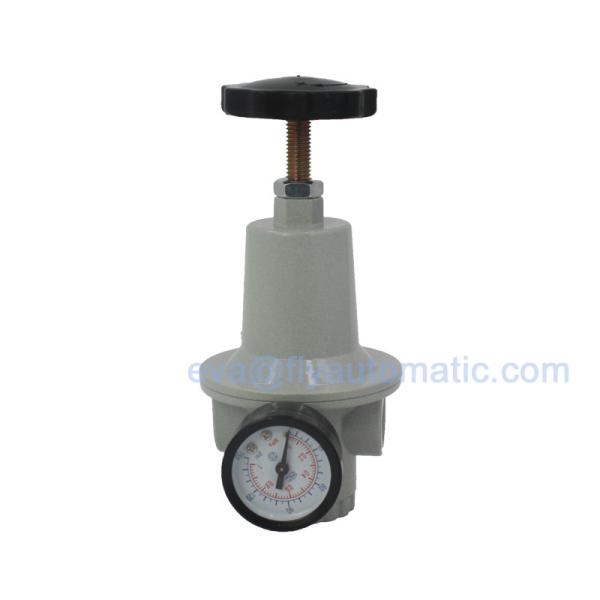

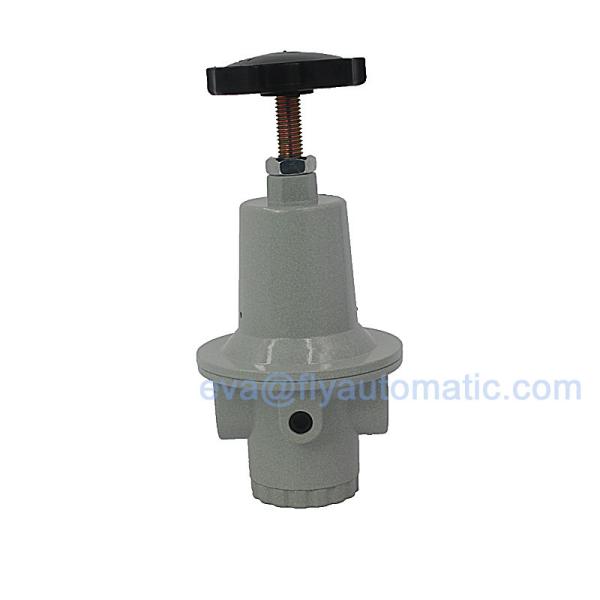

QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
QTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment
Specifications
Brand Name :
QTY
Model Number :
QTY-15
Certification :
ISO Standand
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram Paypal
Supply Ability :
1000 PCS Per Week
Delivery Time :
7 working Days
Packaging Details :
Plastic bags, boxes, cartons, Pallets or As customer's requirement
Model :
QTY-15
Port Size :
1/2''
Body Material :
Aluminum alloy
Fluid :
Air
Ambient&fluid temperature :
5-60℃
Nominal input pressure :
1.0MPa
Description

QTY-15 G1/2 Pneumatic Air Source Treatment Pressure Regulator

Model: QTY-15

Port Size: 2" BSPT

Pressure Adjustable Range: 0.15~0.9Mpa

Proof Pressure: 15.0 kgf/cm2

Max. adjustable Pressure: 9.5kgf/cm2

Ambient & Fluid Temperature: 5~60C

Body Material: Aluminum alloy

Specification
Model QTY-08 QTY-10 QTY-15 QTY-20 QTY-25 QTY-40
Port size G1/4" G3/8" G1/2" G3/4" G1" G1 1/2"
Fluid Air
Adjustable pressure range 0.5~8kgf/cm2
Max. adjustable pressure 9.5kgf/cm2
Proof pressure 15.0kgf/cm2
Ambient&fluid temperature 5-60C
Body material Aluminum alloy
Technical data
Model QTY-10 QTY-15 QTY-20 QTY-25 QTY-40
Environment temperature 5~60°C
Nominal input pressure 1.0MPa
Max.input pressure 0.63MPa
Pressure range 0.05~0.63MPa
Air Flow Sheet
Model reduced to 0.05MPa, the max flow-rate will not less than the following value.
Air flow-rate (L/min)
MPa Entrance pressure
0.63 0.8
QTY-6 160 190
QTY-8 860 900
QTY-10 1000 1100
QTY-15 1200 1300
QTY-20 1980 2100
QTY-25 2450 2650
QTY-40 2920 3200

QTY-15 G1/2 Pneumatic Regulator Pressure Air Source TreatmentQTY-15 G1/2 Pneumatic Regulator Pressure Air Source TreatmentQTY-15 G1/2 Pneumatic Regulator Pressure Air Source TreatmentQTY-15 G1/2 Pneumatic Regulator Pressure Air Source TreatmentQTY-15 G1/2 Pneumatic Regulator Pressure Air Source TreatmentQTY-15 G1/2 Pneumatic Regulator Pressure Air Source TreatmentQTY-15 G1/2 Pneumatic Regulator Pressure Air Source TreatmentQTY-15 G1/2 Pneumatic Regulator Pressure Air Source TreatmentQTY-15 G1/2 Pneumatic Regulator Pressure Air Source Treatment

After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we
will resend a new product in buyer next order; if buyer don't plan to make a new order in
the near term, buyer can pay the resend shipping cost and ask to resend a new product. If
there is an issue with the products, please contact us– we will solve it as soon as we get
your email.
