Specifications
Brand Name :
HYDROMAX
Model Number :
HGP-3AF6R HGP-3AF14R HGP-3AF25R HGP-3AF35R HGP-3AF8R HGP-3AF17R HGP-3AF28R HGP-3AF11R HGP-3AF19R HGP-3AF30R HGP-3AF13R HGP-3AF23R HGP-3AF33R
Place of Origin :
China Taiwan
MOQ :
1
Price :
45-168USD
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500 pcs per week
Delivery Time :
3-12working days
Packaging Details :
poly bags, box, cartons, pallets
Standard Pressure :
103.5 Bar (1500 PSI) AC 207 Bar (3000 PSI) DC
Body Material :
Carbon Steel
Shift Type :
Soft
Mounting type :
Flange
Outlet flow :
8-40L/min
Max. Pressure :
250 kgf/cm2 ( 3500psi )
Displacement :
4-35 cc/rev
Flange :
SAE 2-bolt, DIN 4-bolt, European 4-bolt
Description

Taiwan Single Gear Oil Pump HYDROMAX HGP-3AF6R HGP-3AF25R HGP-3AF33R

Displacement : 4-35 cc/rev
Max. Pressure : 250 kgf/cm2 ( 3500psi )
Flange : SAE 2-bolt, DIN 4-bolt, European 4-bolt

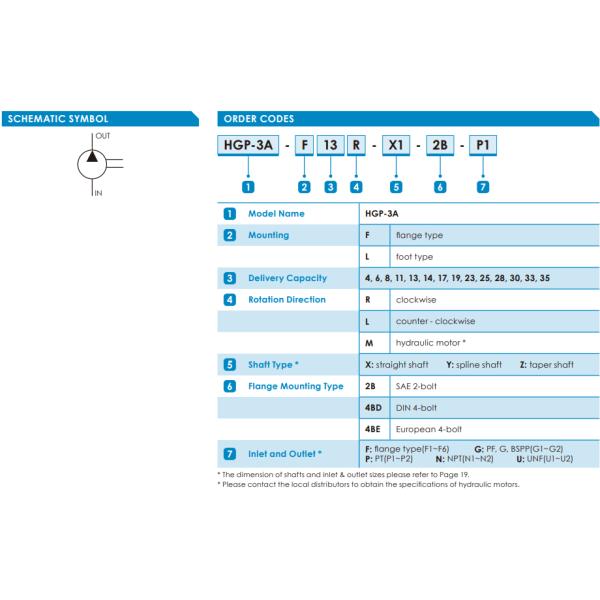

Ordering Code:
HGP-3AF6R
HGP-3AF14R
HGP-3AF25R
HGP-3AF35R
HGP-3AF8R
HGP-3AF17R
HGP-3AF28R
HGP-3AF11R
HGP-3AF19R
HGP-3AF30R
HGP-3AF13R
HGP-3AF23R
HGP-3AF33R
Taiwan Single Gear Oil Pump HYDROMAX HGP-3AF6R HGP-3AF25R HGP-3AF33R

SPECIFICATIONS:

ModelAccurate Displacement Capacity ( cc/rev)Operational Pressure ( kgf/cm')Max. Pressure ( kgf/cm')Speed (r.p.m.)Weight (kg)
RateMax.Min.
HGP-3A-44210 210250 2501800 18004000 4000700 7002.29
HGP-3A-662.37
HGP-3A-88.4210250180035007002.45
HGP-3A-1111210 210 210 210 210250180030006002.60
HGP-3A-1313 14.3 16.5250 250 25018003000 3000 3000600 500 500 5002.70 2.76
HGP-3A-14 HGP-3A-171800
18002.87
HGP-3A-1919.2250180030002.99
HGP-3A-232321025018003000500 500 5003.19
HGP-3A-2525 28175 175210 2101800 180028003.24
HGP-3A-2825003.35
HGP-3A-30 HGP-3A-3330 33175 140210 17518002500 2500500 500 5003.45
12003.60
HGP-3A-3535125140120025003.71


Taiwan Single Gear Oil Pump HYDROMAX HGP-3AF6R HGP-3AF25R HGP-3AF33R

Taiwan Single Gear Oil Pump HYDROMAX HGP-3AF6R HGP-3AF25R HGP-3AF33RTaiwan Single Gear Oil Pump HYDROMAX HGP-3AF6R HGP-3AF25R HGP-3AF33RTaiwan Single Gear Oil Pump HYDROMAX HGP-3AF6R HGP-3AF25R HGP-3AF33RTaiwan Single Gear Oil Pump HYDROMAX HGP-3AF6R HGP-3AF25R HGP-3AF33R
