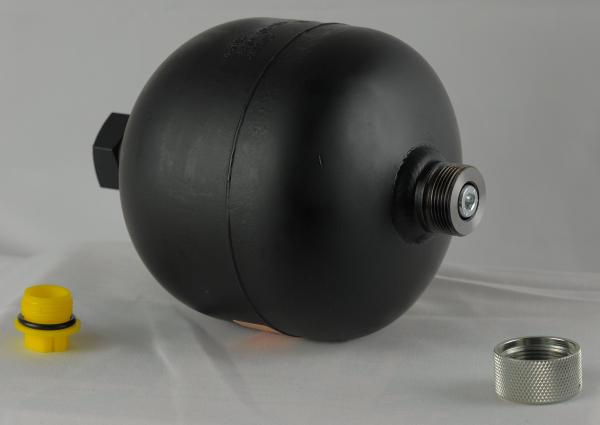

HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
Specifications
Brand Name :
AIRWOLF HYDAC
Model Number :
SBO210-0.075E1/112U-210AK050 SBO210-0.16E1/112U-210AK050 SBO210-0.32E1/112U-210AK050 SBO210-0.5E1/112U-210AK050 SBO210-0.6E1/112U-210AK050 SBO210-0.7E1/112U-210AK050 SBO210-0.75E1/112U-210AK050 SBO210-1E1/112U-210AK050 SBO210-1.4E1/112U-210AK050 SBO210-2E1
Place of Origin :
CHINA
MOQ :
1pcs
Price :
25-155USD
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500 pcs per week
Delivery Time :
3-7 working days
Packaging Details :
box, carton, pallet
Structure :
Diaphragm
Connection :
Weld type, Rechargeable M28*1.5
Operation Medium :
Mineral Oil
Shell Material :
Carbon Steel or SS304
Diaphragm Material :
NBR, ECO,FKM
Pre-charge pressure :
50bar
Temperature :
-10 °C ... +80 °C
Nominal Volume :
0.075L to 3.5L
Description

HYDAC weld type 210bar non-exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050

Order Codes:
SBO210-0.075E1/112U-210AK050
SBO210-0.16E1/112U-210AK050
SBO210-0.32E1/112U-210AK050
SBO210-0.5E1/112U-210AK050
SBO210-0.6E1/112U-210AK050
SBO210-0.7E1/112U-210AK050
SBO210-0.75E1/112U-210AK050
SBO210-1E1/112U-210AK050
SBO210-1.4E1/112U-210AK050
SBO210-2E1/112U-210AK050
SBO210-2.8E1/112U-210AK050
SBO210-3.5E1/112U-210AK050

SBO250-0.075E1/112U-250AK050
SBO250-0.16E1/112U-250AK050
SBO250-0.32E1/112U-250AK050
SBO250-0.5E1/112U-250AK050
SBO250-0.6E1/112U-250AK050
SBO250-0.7E1/112U-250AK050
SBO250-0.75E1/112U-250AK050
SBO250-1E1/112U-250AK050
SBO250-1.4E1/112U-250AK050
SBO250-2E1/112U-250AK050
SBO250-2.8E1/112U-250AK050
SBO250-3.5E1/112U-250AK050

SBO300-0.075E1/112U-300AK050
SBO300-0.16E1/112U-300AK050
SBO300-0.32E1/112U-300AK050
SBO300-0.5E1/112U-300AK050
SBO300-0.6E1/112U-300AK050
SBO300-0.7E1/112U-300AK050
SBO300-0.75E1/112U-300AK050
SBO300-1E1/112U-300AK050
SBO300-1.4E1/112U-300AK050
SBO300-2E1/112U-300AK050
SBO300-2.8E1/112U-300AK050
SBO300-3.5E1/112U-300AK050

SBO330-0.075E1/112U-330AK050
SBO330-0.16E1/112U-330AK050
SBO330-0.32E1/112U-330AK050
SBO330-0.5E1/112U-330AK050
SBO330-0.6E1/112U-330AK050
SBO330-0.7E1/112U-330AK050
SBO330-0.75E1/112U-330AK050
SBO330-1E1/112U-330AK050
SBO330-1.4E1/112U-330AK050
SBO330-2E1/112U-330AK050
SBO330-2.8E1/112U-330AK050
SBO330-3.5E1/112U-330AK050

SBO160-0.075E1/112U-160AK050
SBO160-0.16E1/112U-160AK050
SBO160-0.32E1/112U-160AK050
SBO160-0.5E1/112U-160AK050
SBO160-0.6E1/112U-160AK050
SBO160-0.7E1/112U-160AK050
SBO160-0.75E1/112U-160AK050
SBO160-1E1/112U-160AK050
SBO160-1.4E1/112U-160AK050
SBO160-2E1/112U-160AK050
SBO160-2.8E1/112U-160AK050
SBO160-3.5E1/112U-160AK050

SBO140-0.075E1/112U-140AK050
SBO140-0.16E1/112U-140AK050
SBO140-0.32E1/112U-140AK050
SBO140-0.5E1/112U-140AK050
SBO140-0.6E1/112U-140AK050
SBO140-0.7E1/112U-140AK050
SBO140-0.75E1/112U-140AK050
SBO140-1E1/112U-140AK050
SBO140-1.4E1/112U-140AK050
SBO140-2E1/112U-140AK050
SBO140-2.8E1/112U-140AK050
SBO140-3.5E1/112U-140AK050


How to order:

HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050


Structure: Diaphragm
Weld type: Rechargeable M28*1.5
Operation Medium: Mineral Oil
Shell Material: Carbon Steel
Diaphragm Material: NBR,ECO,FKM
Pre-charge pressure: 50Bar
Temperature: -10 °C ... +80 °C
Nominal Volume: 0.075L to 3.5L
Charging Gas: Nitrogen

Dimension:

HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050

Nom. volume Pem. press. ratio P₂:Po Series Perm. oper. pressure [bar] R [mm] 0D [mm] Weight [kg] Q[L/min] Fluid port
Form AK Form AB
Carbon steel Stainless steel F ISO 228 ØG [mm] L [mm] B1 [mm] Hex. AF F ISO 228 H DIN 13 [mm] [ B2 [ Hex. [mm] AF
0.075 8:1 250 250 91 64 0.7 38 G1/2 14 21 30 Not available
0.16 8:1 210 210 180 103 74 0.8 38 G 1/2 14 21 30
300 300 108 78 1.1
0.32 8:1 100 100 . 116 90 0.9 95 G 1/2 14 21 30
210 210 160 93 1.3
300 300 120 96 1.8
0.5 8:1 160 160 130 102 1.3 95 G 1/2 14 21 30 G 1/2 M33x1.5 14 37 41
210 210 133 105 1.7
0.6 8:1 330 330 151 115 3.3 95 G 1/2 34 14 21 41 G 1/2 M33x1.5 14 37 41
350 350 130 121 3.5 50 50
0.7 8:1 100 100 151 106 1.8 95 G 1/2 34 14 21 41 G 1/2 M33x1.5 14 37 41
0.75 8:1 140 140 142 116 1.8 95 G 1/2 34 14 21 41 G 1/2 M33x1.5 14 37 .41
210 210 1 40 147 121 2.8
250 250 152 126 3.6 , 15 42
330 330 140 126 4 26
1 8:1 200 200 159 136 3.6 95 G 1/2 34 14 21 41 G 1/2 M33x1.5 14 37 41
4:1 250 250 192 - 126 4.4
330 330 169 4.8 26 15 42
1.4 8:1 140 140 173 145 3.9 95 G 1/2 34 14 21 41 G 1/2 M33x1.5 14 37 41
210 210 178 150 5.4
250 250 185 153 5.9 , 15
330 330 172 155 7.6 33 42
2 8:1 100 100 100 190 160 4 - 150 G 3/4 44 16 28 46 G 3/4 M45x1.5 16 33 46
210 210 198 167 6.6
4:1 250 250 232 153 7.4
8:1 330 330 181 172 9.2 43 42
2.8 4:1 210 210 250 167 8.2 . 150 G 314 44 16 28 46 G 3/4 M45x1.5 16 33 . 46
250 250 250 170 9.5
6:1 330 330 231 172 11 44 42
3.5 4:1 250 210 306 170 11.2 - 150 G 3/4 44 16 28 46 G 3/4 M45x1.5 16 33 : 46
330 330 274 172 13.8 44 42
4 4:1 50 50 294 158 5 150 G 3/4 44 16 44 46 G 3/4 M45x1.5 16 33 46
250 180 306 170 11.2

DESIGN


HYDAC weld type diaphragm accumulators consist of the following key individual components:
1.Welded pressure vessel, rechargeable on the gas side or, alternatively, completely sealed, valve body
2.Diaphragm to separate the fluid and gas sections
3.Valve plate in diaphragm base

2. GENERAL INFORMATION MATERIALS, CORROSION PROTECTION
Accumulator shell
As standard, the upper and lower sections are made from carbon steel.
For use with chemically aggressive fluids the hydraulic accumulator can be supplied with corrosion protection, such as plastic coating or a galvanic or chemical surface protection. If this is insufficient, then almost all types can be supplied in stainless steel.

Inner structure:

HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
Maximum temperature range of elastomer materials
The permitted working temperature of a diaphragm accumulator is dependent on the application of the metal materials and the diaphragm. The operating medium must also be taken into account.

HYDAC Weld Type 210 Bar Non Exchangeable NBR Hydraulic Diaphragm Accumulator SBO210-2E1/112U-210AK050
