Specifications
Brand Name :
ATOS
Model Number :
SDKE-1713 10S SDKE-1751/2 10S SDKE-1711 10S SDKE-1715 10S SDKE-1710 10S SDKE-1716 10S SDKE-1714 10S
Place of Origin :
ITALY CHINA
MOQ :
1
Price :
45-168USD
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500 pcs per week
Delivery Time :
3-12working days
Packaging Details :
poly bags, box, cartons, pallets
Max Pressure :
35Mpa
Allowable Tank Port Back Pressure :
20. 6MPa
Coil type :
D24:DC24V A24:AC24V A11: AC110V A38:AC380V RA1:AC110V RA2:AC220V D12: DC12V A22:AC220V
Terminations :
DG: DIN43650 DL: Lead wires(2)
Insulation Class :
H 180℃
Voltage :
90 %V at rated voltage
Power Consumption :
DC 28-31W AC: 19-26W
Fluids-Temperatures :
-40-120℃
Mounting surface :
ISO 4401 size 10
Protection degree to DIN EN 60529 :
IP65
Description

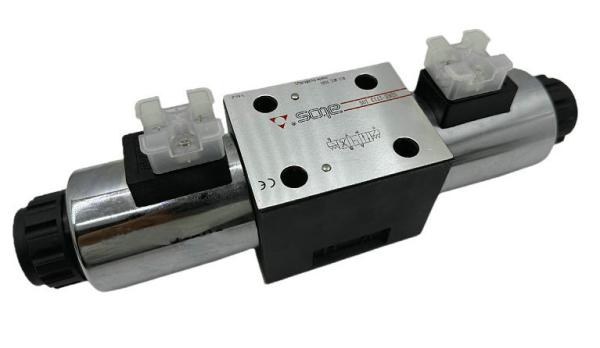

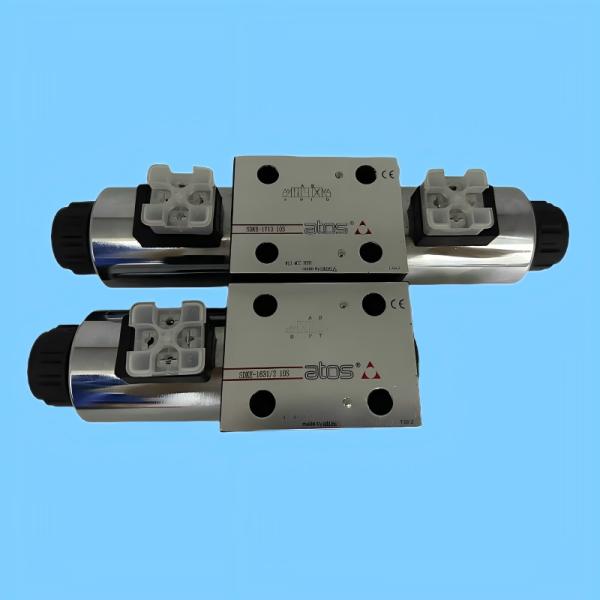

ATOS direct operated Double Solenoid directional valves SDKE-1711 10S SDKE-1716 10S

Order Codes:
SDKE-1713 10S
SDKE-1751/2 10S
SDKE-1711 10S
SDKE-1715 10S
SDKE-1710 10S
SDKE-1716 10S
SDKE-1714 10S
ATOS Direct Operated Double Solenoid Directional Valves SDKE-1711 10S SDKE-1716 10S

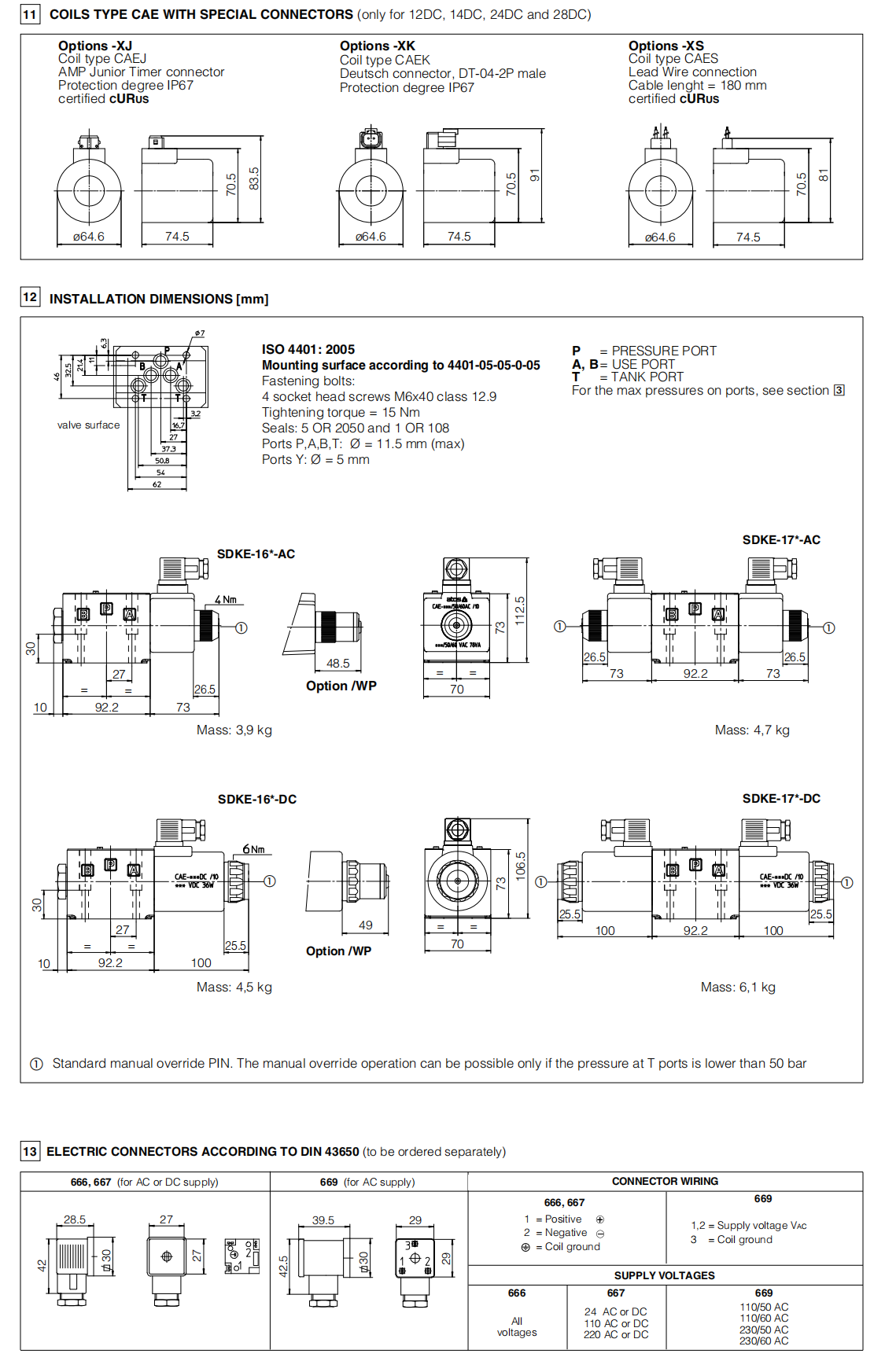

Mounting surface: ISO 4401 size 10
Max flow: 150 l/min
Max pressure: 350 bar
Insulation class: H (180°C) for DC coils F (155°C) for AC coils
Protection degree to DIN EN 60529: IP65
Relative duty factor: 100%
Ambient temperature:Standard execution = -30°C +70°C /PE option = -20°C-+ 70°C /BT option = -40°C- +70°C
Operating pressure: Ports P ,A,B: 350 bar; Port T210 bar for DC version (250 bar with option M); 160 bar for AC version
Maximum flow: 150 l/min, see operating limits at section
Flame resistant with water: NBR, HNBR HFC
Assembly position / location Any position for all valves except for type- 170* (without springs) that must be instaed with hori- zontal axis if operated by impulses
Subplate surface finishing Roughness index Ra 0,4 - flatness ratio 0,01/100 (ISO 1101)
MTTFd values according to EN ISO 13849 150 years, for further details see technical table P007
Ambient temperature Standard execution = -30°C +70°C /PE option = -20°C-+ 70°C /BT option = -40°C- +70°C
Seals, recommended fluid temperature NBR seals (standard) = -20C + +80*C, with HFC hydraulic fluids = -20*C +50C FKM seals (/PE option)= -20°C + +80C HNBR seals (/BT option)= -40°C - +60°C, with HFC hydraulic fluids= -40°C to +50°C
Recommended viscosity 15-100 mm2/s - max allowed range 2.8 + 500 mm2/s
Max fluid contamination level IS04406 class 20/18/15 NAS1638 class 9, see also fliter section at www.atos .com or KTF Ccatalog
Hydraulic fluid Suitable seals type Classification Ref. Standard
Mineral oils NBR, FKM, HNBR HL, HLP, HLPD, HVLP, HVLPD DIN 51524
Flame resistant without water FKM HFDU, HFDR ISO 12922
Flame resistant with water NBR, HNBR HFC
Flow direction As shown in the symbols of table
Operating pressure Ports P ,A,B: 350 bar; Port T210 bar for DC version (250 bar with option M); 160 bar for AC version
Rated flow See diagrams Q/Ap at section
Maximum flow 150 l/min, see operating limits at section

ATOS Direct Operated Double Solenoid Directional Valves SDKE-1711 10S SDKE-1716 10S

ATOS Direct Operated Double Solenoid Directional Valves SDKE-1711 10S SDKE-1716 10SATOS Direct Operated Double Solenoid Directional Valves SDKE-1711 10S SDKE-1716 10S

ATOS Direct Operated Double Solenoid Directional Valves SDKE-1711 10S SDKE-1716 10S
Spool type, two or three position direct operated valves with threaded solenoids.
Solenoids are made by:
• wet type screwed tube, different for AC and DC power supply, with integrated
manual override pin
• interchangeable coils, specific for AC or DC power supply, easily replaceable
without tools - see section 5 for available voltages
Standard coils protection IP65.
Optional coils are available with IP67 AMP Junior Timer, Deutsch, lead wire
connections (options XJ, XK, XS) or with North American Standard Certification
CURUS, without connector (option XUL).
Wide range of interchangeable spools , see section 2.
The valve body is 3 chamber type made by shell-moulding casting with wide
internal passages ensuring low pressure drops
