General Pneumatic Butterfly Valve In Ventilation And Air Conditioning Systems HVAC Industry
General Pneumatic Butterfly Valve In Ventilation And Air Conditioning Systems HVAC Industry
Specifications
Brand Name :
VESON
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
Fob Shanghai ,EXW
Payment Terms :
L/C, T/T
Supply Ability :
10000
Delivery Time :
5-8 days
Packaging Details :
plywood case with reforinced packing
Butterfly Valve :
Wafer Type
Type :
Double acting or Spring return
Name :
air operated butterfly valve
Pressure range :
25mm - 200mm: 16 bar 250mm - 300mm: 10 bar
Temperature range :
-10oC to 120oC
Application :
General
Description

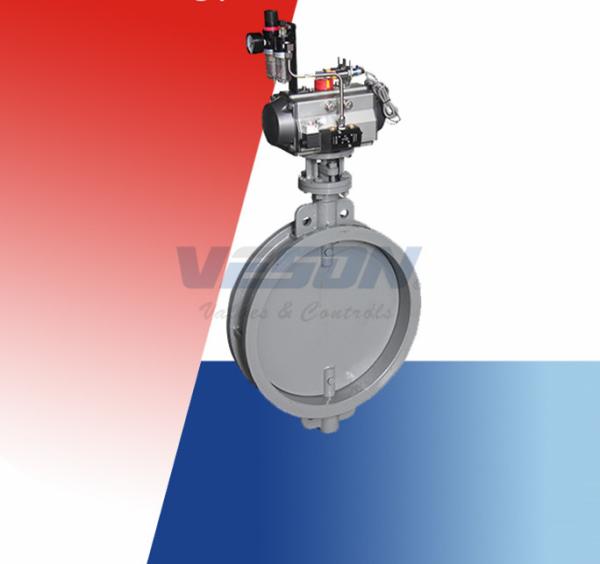

Butterfly Valves With Pneumatic Actuator In Ventilation And Air Conditioning Sys-tems HVAC Industry
General purpose valve with an EPDM liner, offering a long life with low maintenance. Self-lubricating bearings ensure perfect guiding and turning of the shaft without seizure or premature wear.
These valves are supplied completely assembled with either single (spring return) or double acting pneumatic actuators.
All valve and actuator packages are tested and issued with certification confirming the actuators functionality before dispatch.
Approvals, Features & Benefits
• WRAS approved valve**
• Suitable for wafer fitting between PN6/10/16, ANSI 150, D/E flanges
• Epoxy coated body
• Complete assembled package
• Air connection to Namur/VDE 3845 on the actuator
• Double or single (spring return) acting actuator
** 50mm - 300mm only, contact sales for options
Pressure & Temperature
Pressure range: -
25mm - 200mm: 16 bar 250mm - 300mm: 10 bar
Temperature range*: -
-10oC to 120oC
SIZE DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300
A 33 33 33 43 46 46 52 56 56 60 68 78
B 65 73 82 89 102 118 150 174 205 260 318 376
C 51 56 63 62 69 90 106 119 131 166 202 235
D 104 110 116 126 136 150 170 180 200 230 266 292
E* (s) 90 90 109 120 133 133 143 191 191 230 (m) (m)
E* (d) 90 90 90 90 109 109 120 133 143 191 208 230
F (s) 154 154 189 210 229 229 264 337 337 412 488 550
F (d) 154 154 154 154 189 189 210 229 264 337 377 412
Weight Kg (s) 5.2 5.2 4.9 5.8 9.4 12.2 17 21.8 29.8 46.6 66.7 96
Weight Kg (d) 3.7 3.7 3.4 4.3 5.9 7.7 9.7 13.2 15.6 29 48.4 62.2
Air Pressure 2.5 to 8 bar (Based on 5.5 bar air supply as standard) Body Aluminum alloy
Ambient Temp
-15 to 8 oC (Low and high temp versions also available) 0 Springs Stainless Steel
Cycle Life 1,000,000 Operations Piston Seals Nitrile
Indicator Multifunctional position indicator for visual inspection Piston aluminum alloy
Travel Stops Externally adjustable ± 5% in both open & closed position End Caps aluminum alloy
*Special actuator mounting kit required for temperatures above 80ºC, contact sales for details and overall height dimensions
