Stainless Steel Mini Cylinder , Outer Buffer Double Shaft Air Pneumatic Cylinder
Stainless Steel Mini Cylinder , Outer Buffer Double Shaft Air Pneumatic Cylinder
Stainless Steel Mini Cylinder , Outer Buffer Double Shaft Air Pneumatic Cylinder
Stainless Steel Mini Cylinder , Outer Buffer Double Shaft Air Pneumatic Cylinder
Specifications
Brand Name :
PRIUS,XINYI or OEM
Model Number :
DSNU-WPPV
Place of Origin :
Ningbo,China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
20000pcs per month
Delivery Time :
10~15 working days
Packaging Details :
bag+box+catons+pallet
name :
stainless steel mini cylinder
Working Medium :
Air
Buffer Type :
Outer Buffer
Temperature Range :
0-70℃
Type :
Double shaft
Colour :
Black+Nature SS
Description

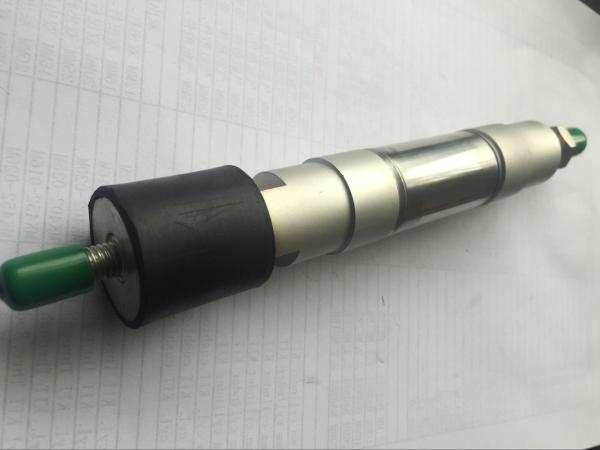

Outer Buffer Double Shaft Stainless Steel Mini Air Cylinder standard Stroke

Quick Detail:

* ISO 6432 standard mini pneumatic air cylinder

* With magnet,air buffer adjustable or rubber cushion for choice

* Stainless steel barrel,Aluminum tube can be optional

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* With guide plate type available

* With self-lubricating bearing,lubrication free

* Bore size 8mm, 10mm,12mm,16mm,20mm,25mm,32mm,40mm,50mm,63mm

* DSNU-KP air lock type available

* Cylinder kits and accessories available

​* Stainless steel mini DSNU double acting Pneumatic air cylinder Bore size 8mm-63mm

Specifiction

Bore (mm) 12 16 20 25 32 40
Motion Pattern Double Acting or Single Acting
Working Medium Air
Fixed Type Normal type/Type LB/Type FA/Type FB/Type SDB
Working Pressure Range 1～9.0 Kgf/cm2
Ensured Pressure Resistance 13.5 Kgf/cm2
Operating Temperature Range 0～70℃
Operating Speed Range 50～800mm/s
Buffer Type Gasket Buffer Adjustable Buffer
Port Size M5x0.8 G1/8″

Stainless Steel Mini Cylinder , Outer Buffer Double Shaft Air Pneumatic Cylinder

Stroke

Bore(mm) Standard Stroke Max.Stroke Permissible Stroke
12 25 50 75 80 100 125 150 160 175 200 300 500
16 25 50 75 80 100 125 150 160 175 200 300 500
20 25 50 75 80 100 125 150 160 175 200 250 300 500 650
25 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 500 650
32 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 500 650
40 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 500 650

Stainless Steel Mini Cylinder , Outer Buffer Double Shaft Air Pneumatic Cylinder

Dimension Sheet

Bore A A1 A2 AM BE BF CD D EE EX EW G KK
12 103 103 87 16 M16 x1.5 16 6 21 M5 19 12 10 M6 x1.0
16 112 112 96 16 M16 x1.5 16 6 21 M5 19 12 10 M6 x1.0
20 125 121 105 20 M22 x1.5 18 8 30 G1/8 27 16 15 M8 x1.25
25 136 134 116 22 M22 x1.5 20 8 30 G1/8 27 16 16 M10 x1.25
32 150 143 125 23 M27 x2.0 20 10 38 G1/8 35 20 16 M10 x1.25
40 150 143 125 23 M33 x2.0 20 10 45 G1/8 42 20 16 M14 x1.5

Bore KU V L L1 MM NI NJ WF Z1 X J AR I AX AY
12 5 - 4 16 6 - - 22 49 - 5 6 10 24 27.5
16 5 - 9 16 6 - - 22 58 - 5 6 10 24 27.5
20 7 22 12 22 8 15 28.5 24 59 2 6 7 12 33 29
25 9 22 12 22 10 15 28.5 28 64 2 6 7 17 33 29
32 10 27 15 27 12 19 36.5 28 72 2 6 12 17 41 36
40 14 33 15 27 16 22.5 43.5 28 72 2 8 11.5 22 51 45
