Rodless Air Cylinder CY1 Series , Double Acting Double Rod Cylinder With Bore 6 - 63mm
Rodless Air Cylinder CY1 Series , Double Acting Double Rod Cylinder With Bore 6 - 63mm
Rodless Air Cylinder CY1 Series , Double Acting Double Rod Cylinder With Bore 6 - 63mm
Rodless Air Cylinder CY1 Series , Double Acting Double Rod Cylinder With Bore 6 - 63mm
Rodless Air Cylinder CY1 Series , Double Acting Double Rod Cylinder With Bore 6 - 63mm
Rodless Air Cylinder CY1 Series , Double Acting Double Rod Cylinder With Bore 6 - 63mm
Specifications
Brand Name :
PRIUS,XINYI or OEM
Model Number :
CY1
Place of Origin :
Ningbo,China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
10000pcs per month
Delivery Time :
10~15 working days
Packaging Details :
bag+box+catons+pallet
name :
double rod air cylinder
Material :
Aluminum
Max Pressure :
0.7MPA
Temperature Range :
-10-60℃
Speed Range :
50~400mm/s
Buffer Type :
Rubber Buffer
Port Size :
M5X0.8/RC1/4"
Action Type :
Double acting
Description

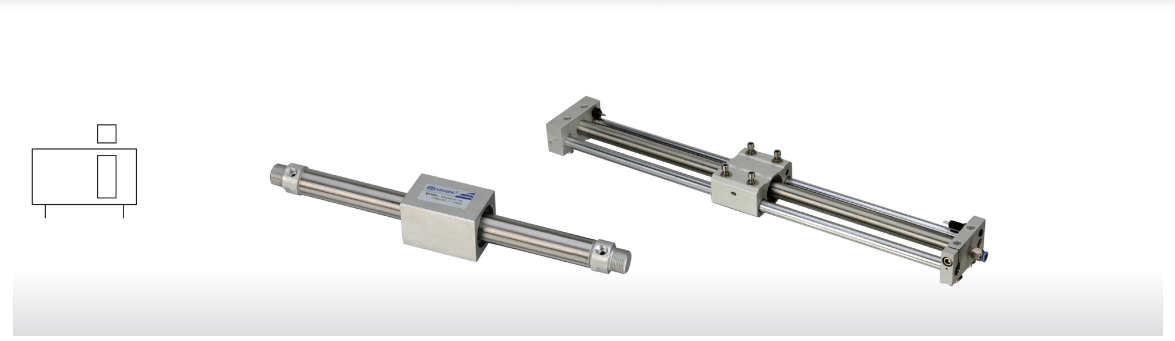

CY1 series Rodless Air Cylinder with Bore from 6-63mm Double Action

SMC type Stainless steel Magnetically coupled Rodless double acting Pneumatic air cylinder Bore size 6mm-63mm e.g.CY1B-25-50 with Rubber cushion

Quick Detail:

* CY1 magnetically coupled rodless pneumatic air cylinder,SMC equvalent

* Sliding type,sliding ball bearing guided type and direct mounting type for option

* Internal piston is connected to an external carriage by means of a magnetic.

* With Rubber buffer,motion smooth,low noise.Shock absorber for CY1L selectable

* Available with high or low magnetic holding force

* Easy and various mounting type

* With self-lubricating bearing,lubrication free

* Bore size6mm, 10mm,15mm,20mm,25mm,32mm,40mm,50mm,63mm

Specifiction

Bore (mm) 6 10 15 20 25 32 40 50 63
Fluid Air
Motion Pattern Double Action
Ensured Pressure Resistance 1.05MPa
Max. Operating Pressure 0.7MPa
Min. Operating Pressure 0.18MPa
Ambient & Medium Temp. ~10 ~ 60 ℃
Working Frequency 50~400mm/s
Buffer Rubber Buffer
Stroke Allowable Error 0~250: +1.0 , 　 251~1000 1.4 　 1001 1.8 　
0 　 0 　 0 　
Lubricate No required
Port Size M5X0.8 Rc(PT) 1/8 Rc(PT) 1/4

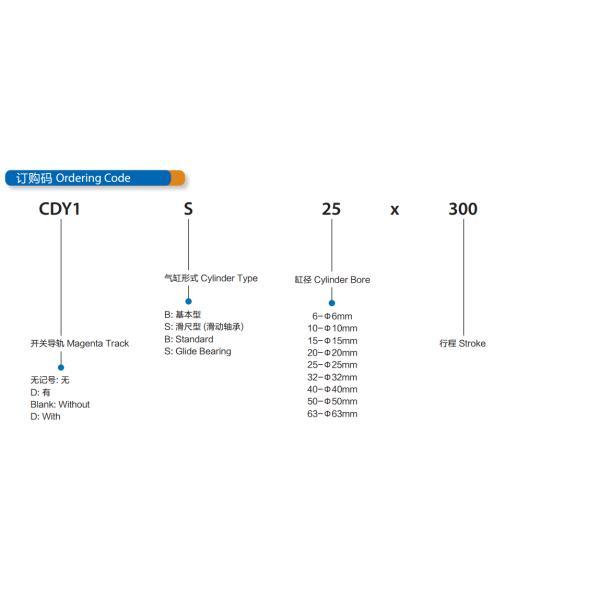

Ordering Code

Rodless Air Cylinder CY1 Series , Double Acting Double Rod Cylinder With Bore 6 - 63mmRodless Air Cylinder CY1 Series , Double Acting Double Rod Cylinder With Bore 6 - 63mm

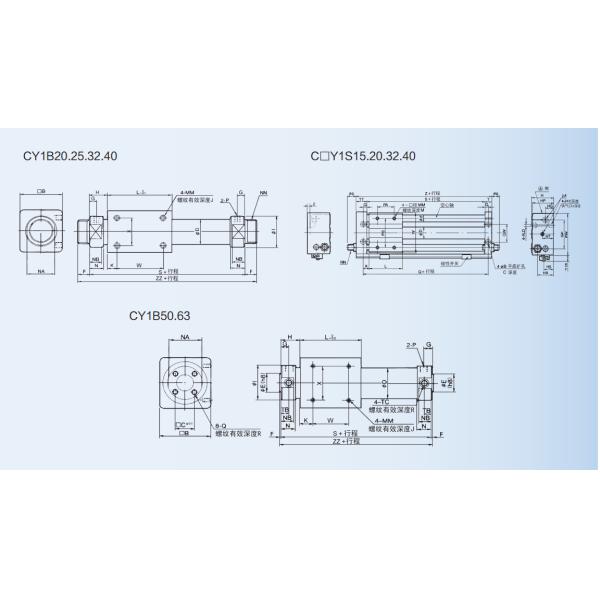

Overall Dimension

Rodless Air Cylinder CY1 Series , Double Acting Double Rod Cylinder With Bore 6 - 63mm

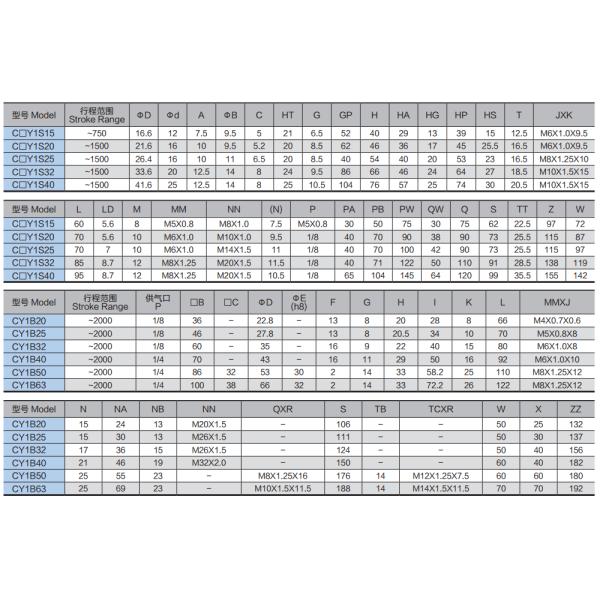

Dimension Sheet

Rodless Air Cylinder CY1 Series , Double Acting Double Rod Cylinder With Bore 6 - 63mm
