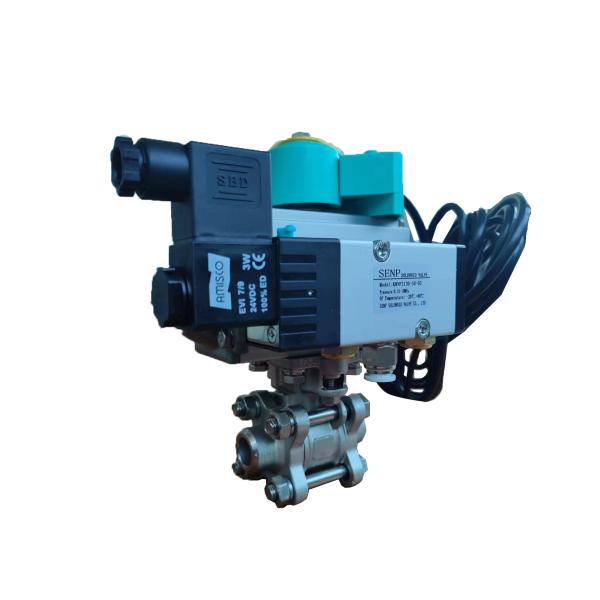

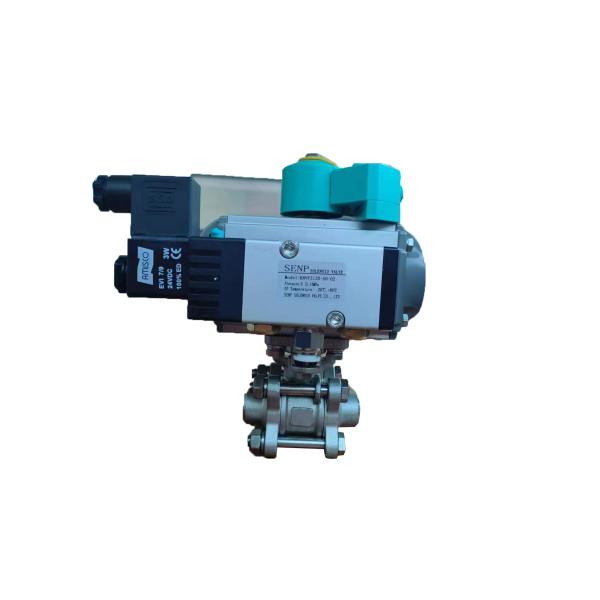

Butt Welding Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve
Butt Welding Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve
Butt Welding Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve
Butt Welding Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve
Butt Welding Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve
Butt Welding Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve
Butt Welding Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve
Butt Welding Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve
Specifications
Brand Name :
FABIA
Model Number :
1/8 inch ～ 36 inch
Certification :
ISO9001,CE,CCS,DNV
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
100-1000 set per week
Delivery Time :
15-30 work days
Packaging Details :
Cartons/Wooden cases
Product Name :
Pneumatic Ball Valve
Material :
Stainless Steel
Actuation Type :
Pneumatic
End :
Butt welding
Port Size :
1/4-8
Control Mode :
On/Off/Modulating
Seal :
EPDM
Media :
Water,oil,Gas,Air,steam
Valve Temperature :
-30℃~+150℃
Pressure Rating :
Class 150 to Class 2500
Description

Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve

1. Description:

Ball valve is mainly used to cut off or connect the medium in the pipeline, and can also be used for fluid regulation and control.

2.Specification:

FABIA Valve Parameter List
Valve type: Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........

3. Features:

  • Fluid resistance is small, ball valve is one of the least fluid resistance of all valves, even if it is a reduced diameter ball valve, its fluid resistance is quite small.
  • Thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
  • Sealing performance of the seat is good, the sealing ring made of polytetrafluoroethylene and other elastic materials, the structure is easy to seal, and the sealing capacity of the ball valve increases with the increase of the medium pressure.
  • Valve stem seal is reliable, because the valve stem is only as if rotating without lifting movement, the packing seal of the valve stem is not easy to destroy, and the sealing capacity increases with the pressure of the medium.
  • Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss with the ball is small, so the service life of the ball valve is long.
  • Lower mounted valve stem and valve stem head convex step to prevent the valve stem ejecta, such as fire caused by the valve stem seal damage, the convex step and the valve body can also form metal contact to ensure the valve stem seal.
  • Anti-static function: set the spring between the ball, valve stem and valve body, which can export the static electricity generated by the switching process.

Butt Welding Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve

Butt Welding Pneumatic Valve Three Plate Stainless Steel Industrial Ball Valve
