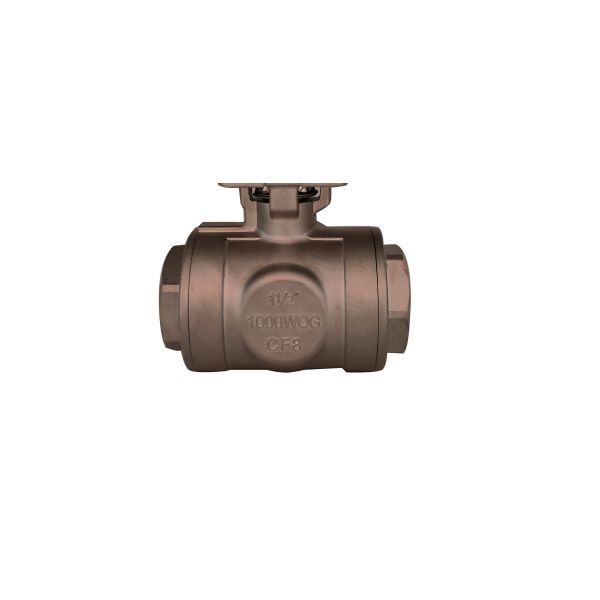

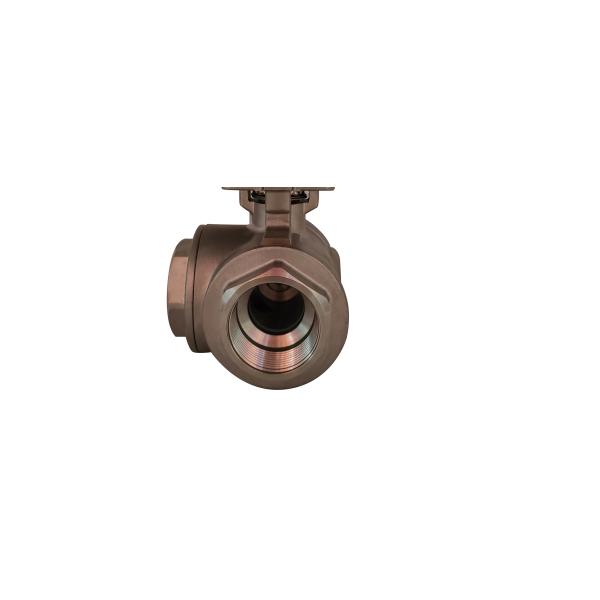

Pneumatic Three-Way Ball Valve With Wedge Sealing
Pneumatic Three-Way Ball Valve With Wedge Sealing
Pneumatic Three-Way Ball Valve With Wedge Sealing
Pneumatic Three-Way Ball Valve With Wedge Sealing
Pneumatic Three-Way Ball Valve With Wedge Sealing
Pneumatic Three-Way Ball Valve With Wedge Sealing
Pneumatic Three-Way Ball Valve With Wedge Sealing
Pneumatic Three-Way Ball Valve With Wedge Sealing
Specifications
Brand Name :
FABIA
Place of Origin :
China
Certification :
ISO9001,CE,CCS,DNV
Model Number :
1/8 inch ～ 36 inch
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Cartons/Wooden cases
Delivery Time :
15-30 work days
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
100-1000 set per week
Product Name :
Pneumatic Three-Way Ball Valve
Valve Type :
Pneumatic Ball Valve
Material :
Stainless Steel
Operation :
Pneumatic
Connection Type :
Threaded
End Connection :
ANSI, DIN, JIS, GB
Actuator :
Pneumatic
Fluid :
Water, Oil, Gas
Pressure :
PN16-40
Seal :
PTFE
Standard :
ANSI, DIN, JIS, GB
Temperature :
30-150 degree Celsius
Description

FABIA Pneumatic Three-Way Ball Valve With Wedge Sealing

1. Description:

Ball valve products are widely used in chemical industry, In the fields of electronics, metallurgy, electroplating, irrigation, sewage treatment, circulating water engineering, etc.

2. Specification:

FABIA Valve Parameter List
Valve type: Pneumatic Three-Way Ball Valve With Wedge Sealing
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........

3. Features:

  • Frictionless opening and closing. This function completely solves the problem that the sealing of traditional valves is affected by the friction between the sealing surfaces.
  • Top type structure. The valve installed on the pipeline can be directly checked and repaired online, which can effectively reduce the device parking and reduce the cost.
  • Low torque design. The valve stem with special structure design can be easily opened and closed with a small hand handle.
  • Valve is sealed by the mechanical force provided by the valve stem, and the ball wedge is pressed to the seat, so that the sealing of the valve is not affected by the change of the pressure difference of the pipeline.
  • Sealing performance is reliably guaranteed under various working conditions.
  • Single seat design. The problem that the medium in the valve cavity is affected by abnormal pressure increase is eliminated.
  • Self-cleaning structure of sealing surface.
  • When the ball tilts away from the seat, the fluid in the pipeline passes 360° evenly along the sealing surface of the ball, which not only eliminates the local erosion of the high-speed fluid on the seat, but also washes away the accumulation on the sealing surface to achieve the purpose of self-cleaning.

Pneumatic Three-Way Ball Valve With Wedge Sealing

Pneumatic Three-Way Ball Valve With Wedge Sealing
