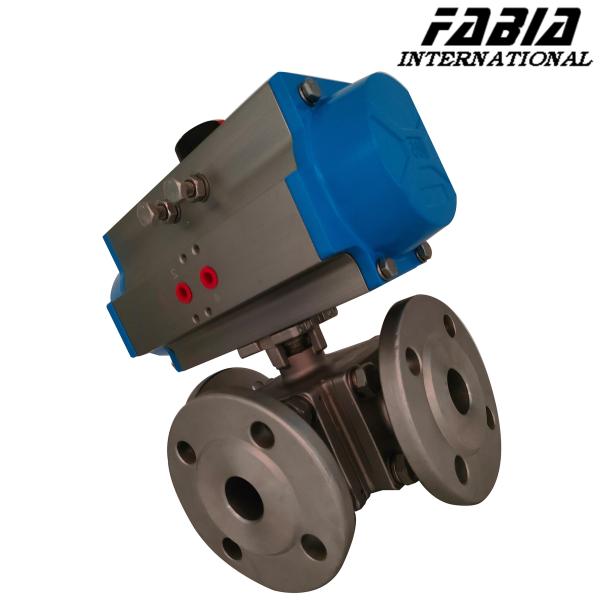

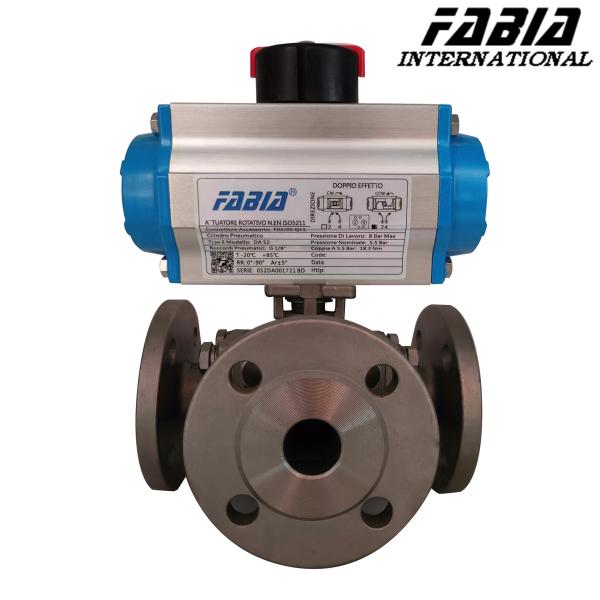

Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Specifications
Brand Name :
FABIA
Model Number :
1/8 inch ～ 36 inch
Certification :
ISO9001,CE,CCS,DNV
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
100-1000 set per week
Delivery Time :
15-30 work days
Packaging Details :
Cartons/Wooden cases
Product Name :
Pneumatic Flanged Ball Valve
Valve Type :
Pneumatic Ball Valve
Material :
Stainless Steel
Operation :
Pneumatic
Connection :
Flange
Pressure :
150-300 BL
Actuator :
Pneumatic
Media :
Water/Oil/Gas
Seal :
Flange
Temperature :
-29℃~+180℃
Description

FABIA Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control

1.Description:

Three-piece flange ball valve,for water, steam, oil, nitric acid, acetic acid and other media equipment.

The valve body casting adopts the advanced technology introduced in Taiwan, with reasonable structure and beautiful shape. The seat adopts elastic sealing structure, reliable sealing, easy opening and closing.

2. Specification:

FABIA Valve Parameter List
Valve type: Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........

3. Features:

  • The valve stem adopts the down-mounted structure with reverse seal, and the valve stem will not be rushed out when the valve. chamber is abnormally pressurized.
  • Drive mode: manual, electric, pneumatic, can set 90° switch positioning mechanism, lock according to need to prevent misoperation
  • Suitable for PN1.0 ~ 4.0MPa.
  • Working temperature -29 ~ 180℃(seal ring for enhanced polytetrafluoroethylene) or -29 ~ 300℃(seal ring for para polystyrene) of various pipelines.
  • Used to cut off or connect the medium in the pipeline. Choose different materials, can be applied to water, steam, oil, nitric acid, acetic acid and other media.

Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control

Pneumatic Flanged Ball Valve 3-Piece Split Type Pneumatic Control
