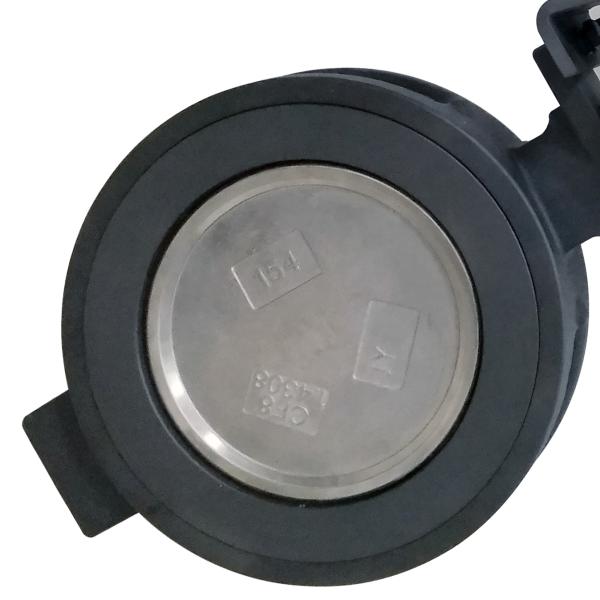

Small Fluid Resistance Hard Sealed Pneumatic Actuator Operated Butterfly Valve
Small Fluid Resistance Hard Sealed Pneumatic Actuator Operated Butterfly Valve
Small Fluid Resistance Hard Sealed Pneumatic Actuator Operated Butterfly Valve
Small Fluid Resistance Hard Sealed Pneumatic Actuator Operated Butterfly Valve
Small Fluid Resistance Hard Sealed Pneumatic Actuator Operated Butterfly Valve
Small Fluid Resistance Hard Sealed Pneumatic Actuator Operated Butterfly Valve
Small Fluid Resistance Hard Sealed Pneumatic Actuator Operated Butterfly Valve
Small Fluid Resistance Hard Sealed Pneumatic Actuator Operated Butterfly Valve
Specifications
Brand Name :
FABIA
Place of Origin :
China
Certification :
ISO9001,CE,CCS,DNV
Model Number :
1/8 inch ～ 36 inch
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Cartons/Wooden cases
Delivery Time :
15-30 work days
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
100-1000 set per week
Product Name :
Pneumatic Clamp Butterfly Valve
Valve Type :
Butterfly
Material :
Carbon Steel
Valve Actuation :
Pneumatic
Valve Connection Type :
Clamp connection
Butterfly valve diameter :
DN15-600
Valve Application :
Water/Oil/Gas
Valve Pressure :
PN10-16
Valve Seal :
PTFE/EPDM
Valve Temperature :
-30℃~+150℃
Description

FABIA Small Fluid Resistance Hard Sealed Pneumatic Butterfly Valve

1. Description:

Butterfly valve is suitable for food. Medicine. Petrochemicals. A power plant. A steel mill. Industrial environmental protection water treatment and high-rise buildings.

Best device for regulating flow and cutting off fluid on the supply and drainage pipe.

2. Specification:

FABIA Valve Parameter List
Valve type: Small Fluid Resistance Hard Sealed Pneumatic Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........

3. Features:

  • Small fluid resistance, large effective flow area when the large diameter pneumatic disc valve is fully opened, opening and closing quickly and labor saving, the disc can be rotated 90 angles to complete the opening and closing,
  • Because the medium force of the disc hand on both sides of the rotating shaft is close to equal, and the torque generated is opposite, so the opening and closing torque is small, and a good seal can be achieved under low pressure.
  • Sealing materials of the disc valve are diacene rubber , fluororubber , food With rubber, lined with tetrafluoroethylene, the sealing performance is good, and the hard seal disc valve is a soft and hard laminated metal sheet with the heavy advantages of metal hard seal and elastic seal, and has excellent sealing performance at low temperature.

Small Fluid Resistance Hard Sealed Pneumatic Actuator Operated Butterfly Valve

Small Fluid Resistance Hard Sealed Pneumatic Actuator Operated Butterfly Valve
