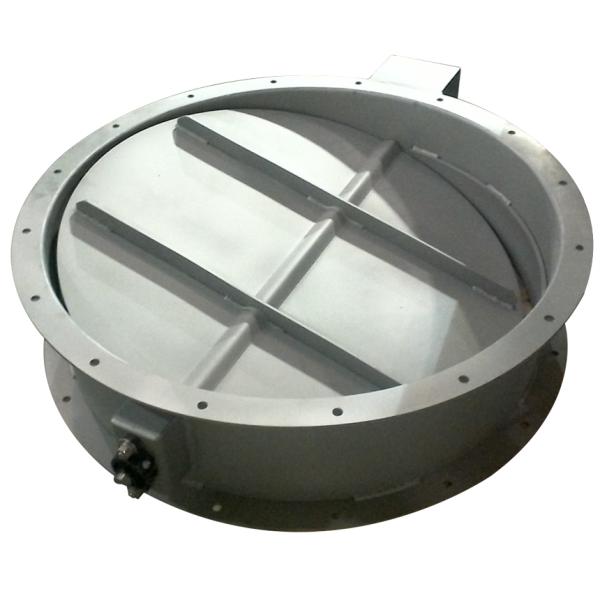

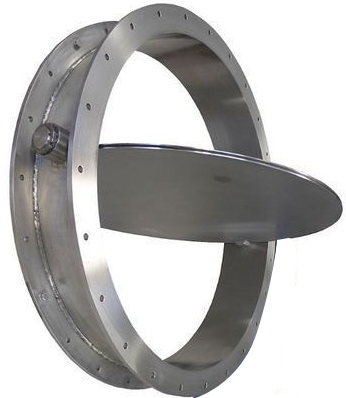

Flanged Ventilation Butterfly Valve Stainless Steel 1 1 2 Inch 14 Inch
Flanged Ventilation Butterfly Valve Stainless Steel 1 1 2 Inch 14 Inch
Flanged Ventilation Butterfly Valve Stainless Steel 1 1 2 Inch 14 Inch
Flanged Ventilation Butterfly Valve Stainless Steel 1 1 2 Inch 14 Inch
Flanged Ventilation Butterfly Valve Stainless Steel 1 1 2 Inch 14 Inch
Flanged Ventilation Butterfly Valve Stainless Steel 1 1 2 Inch 14 Inch
Flanged Ventilation Butterfly Valve Stainless Steel 1 1 2 Inch 14 Inch
Flanged Ventilation Butterfly Valve Stainless Steel 1 1 2 Inch 14 Inch
Specifications
Brand Name :
FABIA
Place of Origin :
China
Certification :
ISO9001,CE,CCS,DNV
Model Number :
1/8 inch ～ 36 inch
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Cartons/Wooden cases
Delivery Time :
15-30 work days
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
100-1000 set per week
Product Name :
Flanged ventilation butterfly valve
Valve Type :
Ventilation butterfly valve
Valve Disc Material :
Stainless Steel
Valve Application :
Ventilation
Valve Connection :
Flange
Valve Operation :
Manual/Electric/Pneumatic
Valve Body Material :
Stainless Steel
Valve Pressure :
PN1.0-PN16
Valve Seat Material :
PTFE
Valve Size :
DN50-DN600
Valve Standard :
API/DIN/JIS/GB
Valve Temperature :
-20℃-150℃
Description

FABIA Flanged Ventilation Butterfly Valve Stainless Steel

1. Description:

Ventilation butterfly valve is used in the cold air or hot air gas pipelines containing dust in the ventilation and environmental protection projects in the chemical industry, building materials, power stations, glass and other industries, as a pipeline control device for regulating the flow rate or cutting off the gas medium.

Type of valve should generally be installed horizontally in the pipeline.

2. Specification:

FABIA Valve Parameter List
Valve type: Flanged ventilation butterfly valve
Size: 1/8 inch ～ 18 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt /Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN10,0～100Mpa
Temperature: -40℃～450℃
Model: FB-DB..........

3. Features:

  • Designed and manufactured by using the new structure form of welding between the middle line type butterfly plate and the short structure steel plate.
  • Advantages of compact structure, light weight, easy installation, small flow resistance, large circulation, avoiding the influence of high temperature expansion and light operation.
  • No connecting rod, bolts, etc., reliable work, long service life.
  • Can be installed in multiple stations, not affected by the flow of media.

Flanged Ventilation Butterfly Valve Stainless Steel 1 1 2 Inch 14 Inch

Flanged Ventilation Butterfly Valve Stainless Steel 1 1 2 Inch 14 Inch
