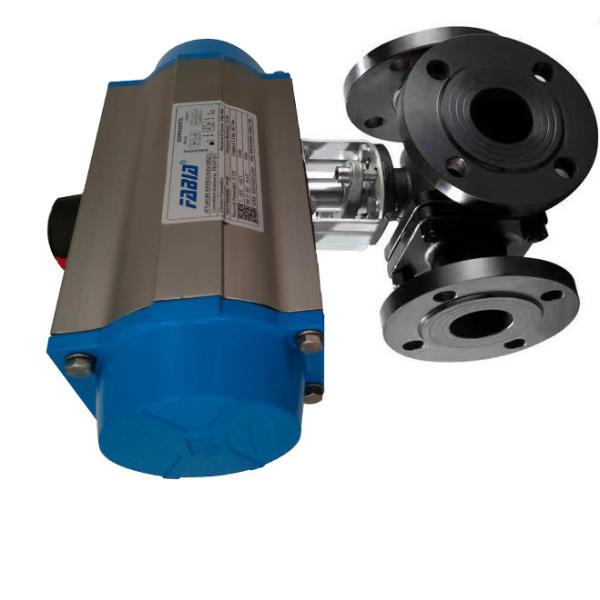

High Temperature High Pressure Ball Valves Pneumatic Three-Way Flange
High Temperature High Pressure Ball Valves Pneumatic Three-Way Flange
High Temperature High Pressure Ball Valves Pneumatic Three-Way Flange
High Temperature High Pressure Ball Valves Pneumatic Three-Way Flange
High Temperature High Pressure Ball Valves Pneumatic Three-Way Flange
High Temperature High Pressure Ball Valves Pneumatic Three-Way Flange
High Temperature High Pressure Ball Valves Pneumatic Three-Way Flange
High Temperature High Pressure Ball Valves Pneumatic Three-Way Flange
Specifications
Brand Name :
FABIA
Place of Origin :
China
Certification :
ISO9001,CE,CCS,DNV
Model Number :
1/8 inch ～ 36 inch
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Cartons/Wooden cases
Delivery Time :
15-30 work days
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
100-1000 set per week
Product Name :
Pneumatic High Pressure Ball Valve
Valve Type :
High Pressure Ball Valve
Valve Bonnet Type :
Standard Flanged
Valve Stem Material :
Stainless Steel
Valve Operation :
Pneumatic
Valve End Connection :
Flanged
Valve Gasket Material :
PTFE
Valve Pressure :
150-2500LB
Valve Seat Material :
PTFE, EPDM
Valve Size :
1/2”-48”
Valve Design Standard :
API, ANSI, DIN, JIS, GB
Valve Temperature Range :
Low Temperature, Normal Temperature, High Temperature
Description

FABIA Pneumatic High Pressure Three-Way Flange Ball Valve

1. Description:

Widely used in chemical, petroleum, electric power, metallurgy and other industries.

Through the combination of pneumatic operation and electronic control system, automatic control can be realized and work efficiency can be improved.

At the same time, the material selection of ball valve can also meet the needs of different working conditions.

2. Specification:

FABIA Valve Parameter List
Valve type: Pneumatic High Pressure Three-Way Flange Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........

3. Features:

  • Fluid is controlled by rotating the sphere.
  • There is a hole on the ball, when the ball rotates, the hole is connected with the pipe, and the fluid can pass smoothly.
  • When the ball rotates to another position, the hole is disconnected from the pipe and the fluid cannot pass through.
  • This kind of structure is simple and easy to maintain.
  • Pneumatic high pressure three-way flange ball valve is easy to operate.
  • Can be controlled automatically by pneumatic actuators.
  • Only by controlling the switch of the air source, you can control the switching state of the ball valve.








High Temperature High Pressure Ball Valves Pneumatic Three-Way Flange

High Temperature High Pressure Ball Valves Pneumatic Three-Way Flange
