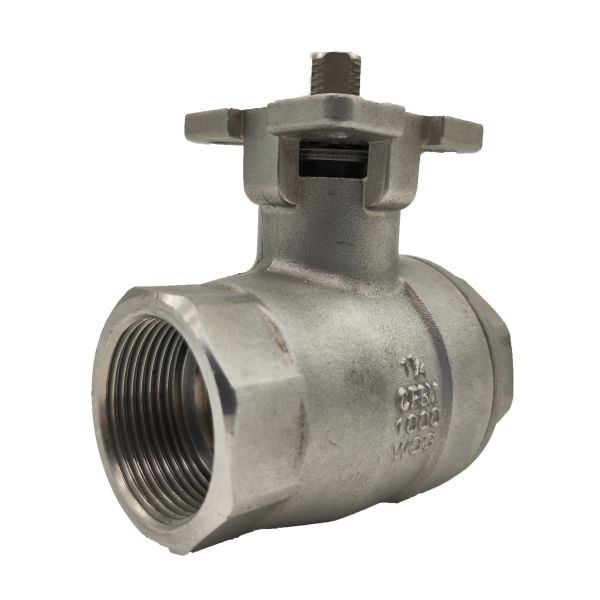

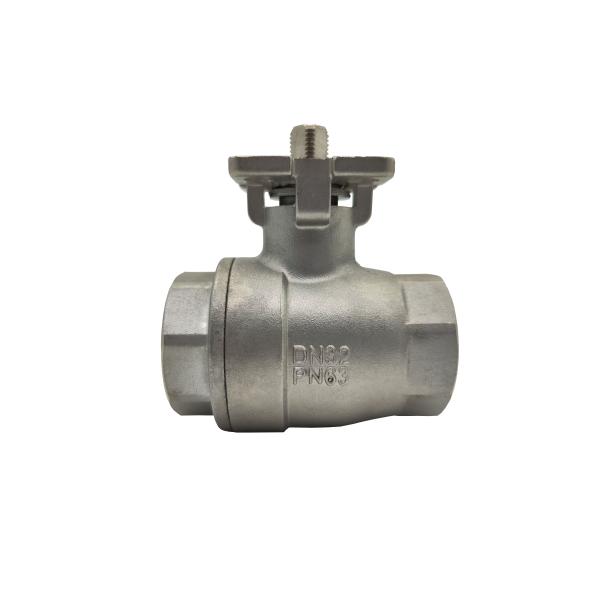

Electric High Pressure Two Piece Ball Valve With Internal Teeth
Electric High Pressure Two Piece Ball Valve With Internal Teeth
Electric High Pressure Two Piece Ball Valve With Internal Teeth
Electric High Pressure Two Piece Ball Valve With Internal Teeth
Electric High Pressure Two Piece Ball Valve With Internal Teeth
Electric High Pressure Two Piece Ball Valve With Internal Teeth
Electric High Pressure Two Piece Ball Valve With Internal Teeth
Electric High Pressure Two Piece Ball Valve With Internal Teeth
Specifications
Brand Name :
FABIA
Place of Origin :
China
Certification :
ISO9001,CE,CCS,DNV
Model Number :
1/8 inch ～ 36 inch
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Cartons/Wooden cases
Delivery Time :
15-30 work days
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
100-1000 set per week
Product Name :
Two-Piece Ball With Internal Teeth
Valve Type :
High Pressure Ball Valve
Valve Operation Type :
Electric
Valve Bonnet Type :
Standard
Valve Connection Type :
Threaded
Valve Application :
Petroleum, Chemical, Power, etc
Valve Pressure Class :
PN10
Valve Design Standard :
API 6D
Valve Pressure Rating :
1000 PSI
Valve Seat Material :
PTFE/EPDM
Valve Size :
8-inch
Valve Temperature Rating :
200℃
Valve Certification :
ISO 9001
Description

FABIA Electric High Pressure Two-Piece Ball Valve With Internal Teeth

1. Description:

Widely used in petroleum, chemical industry, urban water supply and drainage and other conditions requiring strict cut-off.

2. Specification:

FABIA Valve Parameter List
Valve type: Electric High Pressure Two-Piece Ball Valve With Internal Teeth
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........

3. Features:

  • Fluid resistance is small, and the full-diameter electric ball valve basically has no flow resistance.
  • Simple and convenient structure, small size and light weight.
  • Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.
  • Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
  • Tight and reliable. It has two sealing surfaces, and at present, the sealing surface material of the electric ball valve is widely used in various plastics, which has good sealing property and can achieve complete sealing.
  • Also been widely used in vacuum systems.
  • When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through.
  • Because the electric ball valve with internal thread has wipeability in the opening and closing process, it can be used in the medium with suspended solid particles.

Electric High Pressure Two Piece Ball Valve With Internal Teeth

Electric High Pressure Two Piece Ball Valve With Internal Teeth
