Pneumatic High Pressure Two Way Butt Welding Ball Valve
Pneumatic High Pressure Two Way Butt Welding Ball Valve
Pneumatic High Pressure Two Way Butt Welding Ball Valve
Pneumatic High Pressure Two Way Butt Welding Ball Valve
Pneumatic High Pressure Two Way Butt Welding Ball Valve
Pneumatic High Pressure Two Way Butt Welding Ball Valve
Pneumatic High Pressure Two Way Butt Welding Ball Valve
Pneumatic High Pressure Two Way Butt Welding Ball Valve
Specifications
Brand Name :
FABIA
Place of Origin :
China
Certification :
ISO9001,CE,CCS,DNV
Model Number :
1/8 inch ～ 36 inch
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Cartons/Wooden cases
Delivery Time :
15-30 work days
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
100-1000 set per week
Product Name :
FABIA Pneumatic High Pressure Ball Valve
Valve Type :
High Pressure Ball Valve
Material :
Stainless Steel
Operation :
Pneumatic
Actuator :
Two Way
Connection Type :
Butt Weld
Seal Material :
PTFE, PEEK
Flow Characteristic :
Linear, Equal Percentage
Size :
1/2-8 Inch
Pressure Rating :
1000-6000 PSI
Certificate :
ISO 9001, CE, API
Temperature Range :
-20°C to +200°C
Design Standard :
API 6D, API 608, ANSI B16.34
End Connection :
NPT, BSPT, BSPP, DIN259/2999
Description

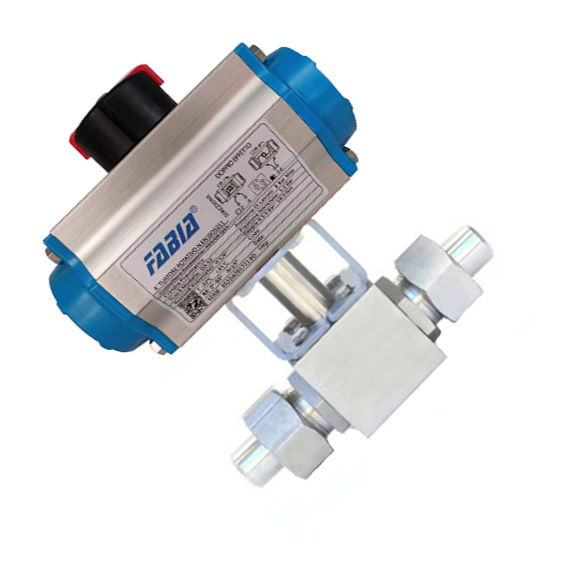

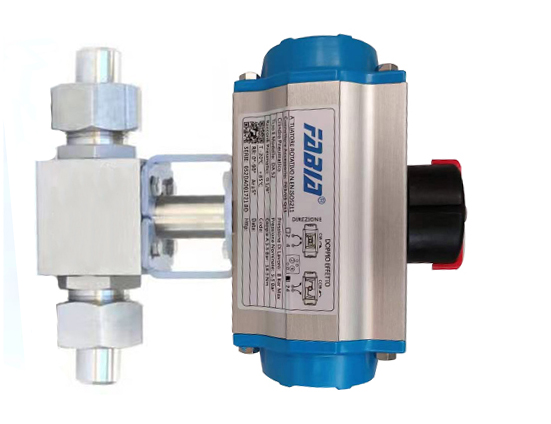

FABIA Pneumatic High Pressure Two Way Butt Welding Ball Valve

1. Description:

Pneumatic butt welding ball valve is widely used, mainly used in petrochemical, chemical, pharmaceutical, metallurgy and other industries of high temperature, high pressure pipeline media cut off and flow regulation.

2. Specification:

FABIA Valve Parameter List
Valve type: Pneumatic High Pressure Two Way Butt Welding Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........

3. Features:

  • Butt welding connection method, easy installation, no need for pipe support.
  • Valve seal performance is good, zero leakage.
  • Use pneumatic actuator  control, simple and convenient operation.
  • Can be applied to the pipeline system under high temperature, high pressure and other harsh working conditions.
  • Good corrosion resistance and can be used for a variety of strong corrosive media.
  • Compact structure, small size, occupy a small space, suitable for some narrow space.

Pneumatic High Pressure Two Way Butt Welding Ball Valve

Pneumatic High Pressure Two Way Butt Welding Ball Valve
