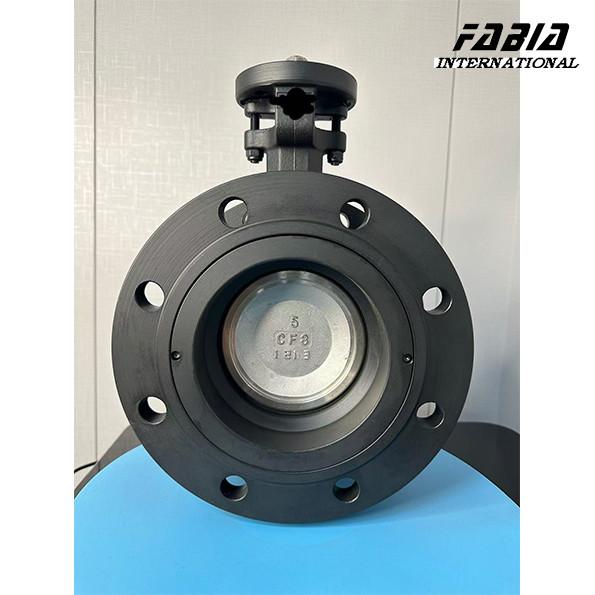

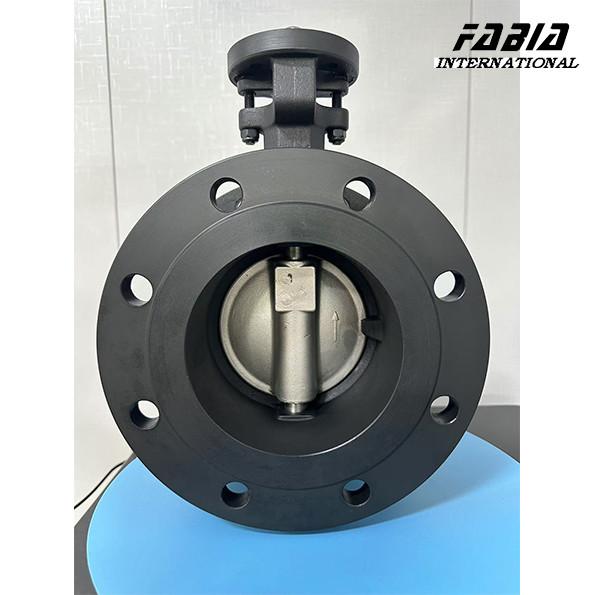

8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve
8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve
8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve
8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve
8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve
8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve
8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve
8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve
Specifications
Brand Name :
FABIA
Model Number :
1/8 inch ～ 36 inch
Certification :
ISO9001,CE,CCS,DNV
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
100-1000 set per week
Delivery Time :
15-30 work days
Packaging Details :
Cartons/Wooden cases
Product Name :
high perforamnce Double Eccentric butterfly valve
Valve Type :
Manual
Temperature Rating :
High Temperature
Actuation :
Air
Connection Type :
clamp/wafer
Connection :
clamp/wafer
Material :
Carbon Steel
Media :
Air, Water, Oil
Operation :
Pneumatic
Pressure Rating :
150 PSI
Valve Design :
Standard
Description

8 Inch worm gear iron steel high perforamnce Double Eccentric butterfly valve water valve

1. Description:

The Manual Turbine Double-Eccentric Butterfly Valve, also known as a double-offset butterfly valve, is designed for precise flow control in demanding applications. Its double-eccentric design minimizes friction between the disc and the seat, extending valve life and ensuring bubble-tight sealing even under high-pressure conditions. Equipped with a manual turbine actuator, this valve allows for smooth, easy operation, even in large-diameter pipelines.

2. Specification:

FABIA Valve Parameter List
Valve type: high perforamnce Double Eccentric butterfly valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt /Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D....

3. Features:

  • Double-Eccentric Design: Reduces friction and wear, extending valve life and providing reliable, tight sealing even in high-pressure systems.
  • Manual Turbine Operation: The gear-operated manual turbine mechanism offers easy and precise control with minimal effort, making it suitable for large-diameter valves.
  • Durable Construction: Made from high-grade materials such as stainless steel or carbon steel, ensuring excellent corrosion resistance and durability in harsh environments.
  • High-Performance Sealing: Metal or soft sealing options (e.g., PTFE, EPDM) provide tight shutoff for various media, preventing leaks even under demanding conditions.
  • Versatile Installation: Compatible with both wafer and flange connections, offering flexibility in installation.

8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve

8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve

8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve

8 Inch Worm Gear Iron Steel High Perforamnce Double Eccentric Butterfly Water Valve
