Pneumatic Carbon Steel Flanged Butterfly Valve Low Maintenance For Pulp And Paper Mills
Pneumatic Carbon Steel Flanged Butterfly Valve Low Maintenance For Pulp And Paper Mills
Pneumatic Carbon Steel Flanged Butterfly Valve Low Maintenance For Pulp And Paper Mills
Pneumatic Carbon Steel Flanged Butterfly Valve Low Maintenance For Pulp And Paper Mills
Pneumatic Carbon Steel Flanged Butterfly Valve Low Maintenance For Pulp And Paper Mills
Pneumatic Carbon Steel Flanged Butterfly Valve Low Maintenance For Pulp And Paper Mills
Pneumatic Carbon Steel Flanged Butterfly Valve Low Maintenance For Pulp And Paper Mills
Pneumatic Carbon Steel Flanged Butterfly Valve Low Maintenance For Pulp And Paper Mills
Specifications
Brand Name :
FABIA
Model Number :
1/8 inch ～ 36 inch
Certification :
ISO9001,CE,CCS,DNV
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
100-1000 set per week
Delivery Time :
15-30 work days
Packaging Details :
Cartons/Wooden cases
Product Name :
Pneumatic Flanged Butterfly Valve
Valve Type :
Butterfly
Valve Material :
Carbon steel
Valve Operation :
pneumatic
Valve Connection :
Flanged
Valve Application :
Petroleum, Chemical, Power, etc.
Valve Body :
Carbon steel
Valve Pressure :
1.6MPa
Valve Seat :
NBR、EPDM、Vition
Valve Temperature :
-30℃~+120℃
Description

Centerline Pneumatic Stainless Steel Flanged Butterfly Valve

1. Description:

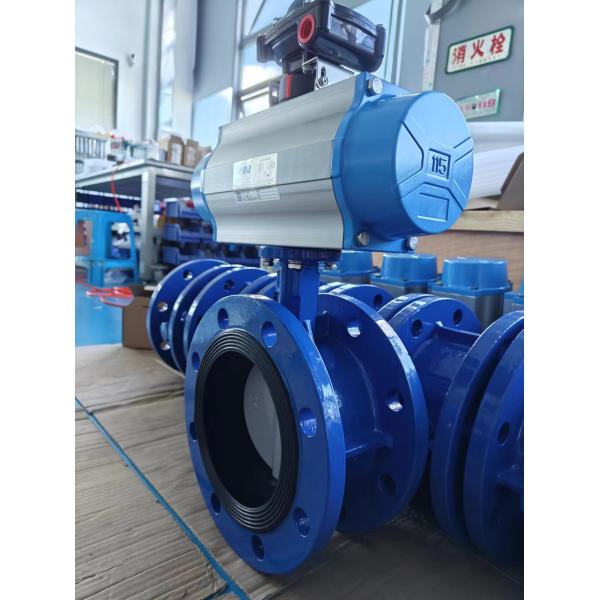

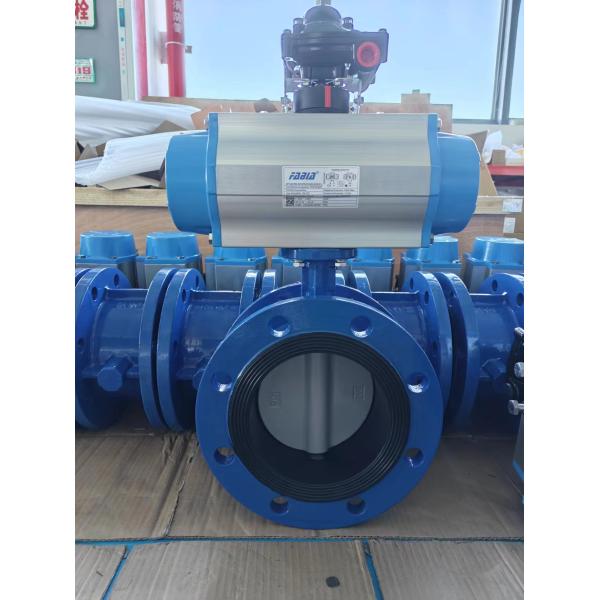

Centerline Pneumatic Carbon Steel Flanged Butterfly Valve is composed of a pneumatic actuator and a flanged soft seal butterfly valve, which is suitable for regulating the flow and stopping the medium on the water supply and drainage pipe of food, medicine, chemical industry, petroleum, electric power, textile, paper making and other gas pipes with the temperature ≤120℃ and nominal pressure ≤1.6MPa.

This valve combines durable stainless steel construction with soft-seated sealing, ensuring reliable performance and efficient flow control in various industrial applications.

2. Specification:

Attribute Name Attribute Value
Product Name Pneumatic Flanged Butterfly Valve
Valve Type Butterfly
Valve Material Stainless Steel
Valve Operation Pneumatic
Valve Connection Flanged
Valve Application Petroleum, Chemical, Power, etc.
Valve Body Material Carbon Steel
Valve Pressure 1.6 MPa
Valve Seat Material NBR, EPDM, Viton
Valve Temperature -30°C to +120°C
Actuator Type Pneumatic
Leakage Class ANSI Class VI, ISO 5208 Class D
Fire Safe Design API 607, ISO 10497
Certification API, ISO, CE

3. Features:

  • Good two-way sealing performance, small torque value.
  • Flow characteristics tend to be straight, good adjustment performance.
  • Flange connection installation is convenient, vertical, horizontal installation can be.
  • Diversity of sealing materials, available for users to choose.
  • Can be used for pipe end as a vent valve, reliable performance.
  • Valve seat sealing ring is organically combined with the valve body to make the valve have a long service life.
  • Flange type soft seal butterfly valve design is simple, reasonable, compact structure, light weight, fast opening and closing.
  • Small torque, easy to operate, labor-saving dexterity.
  • Can be installed in any position, easy maintenance.
  • Seal can be replaced, sealing to achieve bi-directional sealing zero leakage.
  • Sealing material aging resistance, long service life, etc.
