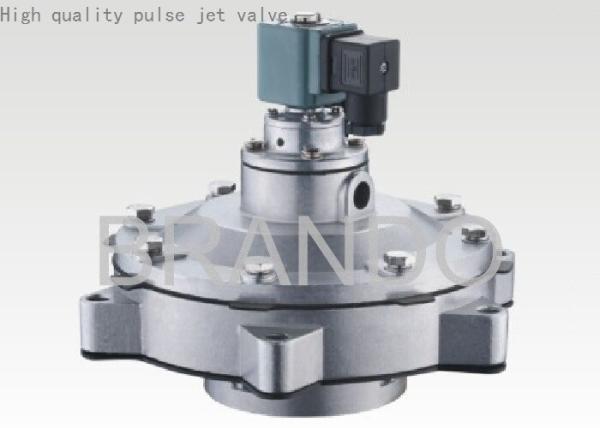

Electrical Signal Controlled DMF Series pulse solenoid valve B DMF - Y - 76S for Dust Remove

Our range of Pulse Valves are fabricated from high grade raw materials. We have made our solenoid operated pulse valves using state of the manufacturing techniques. With assured functionality in its operations, our products are widely used by different OEMs across the world.

Pulse Valves offered finds usage in handing gas instantly once electrical signal is received and comes designed and developed as per industry standards. Further, these electromagnetic pulse valves is controlled through electrical signal that attracts the moving bar which in turn uncloses balancing hole for quickly releasing pressure gas in back cavity of diaphragm. Some of its features include presence of damping hole in diaphragm for damping airflow in situation where moving bar of armature holds up for balancing; provide for optimum performance support, can also be custom configured as per the specific demands of the customers.

B DMF-Y-76S dust bag collector pulse valve working technical parameter:

1 Inch B DMF-Y-76S Type Pulse Valve Specification and Unit Net Weight:

Electromagnetic Pulse Jet Solenoid Valve/ Diaphragm Valve B MDF-Y-76S Working Principle:
The pulse valve diaphragm is divided into two, gas chamer (Front & Back), when switching compressed air, compressed air through the throttle orifice into the gas chamber after at this time of the gas chamber pressure will diaphragm components.
Close to the valve outlets, pulse valve is in " closed" status. Pulse injection control instrument signal that the pulse valve bit back, after the gas room put stomatal open, and the gas chamber pressure loss after quickly, diaphragm components moved the compressed air. A valve lose export injection, pulse valve in the " open " status. Pulse injection control instrument signal disappears, solenoid pulse valve bit reset, gas after . Room put stomatal closure, the gas chamber pressure after increase is clingy valve diaphragm components of outlets, solenoid pulse valve and in " closed" status.

Structure Instruction of DMF-Y Type Pulse Valve:

Material of Components on Pulse Jet Valve:

Details of Pulse Jet Valve BDMF-Y-76S Y Type pls check above photo in display window.

Overall Dimensions of B DMF-Y-76S Pulse Valve:

We also sell kits, such as solenoid coil and armature assembly:

Dust Collector Pulse Valve Application:

Welcome your any question, we will reply at once, pls email to:
