CNOMO 30mm 3/2 Way Pneumatic Solenoid Valve Coil 12V 24V 110V 220V
CNOMO 30mm 3/2 Way Pneumatic Solenoid Valve Coil 12V 24V 110V 220V
Specifications
Brand Name :
BRANDO
Model Number :
BB09030027
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Product Name :
Solenoid Valve Coil
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power :
2W, 3W, 6W, 7W, 7.5W, 2.5VA, 5VA, 7VA, 8VA
Connector :
DIN43650A
Protection Class :
IP65
Insulation Class :
F, H
Description

CNOMO 30mm 3/2 Way Pneumatic Solenoid Valve Coil 12V 24V 110V 220V

This solenoid coil is same with AMISCO EVI 30/9, which is popularly used in CNOMO 30mm pneumatic solenoid valves. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Power: 2W, 3W, 6W, 7W, 7.5W, 2.5VA, 5VA, 7VA, 8VA. CNOMO direct solenoid valves are poppet valves 3 ways, ready to be assembled on the 06-05-80 CNOMO standard base. Available in the normally closed and normally opened version with or without manual operator. As standard, manual operator works with push and push+turn function in order to satisfy all needs.

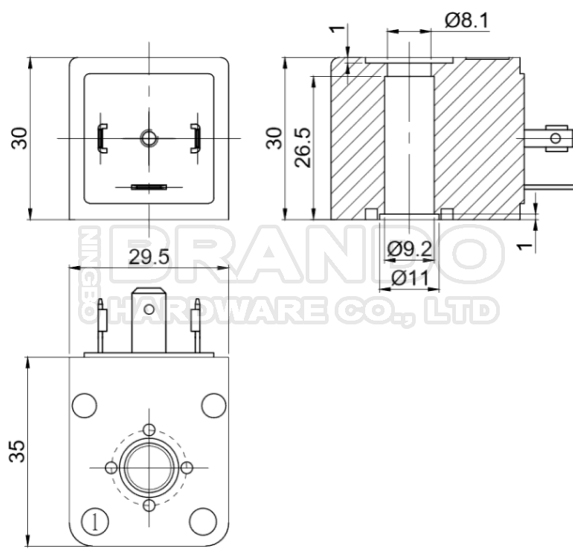

Dimension & Data of Solenoid Valve Coil, Armature:

CNOMO 30mm 3/2 Way Pneumatic Solenoid Valve Coil 12V 24V 110V 220V

BRANDO Model
BB09030027
Voltage
12VDC, 24VDC, 24VAC,
110VAC, 220VAC
Power
2W, 3W, 6W, 7W, 7.5W,
2.5VA, 5VA, 7VA, 8VA
Other voltage and power can be customized
Connector
DIN43650B
Insulation Class
F, H

CNOMO 30mm 3/2 Way Pneumatic Solenoid Valve Coil 12V 24V 110V 220V

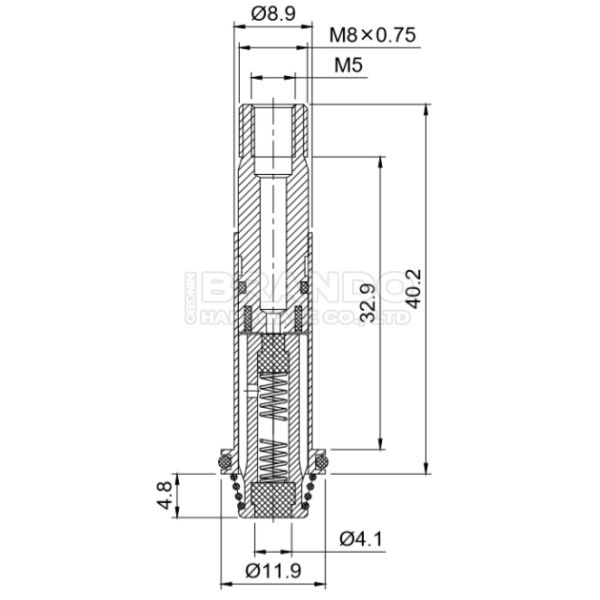

BRANDO Model
BAPC308932018
Function
3 Way Normally Closed
Plunger Tube Material
Brass
Seal Material
NBR, EPDM, FKM
Connection Type
Flange With O-ring Groove

Video of Solenoid Valve Coil:

BRANDO Solenoid Valve Coils Production Video:

More Pneumatic Products for you to choose:

Pneumatic Solenoid Valve Air Pilot Pneumatic Valve Push Pull Air Valve Hand Level Air Valve
Pneumatic Food Pedal Valve Pneumatic Hose Fitting Filter Regulator Lubricator Pneumatic Cylinder


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
