AR2000-02 SMC Type Pneumatic Air Pressure Regulator With Gauge 1/4'' 10 bar
AR2000-02 SMC Type Pneumatic Air Pressure Regulator With Gauge 1/4'' 10 bar
AR2000-02 SMC Type Pneumatic Air Pressure Regulator With Gauge 1/4'' 10 bar
AR2000-02 SMC Type Pneumatic Air Pressure Regulator With Gauge 1/4'' 10 bar
Specifications
Brand Name :
BRANDO
Model Number :
AR2000-02
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Pneumatic Regulator
Fluid :
Air
Port Size :
G1/4''
Adjustable Pressure Range :
0.5 to 8.5 bar
Max Pressure :
10 bar
Proof Pressure :
15 bar
Description

AR2000-02 SMC Type Pneumatic Air Pressure Regulator With Gauge 1/4'' 10 bar

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime.

1. Pneumatic Filter: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.

2. Pneumatic Regulator: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.

3. Pneumatic Lubricator: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

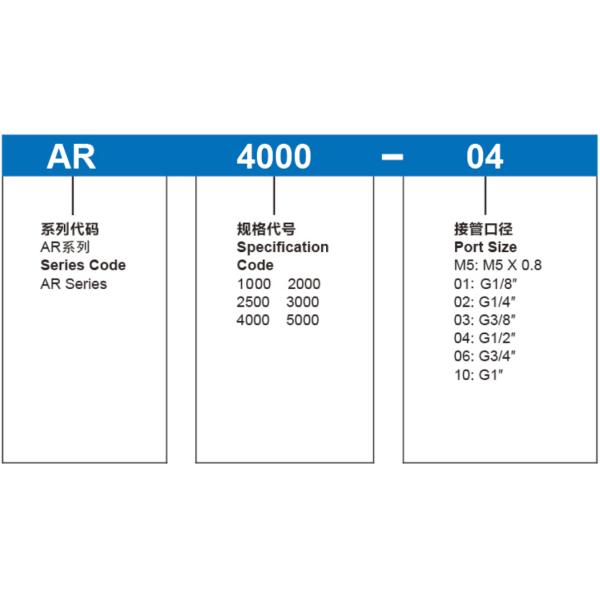

Order Code:

AR2000-02 SMC Type Pneumatic Air Pressure Regulator With Gauge 1/4'' 10 bar

Technical Data:

Model No
AR1000
AR2000
AR2500
AR3000
AR4000
AR5000
Rated Flow
100
550
2000
2500
6000
8000
Port Size
M5
G1/8''
G1/4''
G1/4''
G3/8''
G1/4''
G3/8''
G3/8''
G1/2''
G3/4''
G3/4''
G1''
Adjustable Pressure Range
0.5 to 8.5 bar
Max Working Pressure
10 bar
Proof Pressure
15 bar
Working Temperature
5 to 60℃
Valve Type
With Overflow

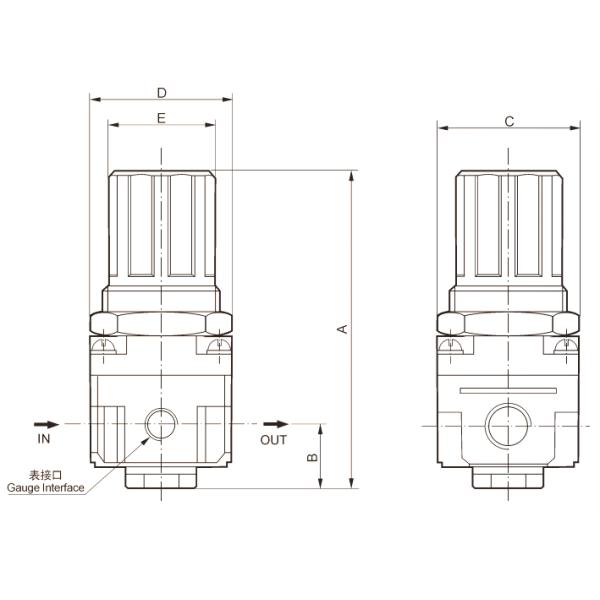

Main Dimension:

AR2000-02 SMC Type Pneumatic Air Pressure Regulator With Gauge 1/4'' 10 bar
Model No
Port Size
A
B
C
D
E
AR1000
M5
61.5
11
25
25
28
AR2000
G1/8'', G1/4''
95
17
40
40
34
AR2500
G1/4'', G3/8''
102.5
25
48
53
34
AR3000
G1/4'', G3/8''
127.5
35
53
53
40
AR4000
G3/8'', G1/2''
149.5
37.5
70
70
54
AR4000-06
G3/4''
154
40.5
70
75
54
AR5000
G3/4'', G1''
168
48
90
90
54
