SS304 Stainless Steel Pneumatic Air Cylinders MA MAC MSA MTA Series
SS304 Stainless Steel Pneumatic Air Cylinders MA MAC MSA MTA Series
SS304 Stainless Steel Pneumatic Air Cylinders MA MAC MSA MTA Series
SS304 Stainless Steel Pneumatic Air Cylinders MA MAC MSA MTA Series
Specifications
Brand Name :
BRANDO or OEM
Model Number :
MA
Certification :
CE ISO
Place of Origin :
NINGBO, CHINA
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS PER MONTH
Delivery Time :
7 working days after payment
Packaging Details :
Bubble bag, wooden carton, pallet
Part Name :
MA mini pneumatic cylinder
Material :
SS304
Standard or Non-standard :
Standard
Structure :
Plunger Cylinder
Power :
Pneumatic
Maximum Stroke :
500
Description

SS304 Stainless Steel Pneumatic Air Cylinders MA MAC MSA MTA Series

Product features:

1 Execute the enterprise standard.
2 Piston seal uses heterogeneous two-way seal structure; compact size; oil storage.
3 Crash cushions are attached to the front and back covers to reduce reversing impact on the cylinder.
4 Back covers of specifications ensure more convenience in cylinder installation.
5 Front and back covers are connected to the cylinder by riveting agglomeration structure, reliable conjunction.
6 Cylinder body is made of highly precise stainless steel tube, high intensity, resistant to corrosion.
7 Cylinder and cylinder mounting accessories of specifications are provided
8 This series of cylinders are magnet attached.

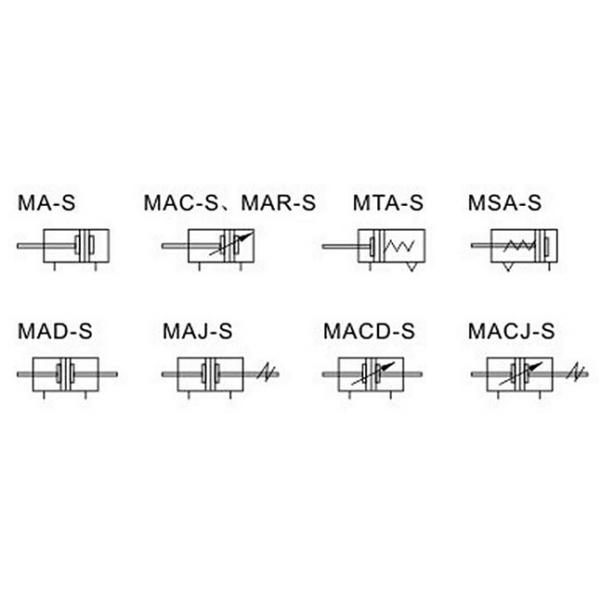

Symbol

SS304 Stainless Steel Pneumatic Air Cylinders MA MAC MSA MTA Series

Specifications:

Bore Diameter 16 20 25 32 40 50 63
Acting Type MSA MTA Single Acting
Acting Type MAR Double Acting
Acting Type MA MAD MAJ Double Acting
Acting Type MAC MACD MACJ Double Acting Cushion
Working Medium Air
Working pressure Double acting 0.1--1.0MPa (15--145PSI)
Working pressure Single acting 0.2--1.0MPa (28--145PSI)
Guranteed pressure 1.5MPa (215PSI)
Working temperature -20--70℃
Speed range mm/s Single acting: 50--800mm/s Double acting: 30--800mm/s
Cushion stroke tolerance 0--150(+1.0 -0) ＞150(+1.4 -0)
Cushion type MAC MACD MACJ
Port Size M5X0.8 PT1/8 PT1/4

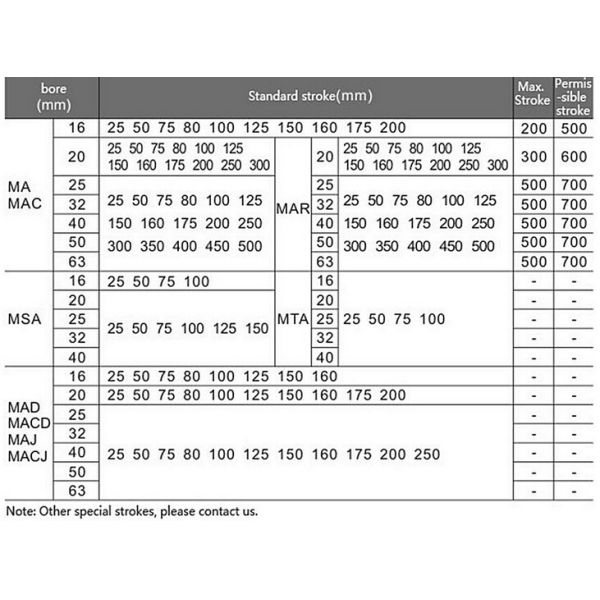

Stroke
