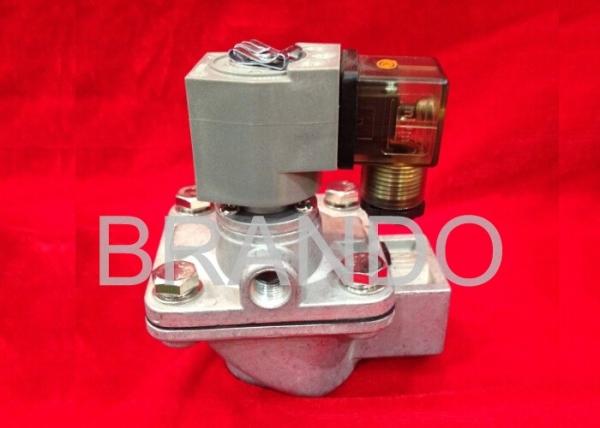

CA25T Thread Pneumatic Pulse 110V AC Solenoid Valve , 1 Inch Solenoid Valve
CA25T Thread Pneumatic Pulse 110V AC Solenoid Valve , 1 Inch Solenoid Valve
CA25T Thread Pneumatic Pulse 110V AC Solenoid Valve , 1 Inch Solenoid Valve
CA25T Thread Pneumatic Pulse 110V AC Solenoid Valve , 1 Inch Solenoid Valve
Specifications
Brand Name :
GOYEN or OEM
Model Number :
CA25T
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
PVC bag, inner box, canton, then packed by pallet
Part Name :
Goyen 1" pulse valve
Port Size :
1 inch
Material :
Aluminum, SS304, Enamelled wire
Voltage :
DC, AC all available
Working Pressure :
0.3--0.8Mpa
Working Life :
More than 1 million times
Description

CA25T Thread Pneumatic Pulse 110V AC Solenoid Valve , 1 Inch Solenoid Valve

Quick details:

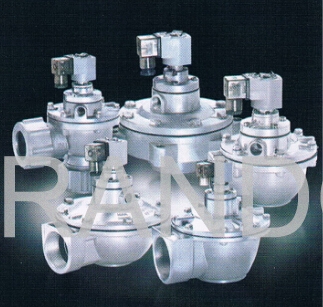

Complete range of high efficiency diaphragms pulse jet valve of 3/4", 1", 1 1/2", 2", 2 1/2", 3"

The pulse valve has been developed in order to optimize cleaning systems with quick opening and closing

times that allow to obtain high peak of pressure inside filter elements with a moderate air consumption, ensuring effectiveness and efficiency.

Port Size: 1"

Type: Z type

Connecting pipe port out diameter: 33.40mm

Model Specification:

Model Number Blowpipe Dimensions Diaphragm Flow Value
Valve outlet port size Blowpipe OD Normall temperature 82℃ High temperature 232℃ CV KV
RCAC20T3 3/4" 26.67 K2016 K2017 17 14
RCAC25T3 1" 33.40 K2529 K2530 27 24
CA/RCA35T 1 1/2" 48.26 K3500 K3501 42 36
CA/RCA45T 1 1/2" 48.26 K4502 K4503 51 44
CA/RCA50T 2" 60.32 K5004 K5000 106 91
CA/RCA62T 2 1/2" 73.02 K5004 K5000 136 117
CA/RCA76T 3" 88.90 K7600 K7601 167 144


Goyen Pulse Valve technical specifications:

Working Pressure Working medium Voltage Temperature range Air relative humidity Protection class Diaphragm working life
0.3-0.8MPa clean air 220V AC

NBR, Nitrile, -40-82℃

Viton, -29-232℃

 ≤80% IP65 More than 1 million times or more than 2 years
0.3-0.8MPa clean air 110V AC

NBR, Nitrile, -40-82℃

Viton, -29-232℃

 ≤80% IP65 More than 1 million times or more than 2 years
0.3-0.8MPa clean air 24V AC

NBR, Nitrile, -40-82℃

Viton, -29-232℃

 ≤80% IP65 More than 1 million times or more than 2 years
0.3-0.8MPa clean air 24V DC

NBR, Nitrile, -40-82℃

Viton, -29-232℃

 ≤80% IP65 More than 1 million times or more than 2 years

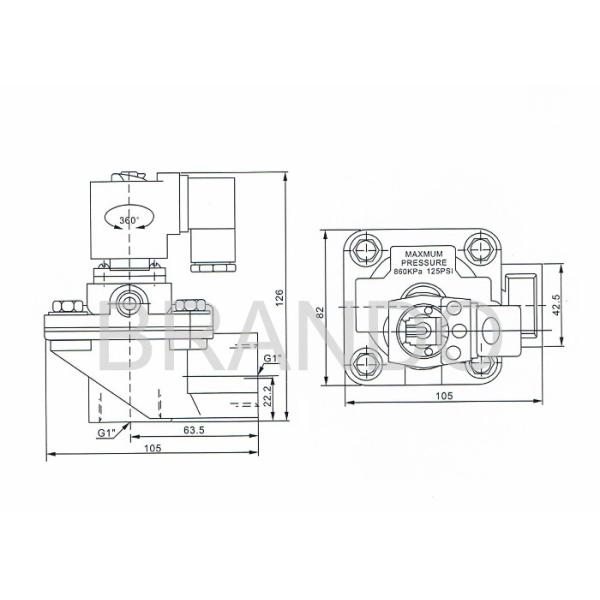

Overall Dimensions of GOYEN CA25T pulse jet valve

CA25T Thread Pneumatic Pulse 110V AC Solenoid Valve , 1 Inch Solenoid Valve

Pulse Valve Internal Structure and Main Parts:

Part Name Material
Solenoid coil high quanlity enamelled wire
Armature assembly SS304, 430FR
Small common cap ADC aluminum
Diaphragm NBR (nitrile, buna-n)
Top end cap ADC aluminum
Big spring SS304
Screws SS302
Seal NBR, Viton, all can be customized
Main body ADC aluminum

Advantages of goyen pulse valve:

1, Complete range of high efficiency diaphragms pulse jet valve of 3/4", 1", 1 1/2", 2", 2 1/2", 3"

2, suitable for all types dust collector

Welcome your enquiry, we also can OEM pulse valve as per your special demands. You can call us, or email us, we will response at once.
